Follow the steps below to mount the thermostat:

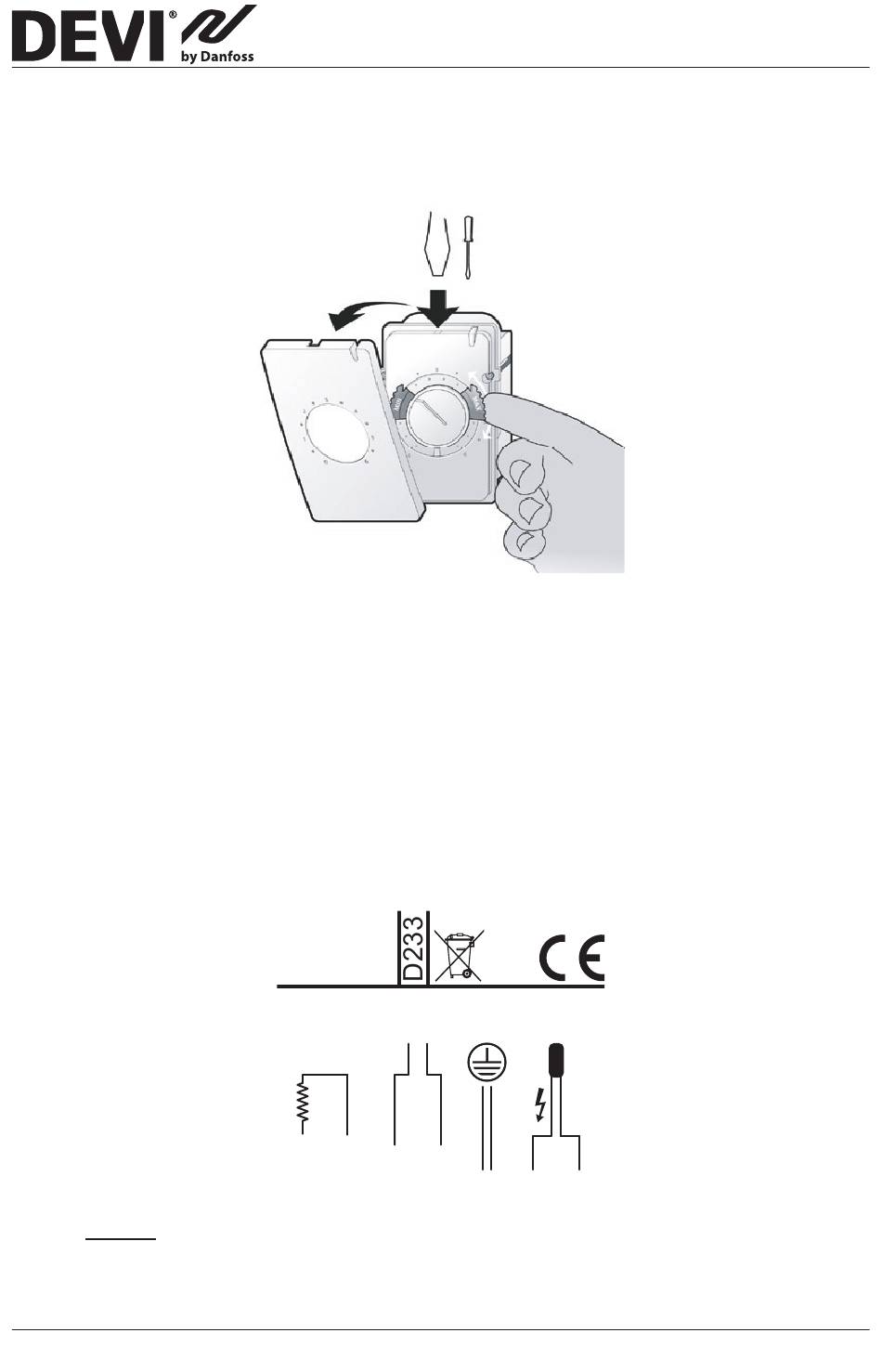

1. Open the thermostat.
• Detach the front cover by inserting a small screw-
driver in the hole on top of the thermostat and
lifting the cover outwards.
• Loosen the two screws and carefully detach the unit.
2. Connect the thermostat according to the connection
diagram.
Note: Always install the floor sensor in a conduit in the
floor.
6
Danfoss A/S
Ulvehavevej 61
7100 Vejle
Denmark
Max.
Mains
Load
220-240V~
13 (1) A
L
N
N
L
Load
IP41
0T40
Sensor
DEVIreg™ 233
Installation Guide
