ECL Comfort 210 / 296 / 310, A217 / A317
(code no. 087H3807)
A217.1 / A317.1 (ex. a):
A217.1 / A317.1 (ex. b):
© Danfoss | 2018.03
P
P
S1
ECL 210 / 296 / 310
S2
S3
M1
S5
P
P
P
P
A1
S6
S8
P1
P3
VI.LG.Y3.00 | 1
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for Danfoss ECL Comfort 210
Thermostat Danfoss ECL Comfort 210 Operating Manual
(199 pages)
Thermostat Danfoss ECL Comfort 210 Operating Manual
(161 pages)
Controller Danfoss ECL Comfort 296 Operating Manual
Application a230 (159 pages)
Controller Danfoss ECL Comfort 210 Operating Manual
Application a237/a337 (150 pages)
Thermostat Danfoss ECL Comfort 210 Installation Manual
(144 pages)
Thermostat Danfoss ECL Comfort 210 Installation Manual
(129 pages)
Thermostat Danfoss ECL Comfort 210 Installation Manual
(122 pages)
Temperature Controller Danfoss ECL Comfort 210 Operating Manual
Application (110 pages)
Controller Danfoss ECL Comfort 210 Mounting Manual
A247/a347 (24 pages)
Controller Danfoss ECL Comfort 210 Mounting Manual
A232 (24 pages)
Thermostat Danfoss ECL Comfort 210 Installation Manual
A232 / a332 (24 pages)
Controller Danfoss ECL Comfort 210 Installation Manual
(20 pages)
Temperature Controller Danfoss ECL Comfort 210 Installation Manual
(16 pages)
Control Unit Danfoss ECL Comfort 210 Installation Manual
(16 pages)
Industrial Electrical Danfoss ECL Comfort A260 Mounting Manual
(16 pages)
Temperature Controller Danfoss ECL Comfort 210 User Manual
(12 pages)
Summary of Contents for Danfoss ECL Comfort 210
Page 1

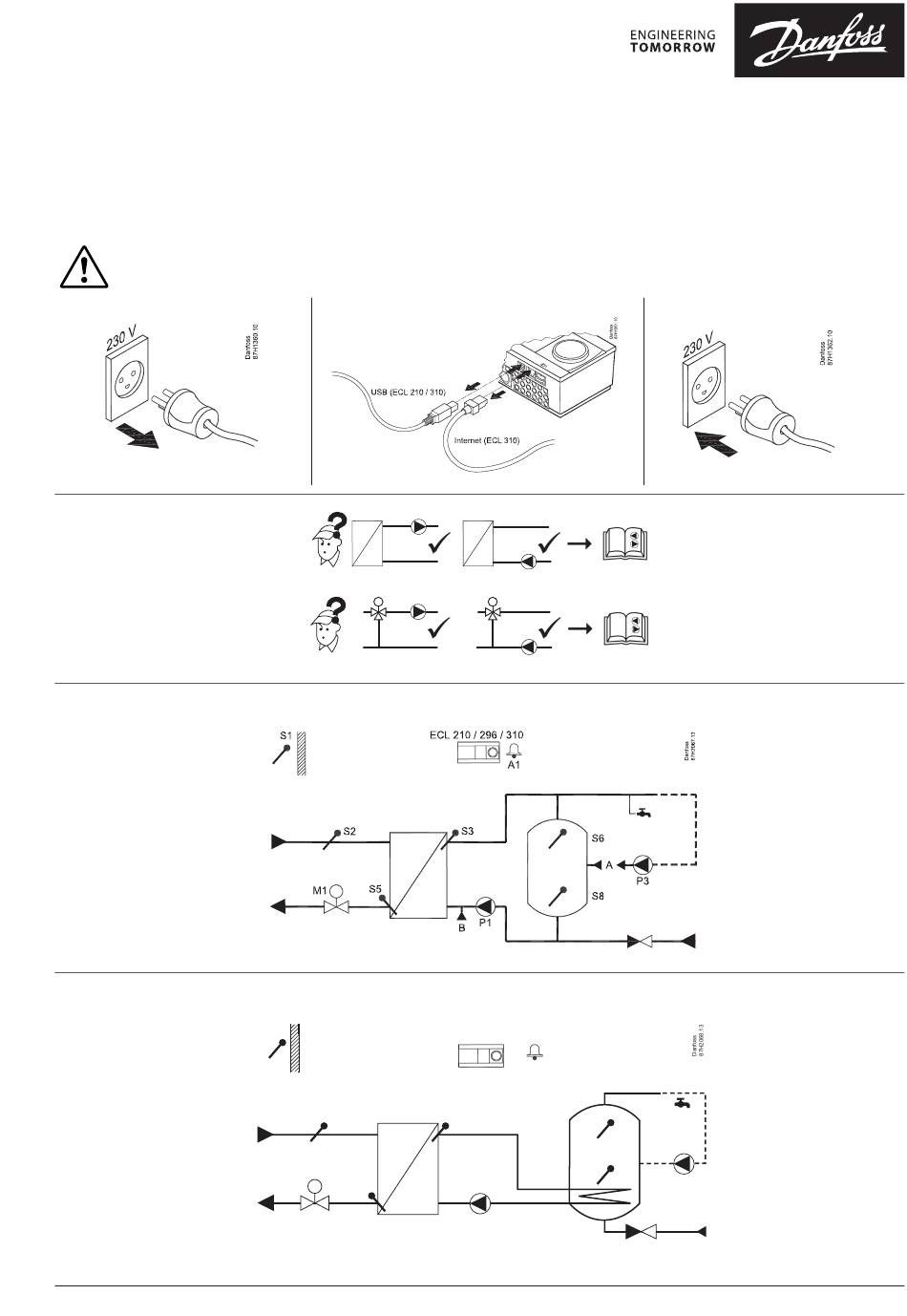

Installation Guide ECL Comfort 210 / 296 / 310, A217 / A317 (code no. 087H3807) A217.1 / A317.1 (ex. a): A217.1 / A317.1 (ex. b): ECL 210 / 296 / 310 VI.LG.Y3.00 | 1 © Danfoss | 2018.03...
