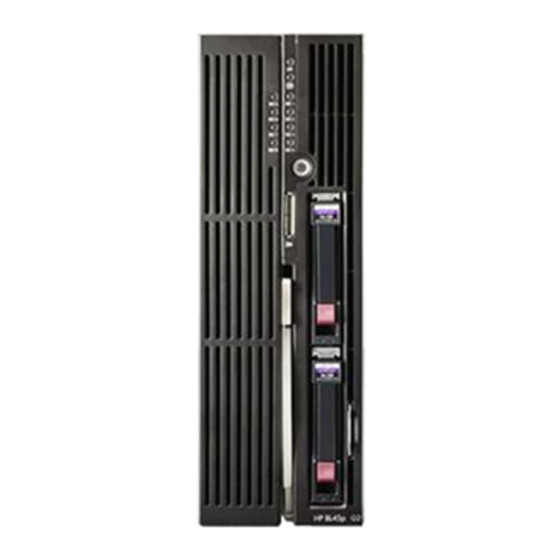

HP ProLiant BL45p Generation 2 Server Blade
User Guide
November 2006 (First Edition)
Part Number 415896-001

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant BL45p

Summary of Contents for HP ProLiant BL45p

  • Page 1 HP ProLiant BL45p Generation 2 Server Blade User Guide November 2006 (First Edition) Part Number 415896-001...
  • Page 2 © Copyright 2006 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Remove the primary access panel ....................17 Remove the secondary access panel ....................18 Setup............................19 Overview ............................... 19 Installing the HP BladeSystem components ....................19 Verifying system components ........................19 Connecting to the network ........................20 Server blade enclosure network connections ..................20 Server blade enclosure compatibility ....................
  • Page 4 HP ProLiant Essentials Intelligent Networking Pack ................56 HP ProLiant Essentials RDMA Pack for Multifunction Gigabit server adapters ......... 56 HP ProLiant Essentials Accelerated iSCSI Pack for Embedded Multifunction Gigabit server adapters ..57 Diagnostic tools ............................57 HP Insight Diagnostics ........................57 Survey Utility..........................
  • Page 5 Grounding methods to prevent electrostatic discharge .................. 85 Specifications ..........................86 Environmental specifications ........................86 Server blade specifications ........................86 Technical support........................87 Before you contact HP..........................87 HP contact information ..........................87 Customer Self Repair ..........................87 Acronyms and abbreviations......................95 Contents 5...
  • Page 6 Index............................99 Contents 6...

  • Page 7: Component Identification

    Component identification In this section Front panel LEDs ............................7 Front panel components ..........................8 Rear panel components..........................9 SAS and SATA hard drive LED combinations ....................9 System board components........................10 Internal USB connector..........................14 Local I/O cable ............................. 14 Front panel LEDs Item LED description...

  • Page 8: Front Panel Components

    Item LED description Status NIC 2* Green = Network linked Green flashing = Network activity Off = No link or activity NIC 3* Green = Network linked Green flashing = Network activity Off = No link or activity NIC 4* Green = Network linked Green flashing = Network activity Off = No link or activity...

  • Page 9: Rear Panel Components

    Item Description Power On/Standby button I/O port* Hard drive bay 1 Hard drive bay 2 * The I/O port is used with the local I/O cable to perform some server blade configuration and diagnostic procedures. Rear panel components Item Description Power connectors Signal connectors SAS and SATA hard drive LED combinations...

  • Page 10: System Board Components

    Online/activity LED Fault/UID LED Interpretation (green) (amber/blue) Do not remove the drive. Removing a drive may Flashing regularly Amber, flashing terminate the current operation and cause data loss. (1 Hz) regularly (1 Hz) The drive is part of an array that is undergoing capacity expansion or stripe migration, but a predictive failure alert has been received for this drive.

  • Page 11: Secondary System Board (Processors 2 And 4)

    Item Description FC mezzanine connectors (2) NIC mezzanine connector System maintenance switch (SW4) Processor 3 memory bank F Processor 3 memory bank E DIMM slots 9-12 Processor socket 3 (blank shown) Fan connectors (5) Front panel/LED board connector Processor socket 1 (populated) DIMM slots 1-4 Processor 1 memory bank A Processor 1 memory bank B...

  • Page 12: Dimm Slot Numbering

    Item Description Processor socket 2 (populated) Fan connectors (5) Processor socket 4 (blank shown) DIMM slots 13-16 Processor 4 memory bank G Processor 4 memory bank H System board handles (2) FC mezzanine connectors (2) I/O signal board DIMM slot numbering Primary system board DIMM slot numbering (processors 1 and 3) Item Description...

  • Page 13: System Maintenance Switch

    Secondary system board DIMM slot numbering (processors 2 and 4) Item Description Memory bank DIMM slot 5 Processor 2 memory bank C DIMM slot 6 Processor 2 memory bank C DIMM slot 7 Processor 2 memory bank D DIMM slot 8 Processor 2 memory bank D DIMM slot 16 Processor 4 memory bank H...

  • Page 14: Internal Usb Connector

    Internal USB connector For more information, see "Internal USB functionality (on page 56)." Local I/O cable Item Connector Description Local I/O For connecting to the local I/O port on the server blade front panel Video For connecting a video monitor USB 1 For connecting a USB device USB 2...
  • Page 15 Item Connector Description iLO RJ-45 For connecting an Ethernet to the server blade (10/100 Ethernet) iLO interface from a client device The local I/O cable ships with the enclosure. Component identification 15...

  • Page 16: Operations

    CAUTION: Always observe iLO 2 alerts before initiating a power-up override to prevent a hot-plug power supply fault and possible loss of system power. For more information, refer to the HP Integrated Lights-Out User Guide.

  • Page 17: Remove The Server Blade

    IMPORTANT: Remote power procedures require the most recent firmware for the power enclosure and server blade enclosure management modules. For the most recent firmware, refer to the HP website (http://www.hp.com/go/support).

  • Page 18: Remove The Secondary Access Panel

    Power down the server blade (on page 16). Remove the server blade (on page 17). Loosen the thumbscrew on the rear of the access panel. Press down on the thumb indentations, slide the access panel toward the rear of the unit about 1.25 cm (0.5 in), and lift to remove the access panel.

  • Page 19: Setup

    Installing a server blade .......................... 23 Completing the configuration........................24 Overview The server blade installation is one part of the overall installation of the HP BladeSystem p-Class solution. Perform server blade installation with the following steps: Install all required HP BladeSystem p-Class components.

  • Page 20: Connecting To The Network

    Connecting to the network To connect the HP BladeSystem to a network, each server blade enclosure must be configured with a pair of network interconnects to manage signals between the server blades and the external network. For more information about interconnect options, refer to the HP website (http://www.hp.com/go/bladesystem/interconnects).

  • Page 21: Rj-45 Patch Panel 2 Fc Connections

    Each pair of RJ-45 patch panels provides up to four network connections per server blade bay. A server blade installed in the two bays farthest to the left (from the front view) maps to eight Ethernet connectors, four connectors per bay. These connectors are located in the bottom two rows of connectors. Each consecutive server blade maps to eight Ethernet connectors in the next two rows above in a similar manner.

  • Page 22: Interconnect Switch And Fc Connections

    32 to as few as one, depending on the types of server blades in the enclosure. A variety of interconnect kits are available and all are supported by the HP ProLiant BL45p Generation 2 Server Blade. For more information, refer to the HP website (http://www.hp.com/go/bladesystem/interconnects).

  • Page 23: Installing A Server Blade

    Installing a server blade The HP ProLiant BL45p Generation 2 Server Blade occupies two bays in the server blade enclosure. Two blanks must be removed before the server blade can be installed. Remove a 6U server blade blank. Repeat for the second server blade blank.

  • Page 24: Completing The Configuration

    Complete the system configuration before installing additional server blades. Completing the configuration To complete the server blade and HP BladeSystem configuration, refer to the hardware installation and configuration poster that ships with the server blade enclosure. Setup 24...

  • Page 25: Hardware Options Installation

    Hardware options installation In this section Processor option............................. 25 Hard drive option........................... 30 Memory option ............................31 Fibre Channel mezzanine option ......................32 NIC mezzanine option..........................33 Battery-Backed Write Cache Enabler option ....................34 Processor option Observe the following processor installation guidelines: Processor socket 1 must be populated at all times or the server does not function properly.
  • Page 26 Remove the heatsink blank. Retain the blank for future use. CAUTION: The pins on the processor socket are very fragile. Any damage to them may require replacing the system board. Remove the processor socket protective cover. Retain the cover for future use. CAUTION: Failure to completely open the processor retaining latch prevents the processor from seating during installation, leading to hardware damage.
  • Page 27 Open the processor retaining latch and the processor socket retaining bracket. IMPORTANT: Be sure the processor remains inside the processor installation tool. If the processor has separated from the installation tool, carefully re-insert the processor in the tool. Align the processor installation tool with the socket and install the processor. Hardware options installation 27...
  • Page 28 CAUTION: The processor is designed to fit one way into the socket. Use the alignment guides on the processor and socket to properly align the processor with the socket. Press down firmly until the processor installation tool clicks and separates from the processor, and then remove the processor installation tool.
  • Page 29 Close the processor retaining bracket and the processor retaining latch. CAUTION: To prevent possible server malfunction or damage to the equipment, be sure to completely close the processor retaining latch. Remove the protective cover from the heatsink. CAUTION: After the cover is removed, do not touch the thermal interface media. Hardware options installation 29...

  • Page 30: Hard Drive Option

    Install the heatsink. Install the access panel. Install the server blade ("Installing a server blade" on page 23). Hard drive option The server blade supports up to two hot-plug SAS or SATA drives. CAUTION: To prevent improper cooling and thermal damage, do not operate the server blade or the enclosure unless all hard drive and device bays are populated with either a component or a blank.

  • Page 31: Memory Option

    The server blade ships with two DIMMs installed in the first memory bank for each installed processor. Each processor has two banks, and each bank consists of two DIMM slots. CAUTION: Use only HP DIMMs. DIMMs from other sources may adversely affect data integrity. DIMM guidelines...

  • Page 32: Installing Dimms

    All DIMMs must be PC5300 DDR2 667-MHz SDRAM DIMMs. • Both DIMM slots in a memory bank must be populated. • Both DIMMs in a memory bank must be identical. • Processor 1 memory bank A must always be populated. •...

  • Page 33: Nic Mezzanine Option

    Supported SAN and associated software • For more detailed SAN configuration information for the server blade, refer to: The model-specific QuickSpecs document located on the HP ProLiant p-Class server blade products • web page at the HP website (http://www.hp.com/products/servers/proliant-bl/p-class/info) The HP StorageWorks SAN documentation at the HP website •...

  • Page 34: Battery-Backed Write Cache Enabler Option

    Install the NIC mezzanine. Press down above the connector to seat the board. Install the access panel. Install the server blade ("Installing a server blade" on page 23). The procedure for installing a NIC mezzanine is identical on the primary and secondary system boards. To identify the location of the NIC connector, refer to "System board components (on page 10)."...
  • Page 35 Remove the standard cache module. Install the optional cache module. Open the battery compartment door. Hardware options installation 35...
  • Page 36 Install the battery. Connect the cable to the optional cache module. Install the access panel. Install the server blade ("Installing a server blade" on page 23). Hardware options installation 36...

  • Page 37: Cabling

    Cabling In this section Using the local I/O cable........................37 Local administration using iLO 2 ......................37 Connecting locally to a server blade with video and USB devices ..............38 Using the local I/O cable The local I/O cable enables the user to perform server blade administration, configuration, and diagnostic procedures in two ways: Connecting locally to the server blade iLO 2 interface •...

  • Page 38: Connecting Locally To A Server Blade With Video And Usb Devices

    Connect the local I/O cable to the I/O port on the server blade. CAUTION: Disconnect the local I/O cable when not in use. The port and connector do not provide a permanent connection. Rear iLO 2 connector performance degrades when the local I/O cable is connected, even if the iLO 2 connector on the cable is not in use.

  • Page 39: Accessing A Server Blade With Local Media Devices

    Connect the local I/O cable to the server blade. Connect a monitor to the video connector. Connect a USB mouse to one USB connector. Connect a USB keyboard to the second USB connector. Item Description Server blade Monitor USB mouse USB keyboard Accessing a server blade with local media devices Use the following configuration when configuring a server blade or loading software updates and...
  • Page 40 NOTE: Use a USB hub when connecting a USB diskette drive and/or USB CD-ROM drive to the server blade. The USB hub provides additional connections. Item Description Server blade Monitor USB hub USB CD-ROM drive or USB diskette drive USB keyboard USB mouse Cabling 40...

  • Page 41: Configuration And Utilities

    (http://h18002.www1.hp.com/support/files/server/us/index.html). Linux OS users can download these components from the HP website (http://www.hp.com/products/servers/linux). For information on how to use these components with a Linux OS, refer to the HP website (http://h18000.www1.hp.com/products/servers/linux/documentation.html). ProLiant p-Class Advanced management iLO 2 Advanced is a standard component of ProLiant p-Class server blades that provides server health and remote server blade manageability.

  • Page 42: Network-Based Pxe Deployment

    The IP address is assigned by a DHCP server on a network. The p-Class tab enables you to control specific settings for the HP BladeSystem. iLO 2 also provides web- based status for the HP BladeSystem configuration.
  • Page 43 1.3.1_07 1.3.1_08 1.4.1 for Windows® users only 1.4.2 for Linux users only Access the Java™ Runtime Environment versions at the HP website (http://java.sun.com/products/archive/index.html). DHCP server (IP address assignment) • AMD Athlon™ XP processor (700 MHz or greater recommended), AMD Athlon™ 64 processor, •...

  • Page 44: Static Ip Bay Configuration

    Provides easier setup with automatic iLO 2 address generation for all or a few selected bays • For detailed information about iLO configurations, refer to the HP Integrated Lights-Out User Guide on the Documentation CD or to the HP website (http://www.hp.com/servers/lights-out).
  • Page 45 It enables you to perform imaging or scripting functions and maintain software images. For more information about the RDP, refer to the HP ProLiant Essentials Rapid Deployment Pack CD or refer to the HP website (http://www.hp.com/servers/rdp).
  • Page 46 Through an existing network (out of the rack, with the diagnostic station)—For this method, power • the server blade with the diagnostic station and connect to an existing network through a hub. The DHCP server on the network assigns the IP address. Other methods for connecting to the server blade are available, but they do not provide the required network access for deployment.
  • Page 47 After the server blade boots, follow the normal network installation procedure for the OS. SAN configuration The server blade provides FC support for SAN implementations. This solution uses an optional FCA that offers redundant SAN connectivity and optimization for HP StorageWorks products. The server blade is Configuration and utilities 47...

  • Page 48: Configuration Tools

    SAN storage drivers are loaded. Refer to supporting white papers and the HP website • (http://www.hp.com/servers/rdp). For SAN configuration information for the server blade, refer to the HP StorageWorks SAN Design Reference Guide on the HP website (http://h18000.www1.hp.com/products/storageworks/san/documentation.html). Configuration tools...

  • Page 49: Hp Rom-Based Setup Utility

    • Language selection • For more information on RBSU, refer to the HP ROM-Based Setup Utility User Guide on the Documentation CD or the HP website (http://www.hp.com/servers/smartstart). Using RBSU The first time you power up the server blade, the system prompts you to enter RBSU and select a language.

  • Page 50: Array Configuration Utility

    RBSU by pressing the F9 key when prompted. After the settings are selected, exit RBSU and allow the server to reboot automatically. For more information, refer to the HP ROM-Based Setup Utility User Guide on the Documentation CD or the HP website (http://www.hp.com/servers/smartstart).

  • Page 51: Hp Proliant Essentials Rapid Deployment Pack

    ASR increases server availability by restarting the server within a specified time after a system hang or shutdown. At the same time, the HP SIM console notifies you by sending a message to a designated pager number that ASR has restarted the system. You can disable ASR from the HP SIM console or through RBSU.

  • Page 52: Rompaq Utility

    The iLO Select Pack allows administrators to enable full Lights-Out functionality for selected HP ProLiant server blade environments. iLO Select Pack complements iLO 2 Standard Blade Edition by enhancing the Lights-Out capabilities of HP ProLiant p-Class and c-Class server blade with additional virtual media, security, and power management features.

  • Page 53: Storageworks Library And Tape Tools

    HP SIM provides device management capabilities that consolidate and integrate management data from HP and third-party devices. IMPORTANT: You must install and use HP SIM to benefit from the Pre-Failure Warranty for processors, SAS and SCSI hard drives, and memory modules.

  • Page 54: Hp Proliant Essentials Server Migration Pack - Physical To Proliant Edition

    (desired state) of patches. The Vulnerability and Patch Management Pack and HP SIM can be installed on a single server (referred to as a shared configuration) or on a separate server (referred to as a distributed configuration).

  • Page 55: Hp Proliant Essentials Workload Management Pack

    HP Control Tower is an all-in-one software package that provides management and deployment for HP BladeSystem and its ProLiant BL p-Class server blades. Built on Linux, it delivers an easy-to-use interface tailored to blades and optimized for Linux users. HP Control Tower enables operating system deployment using both standard installation and image-based technologies.

  • Page 56: Usb Support

    ROM. USB support HP provides both standard USB support and legacy USB support. Standard support is provided by the OS through the appropriate USB device drivers. Before the OS loads, HP provides support for USB devices through legacy USB support, which is enabled by default in the system ROM. HP hardware supports USB version 1.1 or 2.0, depending on the version of the hardware.

  • Page 57: Hp Proliant Essentials Accelerated Iscsi Pack For Embedded Multifunction Gigabit Server Adapters

    Diagnostic tools HP Insight Diagnostics HP Insight Diagnostics is a proactive server blade management tool, available in both offline and online versions, that provides diagnostics and troubleshooting capabilities to assist IT administrators who verify server blade installations, troubleshoot problems, and perform repair validation.

  • Page 58: Array Diagnostic Utility

    For more information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack. Array Diagnostic Utility The HP Array Diagnostics Utility is a web-based application that creates a report of all HP storage controllers and disk drives. This report provides vital information to assist in identifying faults or conditions that may require attention.

  • Page 59: Keeping The System Current

    IMPORTANT: Always perform a backup before installing or updating device drivers. Resource Paqs Resource Paqs are operating system-specific packages of tools, utilities, and information for HP servers running certain Microsoft® or Novell operating systems. The Resource Paqs include utilities to monitor performance, software drivers, customer support information, and white papers on the latest server integration information.

  • Page 60: Change Control And Proactive Notification

    (http://h18000.www1.hp.com/support/files/index.html). Change control and proactive notification HP offers Change Control and Proactive Notification to notify customers 30 to 60 days in advance of upcoming hardware and software changes on HP commercial products. For more information, refer to the HP website (http://h18023.www1.hp.com/solutions/pcsolutions/pcn.html).

  • Page 61: Troubleshooting

    To obtain the guide, refer to any of the following sources and then select the HP ProLiant Servers Troubleshooting Guide: The server-specific Documentation CD •...

  • Page 62: Important Safety Information

    WARNING: To reduce the risk of injury from electric shock, remove all power cords to completely disconnect power from the system. Warnings and cautions WARNING: Only authorized technicians trained by HP should attempt to repair this equipment. All troubleshooting and repair procedures are detailed to allow only Troubleshooting 62...

  • Page 63: Symptom Information

    subassembly/module-level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard. WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that: The leveling feet are extended to the floor.

  • Page 64: Prepare The Server For Diagnosis

    NOTE: To verify the server configuration, connect to the System Management homepage and select Version Control Agent. The VCA gives you a list of names and versions of all installed HP drivers, Management Agents, and utilities, and whether they are up to date.

  • Page 65: Troubleshooting Flowcharts

    Troubleshooting flowcharts To effectively troubleshoot a problem, HP recommends that you start with the first flowchart in this section, "Start diagnosis flowchart (on page 65)," and follow the appropriate diagnostic path. If the other flowcharts do not provide a troubleshooting solution, follow the diagnostic steps in "General diagnosis...

  • Page 66: General Diagnosis Flowchart

    General diagnosis flowchart The General diagnosis flowchart provides a generic approach to troubleshooting. If you are unsure of the problem, or if the other flowcharts do not fix the problem, use the following flowchart. Item "Symptom information (on page 63)" "Loose connections (on page 64)"...
  • Page 67 • (http://h18023.www1.hp.com/support/files/server/us/romflash.h tml) "General memory problems are occurring" in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support) • Maintenance and service guides for p-Class server blades, located on the Documentation CD or the HP website (http://www.hp.com/products/servers/proliant-bl/p-class/info)

  • Page 68: Server Blade Power-On Problems Flowchart

    Server blade power-on problems flowchart Symptoms: The server does not power on. • The system power LED is off or amber. • The health LED is red or amber. • Troubleshooting 68...
  • Page 69 "General diagnosis flowchart (on page 66)" "Loose connections (on page 64)" Power Calculator on the HP website (http://www.hp.com/go/bladesystem/powercalculator) HP BladeSystem Maintenance and Service Guide located on the HP website (http://www.hp.com/products/servers/proliant-bl/p-class/info) Integrated Lights-Out User Guide located on the HP website (http://www.hp.com/products/servers/proliant-bl/p-class/info) Server maintenance and service guide located on the HP website (http://www.hp.com/products/servers/proliant-bl/p-class/info)

  • Page 70: Post Problems Flowchart

    POST problems flowchart Symptoms: Server does not complete POST • NOTE: The server has completed POST when the system attempts to access the boot device. Server completes POST with errors • Troubleshooting 70...
  • Page 71 CD or the HP website (http://www.hp.com/products/servers/proliant- bl/p-class/info) "Port 85 and iLO messages" in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support) "General memory problems are occurring" in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support)

  • Page 72: Os Boot Problems Flowchart

    OS boot problems flowchart Symptoms: Server does not boot a previously installed OS • Server does not boot SmartStart • Possible causes: Corrupted OS • Hard drive subsystem problem • Troubleshooting 72...
  • Page 73 Guide located on the Documentation CD or on the HP website (http://www.hp.com/support) Controller documentation • "HP Insight Diagnostics (on page 57)" or in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support) •...

  • Page 74: Server Fault Indications Flowchart

    Server fault indications flowchart Symptoms: Server boots, but a fault event is reported by Insight Management Agents (on page 53) • Server boots, but the internal health LED, external health LED, or component health LED is red or • amber NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.
  • Page 75 (http://www.hp.com/products/servers/proliant-bl/p-class/info) • "HP contact information (on page 87)" "HP Insight Diagnostics (on page 57)" or in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support) "Hardware problems" in the HP ProLiant Servers Troubleshooting •...

  • Page 76: Post Error Messages And Beep Codes

    POST error messages and beep codes Introduction For a complete listing of error messages, refer to the "POST error messages" in the HP ProLiant Servers Troubleshooting Guide located on the Documentation CD or on the HP website (http://www.hp.com/support). Troubleshooting 76...
  • Page 77 WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary information in the server documentation before removing, replacing, reseating, or modifying system components. Troubleshooting 77...

  • Page 78: Battery Replacement

    Battery replacement If the server blade no longer automatically displays the correct date and time, you may need to replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years. WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack.

  • Page 79: Regulatory Compliance Notices

    Regulatory compliance notices In this section Regulatory compliance identification numbers ................... 79 Federal Communications Commission notice ..................... 79 Declaration of conformity for products marked with the FCC logo, United States only........80 Modifications............................81 Cables ..............................81 Canadian notice (Avis Canadien) ......................81 European Union regulatory notice ......................

  • Page 80: Class A Equipment

    Hewlett-Packard Company • P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded • or monitored.) For questions regarding this FCC declaration, contact us by mail or telephone: Hewlett-Packard Company •...

  • Page 81: Modifications

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

  • Page 82: Disposal Of Waste Equipment By Users In Private Households In The European Union

    Disposal of waste equipment by users in private households in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 83: Korean Notice

    Do not operate controls, make adjustments, or perform procedures to the laser device • other than those specified herein. Allow only HP Authorized Service technicians to repair the unit. • The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976.

  • Page 84: Taiwan Battery Recycling Notice

    Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, please use the public collection system or return them to HP, an authorized HP Partner, or their agents.

  • Page 85: Electrostatic Discharge

    Electrostatic discharge In this section Preventing electrostatic discharge......................85 Grounding methods to prevent electrostatic discharge ................85 Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.

  • Page 86: Specifications

    Specifications In this section Environmental specifications ........................86 Server blade specifications........................86 Environmental specifications Specification Value Temperature range* Operating 10°C to 35°C (50°F to 95°F) Shipping -40°C to 60°C (-40°F to 140°F) Storage -20°C to 60°C (-4 to 140°C) Maximum wet bulb temperature 30°C (86°F) Relative humidity (noncondensing)**...

  • Page 87: Technical Support

    If during the diagnosis period HP (or HP service providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts: Technical support 87...
  • Page 88 HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days.
  • Page 89 La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di HP. Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare.
  • Page 90 Si no enviara el componente defectuoso requerido, HP podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.
  • Page 91 Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas • para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 92 HP para que um técnico o ajude por telefone. A HP especifica nos materiais fornecidos com a peça CSR de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for necessário, é preciso enviar a peça com defeito à HP dentro do período determinado, normalmente cinco (5) dias úteis.
  • Page 93 Technical support 93...
  • Page 94 Technical support 94...

  • Page 95: Acronyms And Abbreviations

    Acronyms and abbreviations ABEND abnormal end Array Configuration Utility Array Diagnostics Utility Automatic Server Recovery BBWC battery-backed write cache BIOS Basic Input/Output System double data rate electrostatic discharge Fibre Channel input/output International Electrotechnical Commission iLO 2 Integrated Lights-Out 2 Acronyms and abbreviations 95...
  • Page 96 Integrated Management Log Intelligent Networking Pack Internet Protocol iSCSI Internet Small Computer System Interface ISEE Instant Support Enterprise Edition keyboard, video, and mouse light-emitting diode network interface controller ORCA Option ROM Configuration for Arrays OSEM Open Services Event Manager Performance Management Pack POST Power-On Self Test ProLiant Support Pack...
  • Page 97 RAID redundant array of inexpensive (or independent) disks RBSU ROM-Based Setup Utility RDMA Remote Direct Memory Access Rapid Deployment Pack read-only memory storage area network serial attached SCSI SATA serial ATA small form-factor small form-factor pluggable Systems Insight Manager secure management protocol SMTP Simple Mail Transfer Protocol SNMP...
  • Page 98 unit identification universal serial bus Version Control Agent WEBES Web-Based Enterprise Service Workload Management Pack Acronyms and abbreviations 98...
  • Page 99 Altiris Deployment Solution 51 connection problems 64 Altiris eXpress Deployment Server 51 connectors 7, 9 Array Configuration Utility (ACU) 50 contacting HP 87 Array Diagnostic Utility (ADU) 58 creating a disk image 51 ASR (Automatic Server Recovery) 51 CSR (customer self repair) 87...
  • Page 100 HP ProLiant Essentials RDMA Pack for Embedded maintenance 59 Multifunction Gigabit server adapters 56 Management Agents 53 HP ProLiant Essentials Server Migration Pack 53, 54 management tools 41, 51 HP ProLiant Essentials Virtual Machine Management memory, mirrored 50 Pack 53...
  • Page 101 options installation 25 serial number 51 ORCA (Option ROM Configuration for Arrays) 50 series number 79 OS boot problems flowchart 72 server blade enclosure 20 server fault indications flowchart 74 Server Migration Pack 53, 54 service notifications 64 Performance Management Pack (PMP) 54 signal connector 9 phone numbers 87 SmartStart autorun menu 48...
  • Page 102 warnings 62 Web-Based Enterprise Service 58 Index 102...
