Summary of Contents for Pico Macom TA-36
- Page 1 TA-36 31-36dB Adjustable Sloped UHF-VHF-FM Distribution Amplifier Installation and Operation Manual Operation www.picodigital.com Ph: 800-421-6511 Manual Rev. 04/13...
- Page 2 To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any ques- tions or comments about the TA-36 31-36dB Adjustable Sloped UHF-VHF-FM Distribution Amplifer, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511.
- Page 3 Safeguards TA-36 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
- Page 4 Max. Output Level 7 VHF 20 dBmV 51 dBmV 4 UHF 20 dBmV 56 dBmV 12 VHF 11 dBmV 42 dBmV 7 UHF 11 dBmV 37 dBmV Ordering Information TA-36 - 31-36dB Adjustable Sloped UHF-VHF-FM Distribution Amplifier www.picodigital.com Ph: 800-421-6511 Rev. 04/13...
-
Page 5: Specifications
Specifications TA-36 31-36dB Adjustable Sloped UHF-VHF-FM Distribution Amplifier Gain/Frequency Response 1: T ransmission Log Mag 10.0 dB/ Ref. 20.00 dB Start 76.000 MHz Stop 116.000 MHz 1: Mkr (MHz) dB (TYP.) 80.00 30.48 88.00 -7.27 96.00 -5.84 108.00 31.76 120.00 31.11... -
Page 6: Operation And Controls

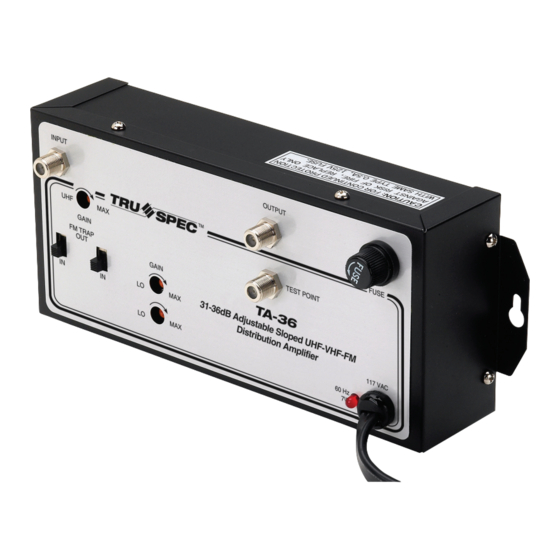

Operation and Controls TA-36 Front Panel Input: Connect input cable to this port. Output: Connect this port to the distribution system. FM Trap: This switch provides –20dB FM attenuation from 88 to 96 MHz. FM Trap: This switch provides –20dB FM attenuation from 95 to 108 MHz. -
Page 7: Installation Procedure
Installation Procedure TA-36 Installation VHF/IUHF ANTENNA GROUND BLOCK TO DISTRIBUTION SYSTEM (SPLITTERS AND TAPS) CAUTION: DO NOT EXCEED RECOMMENDED INPUT POWER RA TING. www.picodigital.com Ph: 800-421-6511 Rev. 04/13... -
Page 8: Warranty
Pico Macom warrants to the original purchaser a full 1-year warranty for loss or damage within 3 days of delivery, while claims for erroneous period on all new products. Pico Macom will repair or, at its discretion, charges or price corrections must be presented within 30 days of invoice replace without cost to the original purchaser, the product which, upon date.
