DESCRIPTION

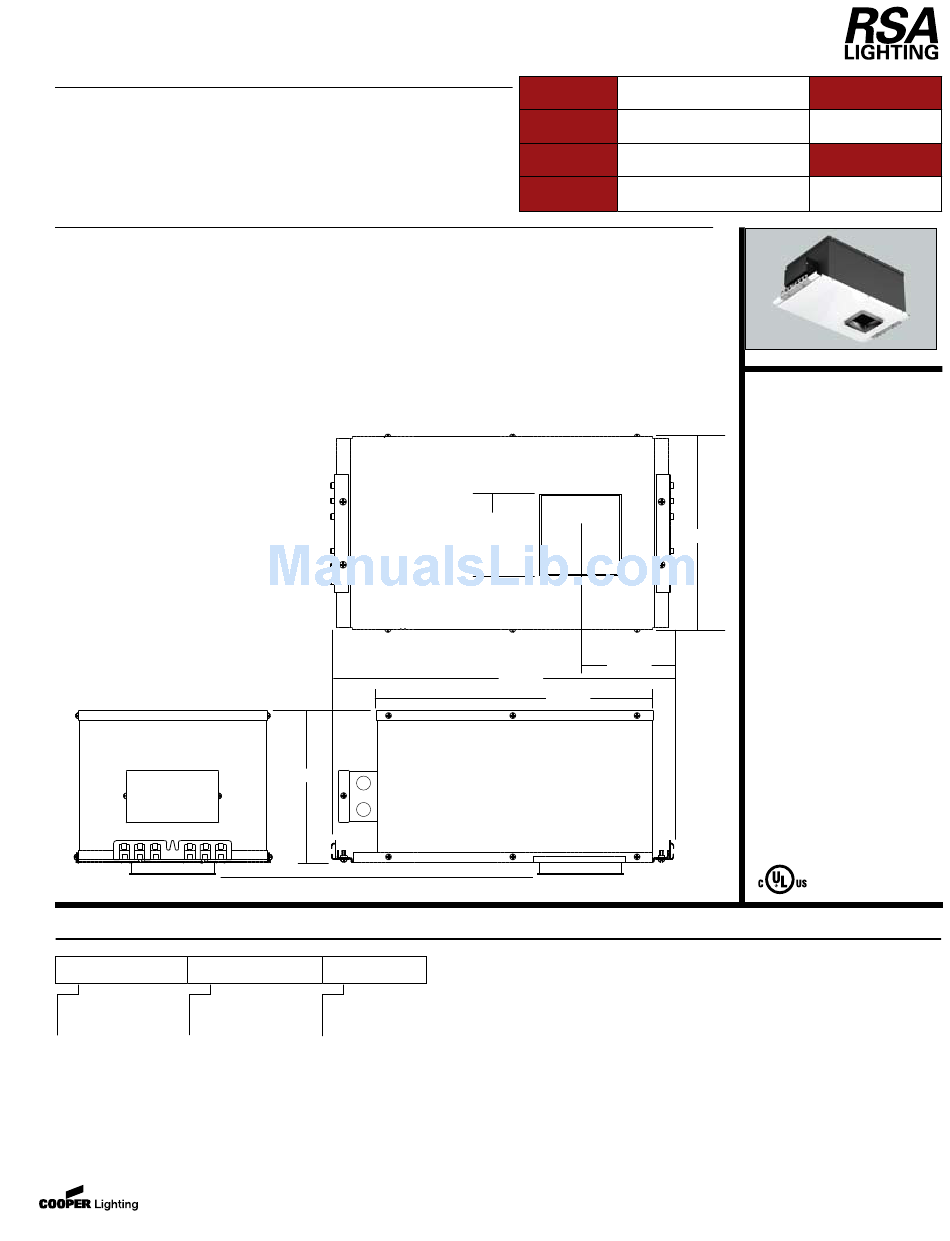

New construction I.C. housing for Mini Accurus small aperture square
trims. (ACM5101, ACM5102, ACM5103, ACM5104).
For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1" ceiling thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes seven 1/2 trade
size knockouts.
D ...Lamp
12V MR16 50 watts max.
(not included)
"POSI-GRIP" bi-pin lamp socket for firm,
mechanical lamp connection.
E ...Mounting
Hanger Bars included.
Ceiling Cut-Out: 3.63" sq.
ORDERING INFORMATION
ACM512IC
Housing
Transformer
ACM512IC =
ELC
=
Mini Accurus
MAG
I.C. Housing
for Square Trim
w/ Integral Transformer
www.cooperlighting.com
7.63"
0.5" - 1.0"
Voltage
Electronic
120
=
120 volts primary
Magnetic
277
=
=
277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling
Cut-Out
3.63"sq.
5.00"
17.50"
14.25"
Type
Date
ACCURUS
ACM512IC
Insulated Ceiling
I.C. Housing
10.00"
for Square Trim
FOR 12V MR16 50 watts max.
rev. 091806
MINI
Air Tite
