DESCRIPTION
New construction I.C. housing for Mini Accurus small aperture round
trims. (ACM5001, ACM5002, ACM5003, ACM5004).
For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1" ceiling thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
C ...Electrical
Integral j-box and metal halide ballast.
120V input. Junction box is U.L. listed for
through branch wiring. Includes seven
1/2 trade size knockouts.
D ...Lamp
CMH MR16 20W or 39W
(not included).
Internal rotation ring with locking
adjustment. Provides 360º rotation of trim
and secures original trim position after
relamping. GX10 twist-lock lamp socket.
E ...Mounting
Hanger Bars included.
Ceiling Cut-Out: 3.63" dia.
ORDERING INFORMATION
ACM502ICMH
Metal Halide Ballast
Housing
ACM502ICMH =
20
=
Mini Accurus
39
CMH MR16 39W
=
I.C. Housing
for Round Trim
w/ Integral Ballast
www.cooperlighting.com
7.63"
0.5" - 1.0"
Voltage
CMH MR16 20W
120
=
120 volts primary
277
=
277 volts primary*
* Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by

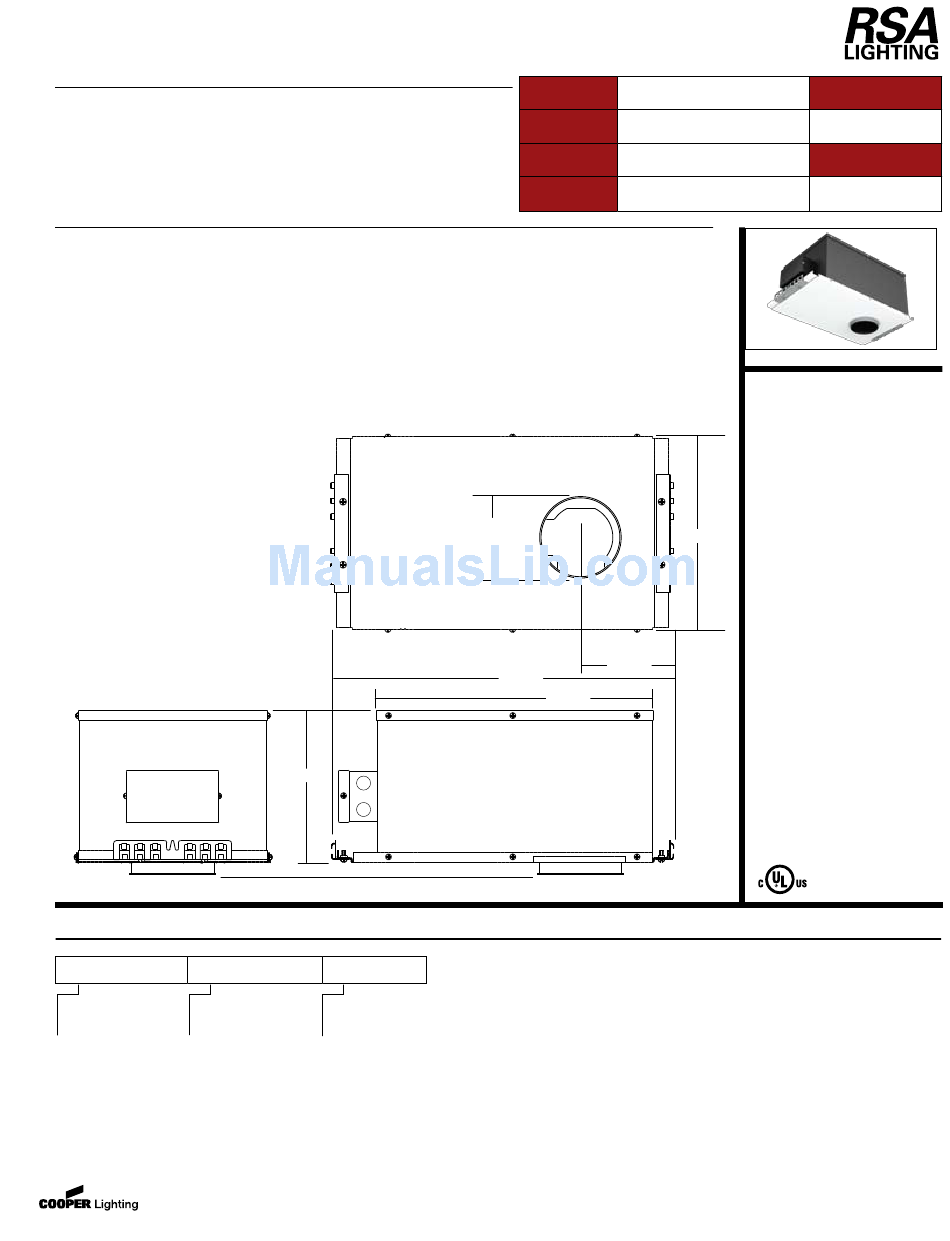

Ceiling
Cut-Out
3.63"dia.
5.00"
17.50"
14.25"
Type
Date
ACCURUS
ACM502ICMH
Insulated Ceiling
I.C. Housing
10.00"
for Round Trim
FOR CMH MR16 20W or 39W
MINI
Air Tite
rev. 091806
