DESCRIPTION

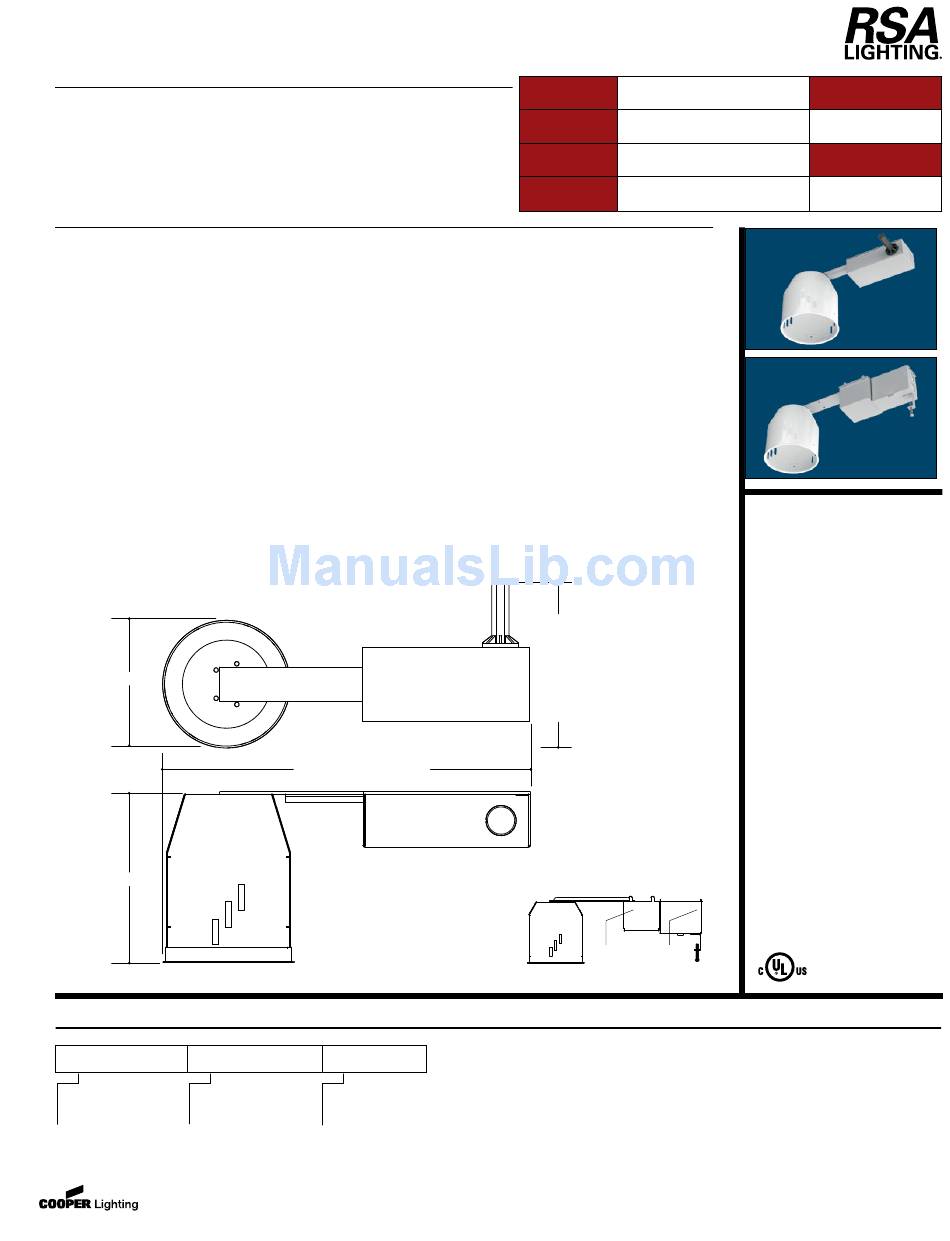

Remodel housing for Mini Accurus small aperture Round trimless fixtures.
(ACM5001, ACM5002, ACM5003, ACM5004).
For non-I.C. remodel applications. Fixture is installed after the ceiling.
Insulation must be kept 3" from all sides and at least 1" above the
housing.
SPECIFICATION FEATURES
A ...Housing
Constructed of 18 gauge CRS with white
powder coated finish.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes four 1/2 trade
size knockouts.
3.81" dia.
5.00"
ORDERING INFORMATION
ACM504RM
__
Housing
Transformer
ACM504RM =
ELC
=
Mini Accurus
MAG
Remodel Housing
for Round Trim
w/Integral Transformer
www.cooperlighting.com
D ...Lamp
12V MR16 50 watts max.
"POSI-GRIP" bi-pin lamp socket for firm,
mechanical lamp connection.
E ...Mounting
Housing is secured with three snap-in
retaining brackets. Clip mounting slots in
the housing accommodate 1/2", 1", and
1-1/2" ceiling thickness.
Ceiling Cut-Out: 3.68" dia.
J-box with integral
10.75" elc. 14.06" mag.
__
Voltage
Electronic
120
=
120 volts primary (standard)
Magnetic
277
=
=
277 volts primary (available)
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
(not included)
4.30"
width elc.
only
Mag.
electronic
width
transformer
same as
housing
Magnetic transformer
configuration shown
Xfmr.
Remodel Housing
for Round Trim
FOR 12V MR16 50 watts max.
below
J-box
Type
Date
MINI
ACCURUS
ACM504RM
rev. 031407
