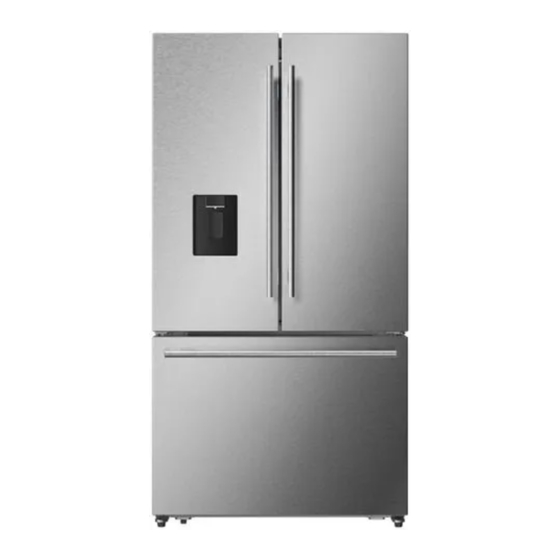

Crosley CFDN2216AS User's Operation Manual
  1. Manuals
  2. Brands
  3. Crosley Manuals
  4. Refrigerator
  5. CFDN2216AS
  6. User's operation manual

Crosley CFDN2216AS User's Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
CFDN2216AS
English
For questions about features, operation/performance, parts or service,call:1-800-356-5268

Advertisement

Table of Contents
loading

Related Manuals for Crosley CFDN2216AS

Summary of Contents for Crosley CFDN2216AS

  • Page 1 USER’S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference. CFDN2216AS English For questions about features, operation/performance, parts or service,call:1-800-356-5268...

  • Page 2: Table Of Contents

    Contents Brief Introduction ............................... 01 Important safety instructions .......................... 03 Installing your new appliance ......................... 07 Description of the appliance ........................... 20 Display controls ................................21 Using your appliance ............................24 Cleaning and care ..............................29 Helpful hints and tips .............................. 31 Troubleshooting ................................

  • Page 3: Brief Introduction

    Brief introduction Thank you for choosing our appliance. We are sure you will find your new refrigerator a pleasure to use. Before you use the appliance, we recommend that you carefully read through these instructions, which provide details about installing and using the product. Note Please ensure that everyone using this appliance is familiar with its operation and safety features.
  • Page 4 Brief introduction Warning Connect to potable water supply only. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

  • Page 5: Important Safety Instructions

    Important safety instructions General safety and daily use It is important to use your appliance safely. We recommend that you follow the guidelines below. Store any food in accordance with the storage instructions from the manufacturer. Don't try to repair the appliance yourself. It is dangerous to alter the specifications or modify this product in any way.
  • Page 6 Important safety instructions Electrical safety To avoid the risks that are always present when using an electric appliance, we recommend that you pay attention to the instructions about electricity below. Unpack and check through the appliance. Should any damage be evident, don't plug in the appliance but contact the shop immediately from which you purchased it.
  • Page 7 Important safety instructions Electrical safety Make sure that the plug is not squashed or damaged. Otherwise, it may cause short circuit, electric shock or overheat and even cause a fire. Do not insert the power plug if the socket is loose, there is a risk of electric shock or fire.
  • Page 8 Important safety instructions Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged. The refrigerant (R600a) is flammable. Caution: Risk of Fire Don't store products which contain flammable propellants (e.g.

  • Page 9: Installing Your New Appliance

    Installing your new appliance Before using the appliance for the first Ventilation of appliance time, you should be aware of the following tips. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain Warning good ventilation around the appliance for the dissipation of...
  • Page 10 Installing your new appliance Ambient temperature Climate class +50°F to +90°F +61°F to +90°F +61°F to +100°F +61°F to +109°F Stand your appliance in a dry place to avoid high moisture damage. Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.
  • Page 11 Installing your new appliance Adjustable bottom feet Installing the handles Before you use the appliance, you have to install the handles Handles and set screws are provided in refrigerator. Please follow procedures below to install and reverse the handle. Tools you will need(Provided in bag)： Allen Wrench (1/8",3mm) Screws Door Removal...
  • Page 12 Installing your new appliance Tools you will need(Not provided)： Connector Allen Wrench (5/32",4mm) Wrench (5/16",8mm) Clip Philips Screwdriver 1. With the door closed, remove the 3 screws holding the top cover with Water line Philips (+) screwdriver, and then remove the top cover with the entire harness attached.
  • Page 13 Installing your new appliance Disassembling the freezer door 4. Use both hands to open the door more than 90°. Lift it up and take it 1. Pull out the freezer door, the off. upper and middle tray to the final position.
  • Page 14 Installing your new appliance 5. Remove the lower freezer drawer 3. Take out the upper freezer drawer by lifting it up. by lifting it up from the rail system. Upper freezer Lower freezer drawer drawer 6. Remove 2 screws holding the 4.
  • Page 15 Installing your new appliance 7. Remove the freezer door by lifting 2. Install the 4 screws fixing the it up drawer supports. Freezer door Support To reattach the drawer after you Screws moved the appliance to its final location, assemble the parts in reverse order.
  • Page 16 Installing your new appliance 4. Put the middle tray on the 6. Put back the ice storage box (if support. equipped). Ice storage box Middle tray 5. Put back the upper freezer drawer 7 Pull back the freezer door. by lifting it up from the rail system. Upper freezer drawer...
  • Page 17 Installing your new appliance 3. Install the upper hinge screws with 1. Install and tighten the middle a wrench. Use a Phillips screwdriver hinge. to tighten the screws and upper hinge. Screws Door hinge Hex head Ground bolts hinge screw Upper door hinge 2.
  • Page 18 Installing your new appliance 5. Install the top cover.Each wire Warning should be correctly placed in each buckle position The water connection must be Top cover made by a qualified plumber. Operation outside the water pressure range may cause malfunction, severe and damaging water leaks.
  • Page 19 Installing your new appliance 3. Connect 1/4’’ extension tubing to 4. You need to purchase several item shutoff valve outlet. to complete this connection. You may find these items sold as a kit at local hardware store Connecting to the water supply line Saddle-Type Shutoff Valve Compression Nut...
  • Page 20 Installing your new appliance Note Note Ensure that the water line does After connected to the water not get pinched or bent when supply line, please open the water installing. valve to flush the filter for 5 minutes before use. The initial dark This can result in improper water discoloration of water is normal.
  • Page 21 Installing your new appliance Connect Water Line to Refrigerator 6. Slide the 1/4" compression nut over the ferrule (sleeve) and screw the 1/4" IMPROTANT: If you turn the refrigerator compression nut onto the brass ftting. on before the water is connected, turn off the ice maker.

  • Page 22: Description Of The Appliance

    Description of the appliance Door bin Vertical baffle part Water dispenser (behind) Fruit and vegetables crisper Multi-function drawer Freezer LED light Middle tray Lower freezer drawer Adjustable bottom feet Top cover Vertical baffle guide block Water filter Display board Glass shelf Wind channel Refrigerator LED light (both sides) Crisper cover...

  • Page 23: Display Controls

    Display controls Your product has one control panel which is installed on the fridge door. Use your appliance according to the following control guidelines. Setting Compartment Temperatures When you set a temperature, you are setting an average temperature for If you have set the temperature type the entire compartment.
  • Page 24 Display controls If you have set the temperature type 2. Super Cool will automatically turn off after 3 hours. to °C , the temperature setting cycle 3. When Super Cool function is on you from -14°C to -24°C. can turn it off by pressing the "MODE"...
  • Page 25 Display controls Press the "ICE" button to turn the ice Note maker on or off. When the ice maker is turned on, the " "icon lights. When you selecting the Super To use ice, open the freezer Freeze function, ensure there are compartment door, then pull open no bottled or canned the freezer tray and get the ice.

  • Page 26: Using Your Appliance

    Display controls When the filter state reaches 10%, the icon " " will flash. The user needs to replace the filter and long press the To switch off demo mode, press and ICE Button for 3 seconds to reset the hold "POWER"...
  • Page 27 Using your appliance Water clouding phenomenon 2. Turn the water filter about 1/4 turn, counter-clockwise. Then pull All water provided to the refrigerator the water filter from the filter holder. flows through an alkaline water filter. In the filtering process, the pressure of the water that has flowed out of the filter is increased, and the water becomes saturated with oxygen and...
  • Page 28 Using your appliance 3.Insert the new filter into the filter 1. After the water filter is replaced, holder. dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. 2. Additional flushing may be required in some households.
  • Page 29 Using your appliance Reverse osmosis water supply Caution The pressure of the water supply coming out of a reverse osmosis Never close the refrigerator door system going to the water inlet valve of while the shelves, crisper and/or the refrigerator needs to be between telescopic slides are extended.
  • Page 30 Using your appliance Ice Maker in Freezer If the water line is connected, set the ice maker power switch to the ON position. The ice maker will not begin to the operate until it reaches its operating temperature of 15°F(-9°C) or below. It will then begin operation To re-install the glass shelves, tilt the automatically if the ice maker power...

  • Page 31: Cleaning And Care

    Cleaning and care For hygienic reasons the appliance Caution (including exterior and interior accessories) should be cleaned at Don’t use sharp objects to clean least every two months. with, as they are likely to scratch the surface. Warning Don’t use thinner, car cleaner, bleach, oil, abrasive cleansers or organic solvent such as benzene To avoid electrical shock, the...
  • Page 32 Cleaning and care Door seals cleaning Although this appliance automatically defrosts, a layer of frost Take care to keep door seals clean. may occur on the freezer Sticky food and drinks can cause seals compartment’s interior walls if the to stick to the cabinet and tear when freezer door is opened frequently or you open the door.

  • Page 33: Helpful Hints And Tips

    Helpful hints and tips Energy saving tips Hints for refrigeration We recommend that you follow the For Meat: (all types) wrap in cling tips to save energy. wrap and place on the glass shelf Try to avoid keeping the door open above the vegetable drawer.

  • Page 34: Troubleshooting

    Helpful hints and tips Do not allow unfrozen food to touch Once defrosted, food will deteriorate the food which is already frozen to rapidly and should not be re-frozen. avoid temperature rise of the latter. Do not exceed the storage period Iced products (ice cubes, popsicles): indicated by the food manufacturer.
  • Page 35 Troubleshooting Danger Risk of child entrapment. Before you throw away your old refrigerator or freezer: -Take off the doors. -Leave the shelves in place so that children may not easily climb inside. Problem Possible Cause & Solution Check whether the power cord is plugged into the power outlet properly.
  • Page 36 Troubleshooting Problem Possible Cause & Solution Other unusual noises are due to the reasons below and may need you to check and take action: Noise from the The cabinet is not level. appliance The back of appliance touches the wall. Bottles or containers have fallen or are rolling.
  • Page 37 Troubleshooting Problem Possible cause & Solution The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. The light is not The control system has disabled the lights due to the working door being kept open too long, close and reopen the door to reactivate the lights.

  • Page 38: Disposal Of The Appliance

    Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1.
