10. CLIP LED:

Normally indicates that the channel signal level is nearing the overload point. This circuit monitors
the input gain and equalization for overload. It illuminates at +19 dBu and warns that gain or EQ
boost should be reduced. There is roughly 2 dB of headroom remaining when it lights.

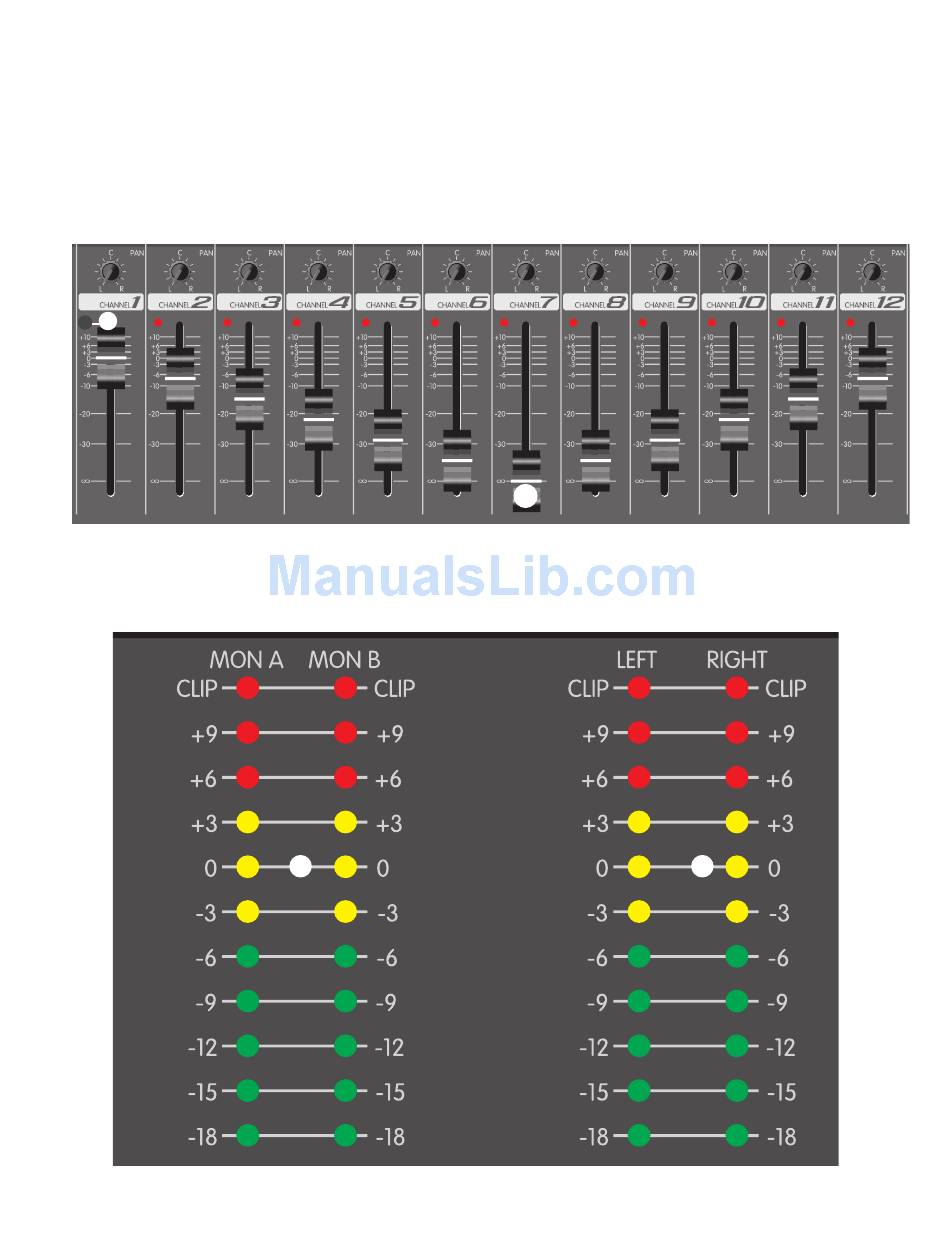

11. FADER:

Channel output level control. The level of the channel can be adjusted from off to +10 dB of gain.
The optimum setting is the "0" (unity gain) position, but even at full gain there is 26 dBu of head-
room (from nominal) available.
10
11

12. LED METERS:

Four 12-segment LED arrays monitor the levels of the main L/R and the Monitor A and B outputs.
The 0 dB reference level corresponds to +0 dBu at the 1/4" jacks.
