Bosch PVA-1EB Quick Start Manual

Communications Systems | PVA-1EB Call station emergency button

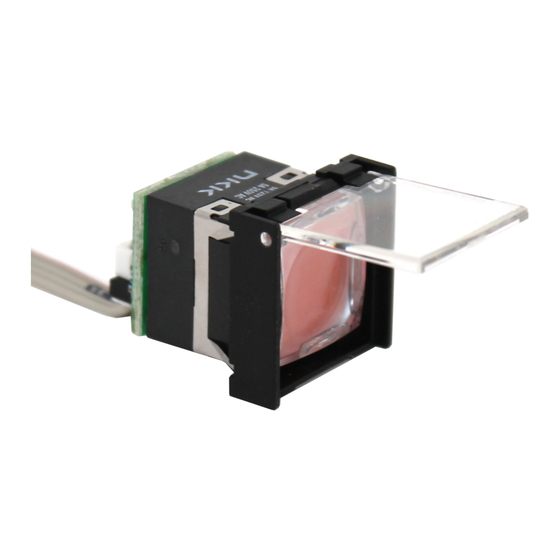

PVA-1EB Call station emergency button
www.boschsecurity.com
The PVA-1EB is an optional emergency button for
installation in the PAVIRO call stations. For more
information, refer to the call station manual.
Certifications and approvals
Emergency standard certifications
Europe EN 54‑16
International ISO 7240‑16
Environmental directive compliance
Immunity EN 50130-4
Emissions EN 61000-6-3
ICES-003
FCC-47 part 15B class A
Environment EN 50581
Maritime EN 60945
Conformity
Europe CE/CPR
Australia RCM
Environment RoHS
Alarm button for call station
u
EN 54-16 and ISO 7240-16 system certification
u
Installation/configuration notes
Labeling
1. Remove button ➊ from housing ➋
2. Remove red diffusor ➌ from lens ➎ using a sharp tool
(such as a knife)
3. Label the film insert ➍
4. Re-assemble the button including the film insert and
mount into the housing ➋
Assembly in call station
1. Disconnect the call station from all connectors.
2. Unscrew the call station baseplate (4 screws ➊).
