The product is designed for indoor and outdoor use.
The product can be used for commercial purposes.
It is considered improper use when the product is used for any application not named in the corresponding instruction manual.
Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/ accessories.
Before putting the products into operation, please observe the respective country-specific regulations!
Use safety wires to protect the antennas against tipping/ dropping.
The safety wires, rope terminations and coupling links must comply in their dimensioning and condition with the regulations and standards of the country in which they are used!
Frequency range | 430 MHz − 960 MHz |
Apex angle (horizontal) | 360° |
Deviation from circular radiation | < 3 dB |
Gain | 0 dB |
Connector | BNC socket, 50 Ω |
Max. input power | 10 W |
DC input resitance | ≥ 1 MΩ |
Ambient temperature | -20°C − +80°C |
Relative air humidity | max. 95% at 40°C (non-condensing) |
Dimensions | 270 x 130 x 35 mm |
Weight (with booster) | approx. 150 g |
Mounting connection | 5/8" thread / adaptor to 3/8" |
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products.
For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:
Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products.
For the current warranty conditions, visit Sennheiser website:
Australia: https://en-au.sennheiser.com/
New Zealand: https://en-nz.sennheiser.com/
To make a claim under this contract, raise a case via Sennheiser website Australia: https://en-au.sennheiser.com/service-support-contact New Zealand: https://en-nz.sennheiser.com/service-support-contact All expenses of claiming the warranty will be borne by the person making the claim.
Sennheiser international warranty is provided by: Sennheiser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Pacific Highway, Chatswood NSW 2067, Australia
In compliance with the following requirements
EU:WEEE Directive (2012/19/EU)
UK: WEEE Regulations (2013)
The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/ or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.
Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner.
The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make an important contribution to the protection of the environment and public health.

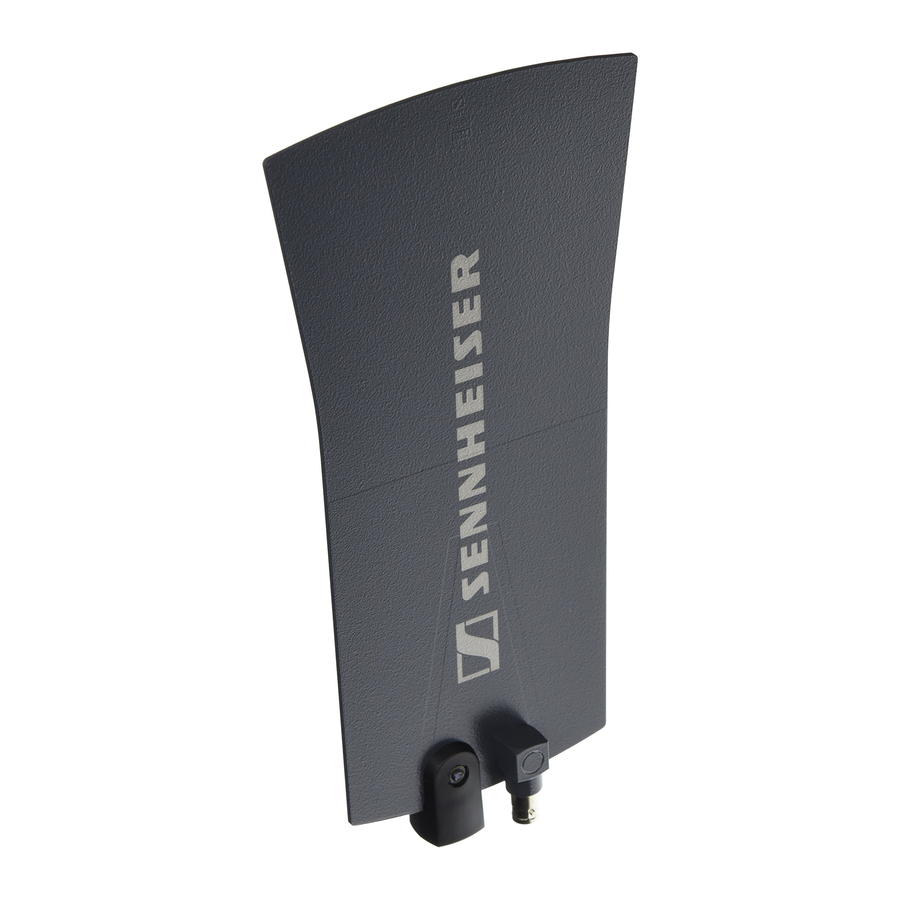

Hereby, Sennheiser electronic GmbH & Co. KG declares that the radio equipment type A 1031-U is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
Contact information:
Sennheiser Electronic Corporation
1 Enterprise Drive, Old Lyme, CT 06371
www.sennheiser.com
