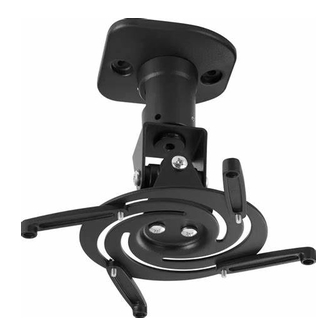

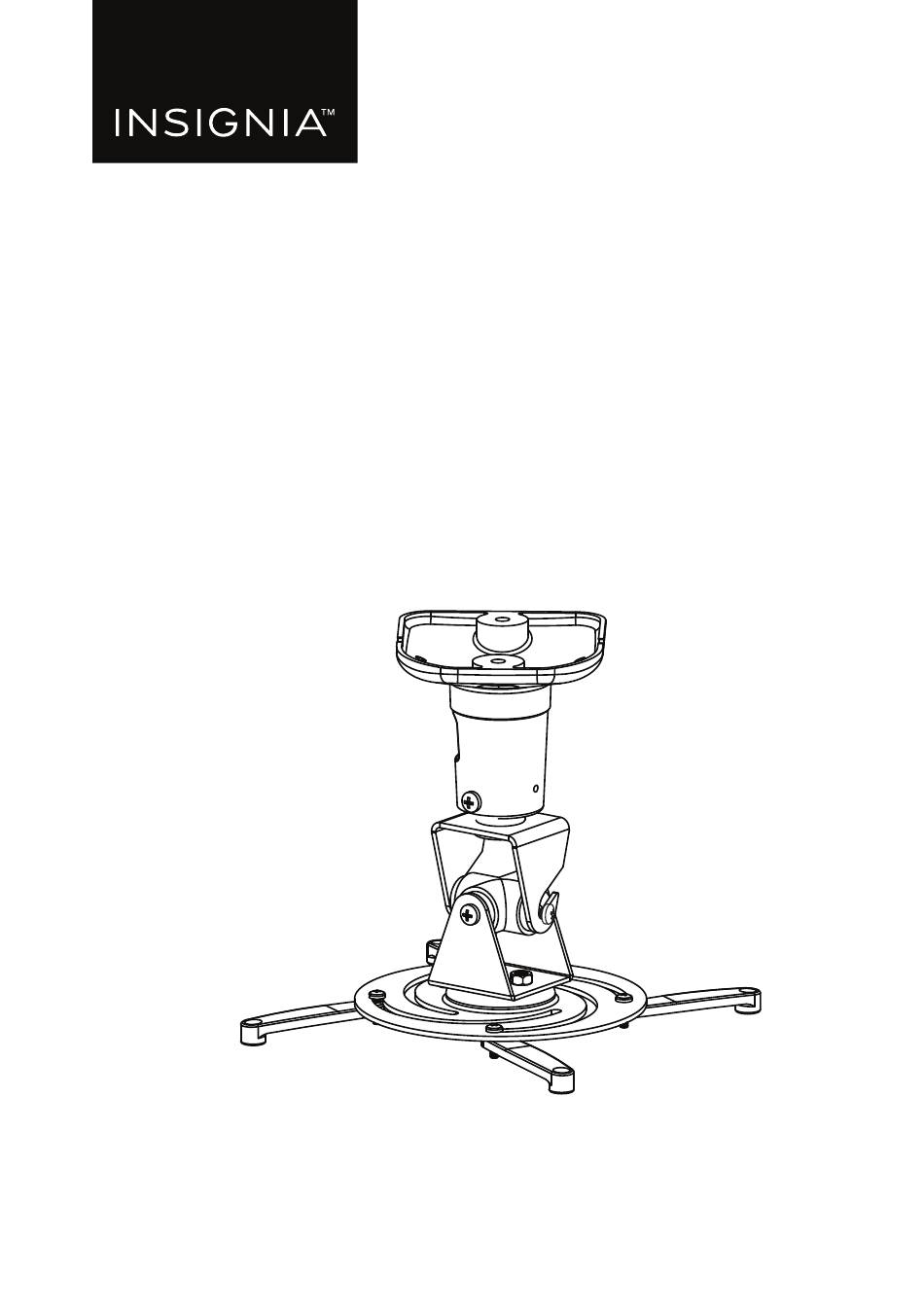

- Page 1 INSTALLATION GUIDE Adjustable Projector Ceiling Mount NS-PROJ2 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Safety information and specifications ......2 Features ............3 Dimensions. -
Page 3: Features
Adjustable Projector Ceiling Mount Features • Supports most projectors weighing up to 30 lbs. (13.6 kg) • Fits most projectors with 3- or 4-bolt mounting systems and distance between mounting holes from 2.4 to 12.1 in. (6.1 to 30.7 cm) •... -
Page 4: Dimensions
Dimensions .4.7 in. (12 cm) 5.1 in. (13 cm) 9.1 in. (23.1 cm) 12.1 in. (30.7 cm) www.insigniaproducts.com... - Page 5 Adjustable Projector Ceiling Mount Tools needed 1/8 in. (3 mm) wood drill bit (for wood stud ceiling) Edge-to-edge Pencil stud finder 5/16 in. (8 mm) masonry drill bit (for concrete ceiling) Drill Phillips screwdriver Hammer Package contents L - Mounting K - Ceiling plate N - Mount base Installation...
-
Page 6: Installation Instructions
Installation instructions STEP 1 - Option 1 - Mounting to a drywall ceiling You need 1/8 in. (3 mm) Phillips screwdriver Pencil wood drill bit K - Ceiling plate Edge-to edge stud finder Drill A - Wood screws Notes: • Any drywall covering the ceiling must not exceed 5/8 in. (16 mm). •... - Page 7 Adjustable Projector Ceiling Mount 3 Drill two pilot holes through the pencil marks to a depth of 2.5 in. (64 mm) using a 1/8 in. (3 mm) diameter drill bit. CAUTION: We recommend using eye protection to protect you from falling dust while drilling.
-
Page 8: Step 1 - Option 2: Mounting To A Concrete Ceiling
STEP 1 - Option 2: Mounting to a concrete ceiling You need B - Concrete anchor Pencil K - Ceiling plate 5/16 in. (8 mm) masonry drill Drill A - Wood screws Hammer Phillips screwdriver Note: The ceiling must be flat. CAUTION: For safety reasons, the concrete ceiling must be capable of supporting four times the combined weight of the mount and the display. - Page 9 Adjustable Projector Ceiling Mount 3 Insert a concrete anchor (B) into each hole so that it is flush with the ceiling (you can tap lightly into place with a hammer). 4 Attach the ceiling plate (K) to the concrete ceiling using the wood screws (A) provided, then tighten the screws.
-
Page 10: Step 2 - Attaching The Mount Base To Your Projector
STEP 2 - Attaching the mount base to your projector You need E - M5 x 14mm D - M5/M6 Phillips screwdriver - Mounting screws washers arms N - Mount base C - M3/M4 - M3 x - M4 x - M6 x - M5 x washers... - Page 11 Adjustable Projector Ceiling Mount 2 Attach the mount base to your projector using the appropriate screws from the hardware kit (F, G, or I). If you are using M3 (F) or M4 (G) screws, you will also need to use the M3/M4 washers (C). If you are using M5 (I) screws, do not use washers.
-
Page 12: Step 3 - Mounting The Projector
STEP 3 - Mounting the projector You need Phillips screwdriver Allen key (J) M - Mount body 1 Screw the mount body (M) into the ceiling plate (K). 2 Tighten the set screw at the top of the mount body using the Allen key (J) from the hardware kit. -
Page 13: Removing Your Projector From The Mount
Adjustable Projector Ceiling Mount 4 Tighten the screws on both sides of the mount base to hold it in place. 5 Connect the power and other cabling, as necessary. Removing your projector from the mount 1 Remove the power and other cabling, as necessary. 2 Loosen the screws on both sides of the mount base. -
Page 14: Specifications
Specifications Dimensions (H × W × D) 12.1 x 9.1 x 4.7 in. (30.7 x 23.1 x 11.9 cm) Mount weight 3.15 lbs. (1.43 kg) Maximum weight capacity 30 lbs. (13.6 kg) www.insigniaproducts.com... -
