Huffy Portable Basketball System Owner's Manual

Hide thumbs Also See for Portable Basketball System:
Table of Contents

Advertisement

Quick Links

Download this manual

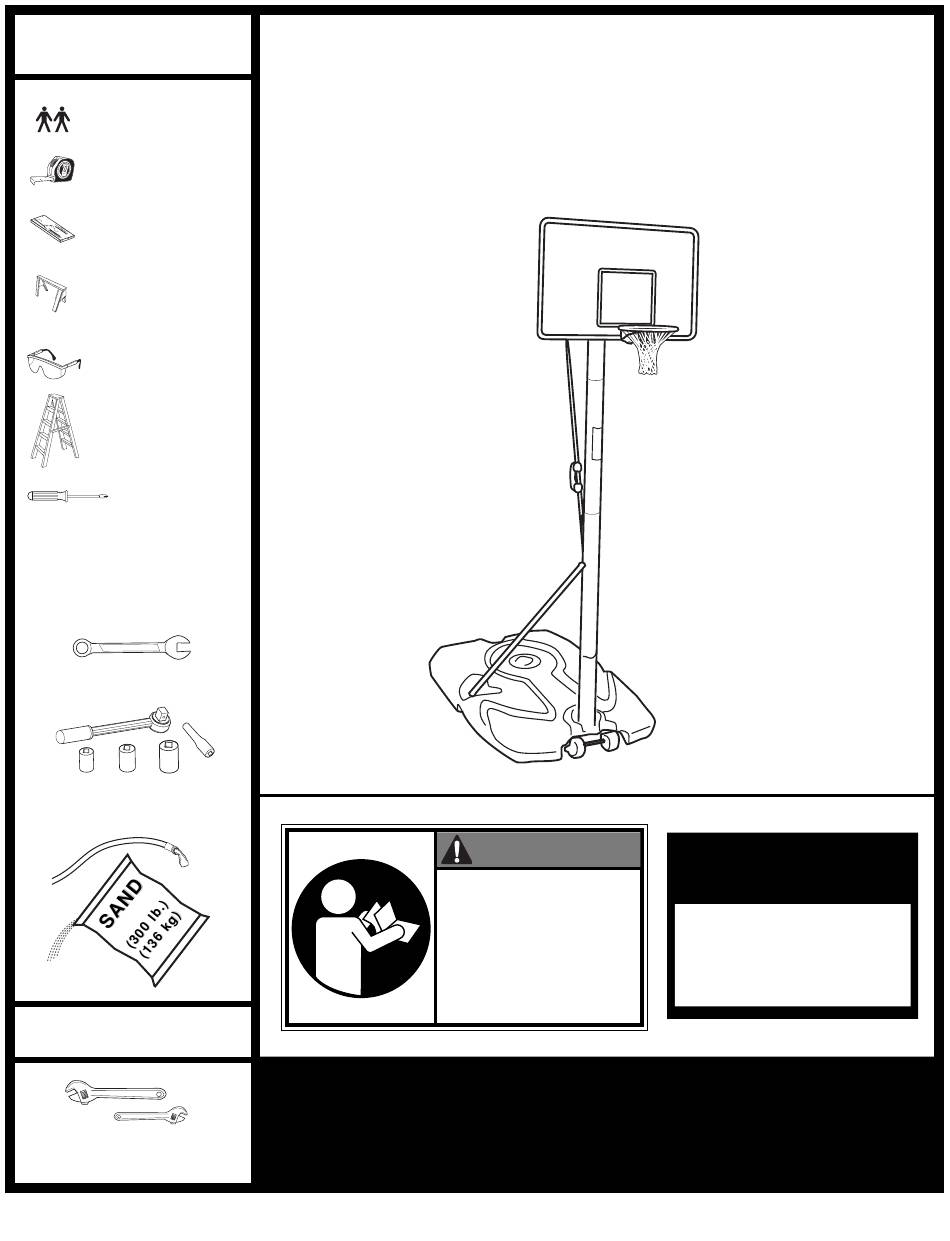

REQUIRED TOOLS
AND MATERIALS:
• 2 People
• Tape Measure
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Safety Glasses
• Step Ladder - 8ft.
(2.4 m)
• #2 or #3 Phillips
Screwdriver
• (2 each) Wrenches and/or Socket
Wrenches and Sockets (Deep-
Well Sockets are Recommended).
• Extension is Recommended.
1/2"
9/16"
3/4"
AND/OR
1/2"
9/16"
3/4"
• Garden Hose or Sand
OPTIONAL TOOLS
AND MATERIALS:
•
Large and Small Adjustable
Wrenches
© COPYRIGHT 2005 by SPALDING
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 7921
Internet Address: http://www.huffysports.com
1
Write Model Number
From Box Here:
11/05
ID# M731321

Advertisement

Table of Contents
loading

Related Manuals for Huffy Portable Basketball System

Summary of Contents for Huffy Portable Basketball System

  • Page 1 Portable System REQUIRED TOOLS AND MATERIALS: Owners Manual • 2 People Customer Service Center • Tape Measure • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A. • Wood Board (scrap) • Sawhorse or Support Table • Safety Glasses •...

  • Page 2: Before You Start

    BEFORE YOU START! WARNING Read and understand warnings listed below before using this product. Failure to follow these warnings may result in serious injury and/or property damage. Owner must ensure that all players know and follow these rules for safe operation of the system. •...

  • Page 3: Safety Instructions

    • If technical assistance is required, contact Huffy Sports. • Adult supervision is recommended when adjusting height. Most injuries are caused by misuse and/or not following instructions.

  • Page 4: Warranty Card

    NOTICE TO ASSEMBLERS ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand or water according to the instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.

  • Page 5: Front View

    Get to know the basic parts of your basketball system... FRONT VIEW BACKBOARD ELEVATOR ADJUSTMENT POLE SUPPORT STRUT BASE 11/05 ID# M731321...
  • Page 6 PARTS LIST - See Hardware Identifier Item Qty. Part No. Description 206657 Tank, (Black) 200628 Wheel Axle 226401 Wheel, 4“ (Black) 90021701 Top Pole Section 904840 Middle Pole Section 900136 Bottom Pole Section 202820 Rod, 3/8 O.D. x 4-3/4 Long 202822 Eyebolt, 3/8-16 x 2-1/2 Long 203063 Nylon Insert Lock Nut, 3/8-16 906206 Tank Strut...
  • Page 7 HARDWARE IDENTIFIER (BOLTS AND SCREWS) Item #18 (5) Item #8 (1) Item #28 (2) Item #15 (6) Item #35 (4) Item #11 (1) Item #23 (1) Item #39 (2) Item #22 (5) HARDWARE IDENTIFIER (NUTS AND WASHERS) Item #13 (2) Item #16 (8) Item #12 (6) Item #38 (1)
  • Page 8 HARDWARE IDENTIFIER (STEEL SPACERS) Item #45 (1) Item #46 (1) Item #42 (4) HARDWARE IDENTIFIER (PLASTIC SPACERS, CAPS, CLIPS AND OTHER) Item #7 (1) Item #51 (2) Item #36 (1) Item #40 (1) Item #17 (2) Item #32 (1) Item #31 (1) Item #30 (1) ID# M731321 11/05...

  • Page 9: Section A: Assemble The Base

    SECTION A: ASSEMBLE THE BASE ITEMS REQUIRED FOR THIS SECTION (2) 1/2” and (2) 9/16" Wrenches This is what your system will look like when you’ve finished this section. AND/OR (2) Socket Wrenches and Sockets 1/2” 9/16” Correctly identify each pole section. Poles have an identification sticker that will be used as a reference point in the next step.
  • Page 10 While maintaining alignment, bounce pole top (4) and middle section (5) together as shown until they no longer move toward identification sticker. Upright assembly. CAUTION! THE IDENTIFICATION STICKER IS LOCATED 5" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 3-1/2"...
  • Page 11 While maintaining alignment, bounce assembly and bottom pole section (6) together as shown until they no longer move toward identification sticker. CAUTION! THE IDENTIFICATION STICKER IS LOCATED 5" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 3-1/2"...
  • Page 12 Install rod (7) through holes in bottom pole section (6) and eyebolt (8). Install wheel axle (2) through wheel carriage (19) and install wheels (3) onto wheel axle (2) with spacers (17) as shown. Insert pole assembly into tank assembly as shown. Secure bottom pole (6) section to tank and wheel carriage as shown.
  • Page 13 Secure flat end of tank struts (10) to pole using bolt (11), washers (12), and nut (13), as shown. Rotate the non-secured angled ends of the struts (10) as shown. WARNING! TIGHTEN BOLT (11) IN LOCK NUT (13) UNTIL FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE.
  • Page 14 Install pole mount bracket (27) and reinforcement bracket (34) with carriage bolts (28) in lower pole mounting holes as shown. Tighten flange nuts (16) completely. FRONT SIDE ID# M731321 11/05...

  • Page 15: Section B: Attach The Backboard

    SECTION B: ATTACH THE BACKBOARD ITEMS REQUIRED FOR THIS SECTION This is what your system will look like when you’ve finished this section. (2) 1/2" AND (2) 9/16" AND (2) 3/4" Wrenches AND/OR (2) Socket Wrenches and Sockets 1/2” 9/16” 3/4”...
  • Page 16 Assemble backboard brackets (29) using bolts (35), and nuts (9) as shown. IMPORTANT! Test fit bolts into holes of brackets and carefully rock them in a circular motion to ream out paint from holes if necessary. NOTE ORIENTATION Identify elevator tubes (41 and 44). Upper Elevator tube Toward Pole Toward Board...
  • Page 17 Attach lower elevator tubes (41) to backboard brackets (29) using spacers (42) bolt (22) and nut (21) as shown. Insert “T” bolt (36) through Slam Jam bracket (32) as shown. Secure Slam Jam bracket (32) and backboard bracket (29) assemblies to backboard. Use bolt (15) and nut (16) as shown.
  • Page 18 Attach upper elevator tubes (44) to backboard support brackets (29) using spacers (42), bolt (22), and nut (21) as shown. ID# M731321 11/05...
  • Page 19 Support pole on sawhorse. Attach upper and lower elevator tubes (41 and 44) to upper pole section (4) using bolts (22) and nuts (21) as shown. Attach pole cap (14) as shown. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
  • Page 20 Insert locking pin (46) into bracket on adjustment tube (49). Insert cross pin (45) through hole in bracket and locking pin (46) as shown in figure A. Fit left handle (47) onto adjustment tube (49) so the bottom of adjustment tube (49) sits on the two small ribs of the handle as shown in figure B.
  • Page 21 Insert spring (50) into back of locking pin (46) as shown. Spring (50) should rest between two small ribs at the back of the plastic handle as shown in Figure C. Insert top of trigger (33) into bracket on the adjustment tube (49) as shown. The plastic post of the handle pieces should go through the hole in bottom of trigger (33) and hold it into place as shown.
  • Page 22 Finish handle assembly by attaching right handle (48) using screws (18) as shown. Attach adjustment tube (49) to lower elevator tubes (41) using bolt (22) spacers (51) and nut (21) as shown. ID# M731321 11/05...
  • Page 23 Insert lower adjustment rod (52) into bottom of adjustment tube (49), pull trigger to allow lower adjustment rod to move about mid-way into adjustment tube (49), release the trigger so the lower adjustment rod (52) locks into position midway inside the adjustment tube (49). Attach the lower adjustment rod (52) to elevator bracket (27) using bolt (23) and nut (13) as shown.
  • Page 24 Install Slam Jam Rim to Backboard A. Fit rim (20) securely into bracket (32) as shown. Allow T-bolt (36) to slip through center hole in rim (20). B. Install reinforcement bracket (31) onto T bolt (36) as shown. C. Install spring (30) onto T bolt (36) as shown. D.
  • Page 25 Support system on sawhorse. Extend system to highest position before assembly of spring. Attach counterbalance spring (43) to upper elevator tubes with bolt (39) and nut (9) in location shown. Stretch spring to lower elevator tubes and attach with hardware as shown. WARNING! WARNING! TWO PEOPLE REQUIRED...
  • Page 26 Install net (26) as shown. NOTE: Slide counterbalance spring against elevator tubes. Lock elevator system into highest position (so the backboard is as high as it will go). Apply 10 ft. height indication sticker (37) to adjustment rod (52) directly below arrow on handle as shown. Move elevator system to the next position and apply the 91/2 ft.
  • Page 27 Roll completed assembly to desired position. Fill tank with water (approx. 30 gallons/115 Liters) or sand (approx. 300 lbs./136 kg) and snap cap (24) in place. WARNING! TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
  • Page 28 Pull trigger (33). Move elevator system up or down to desired height, release trigger (33) to lock system into one of the five height settings. WARNING! DO NOT ALLOW CHILDREN TO ADJUST HEIGHT. Apply the height adjustment and moving label (25) to the front of the pole as shown. 10 ft.
