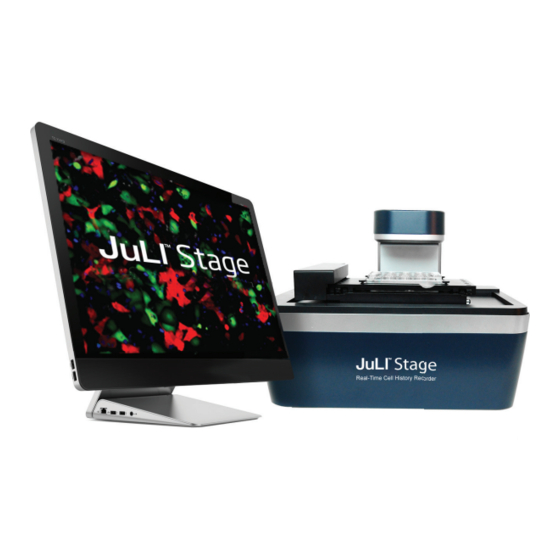

NanoEnTek Juli Stage Installation Manual

Hide thumbs Also See for Juli Stage:

Download this manual

Important information before getting started

First use: Before the initial operation of JuLI™ Stage, we recommend to

leave the instrument outside an incubator for 20 minutes, keeping the power

on. This will allow the instrument's temperature to equilibrate to room

temperature.

If the instrument is to be operated inside an incubator, additionally warm up

the instrument to 37 °C for 2 hours. Make sure to keep the power on during

this process.

Environmental requirements: When operating JuLI™ Stage inside an

incubator, make sure to keep the laboratory's temperature in a range of

between 15 °C and 25 °C. Temperature beyond this range may affect the

performance of the JuLI™ Stage.

Installation: Please make sure to carefully follow the installation instructions

in this manual in order to ensure safe operation. If all the components are

connected correctly, it will look like the Image below.

PC ►USB-Repeater ►USB-Cables ►Control Box ►Connection Cable ►JuLI™ Stage

Make sure no cable is under tension.

Page 1 Important information before getting started First use: Before the initial operation of JuLI™ Stage, we recommend to leave the instrument outside an incubator for 20 minutes, keeping the power on. This will allow the instrument’s temperature to equilibrate to room temperature.
Page 2 Unpack the instrument and check if all components are available. If any part is missing or damaged, contact your local distributor or e-mail sales@nanoentek.com. Connect the PC with the repeater cables:  Connect the two repeater cables to the USB3 ports on the back of the PC.
Page 3 Connect the other end of the repeater cables to the USB cables of the control box. The LEDs on the control box should be red. Cover the connected part of the cable with protective plastic cover. Plug the white connecting cable into the control box using the end of the cable without the ferrite core.
