- Page 1 Natus Photic Stimulator User & Service Manual...
- Page 3 This copy of the User Manual shall be used only in accordance with the conditions of sale of Natus Neurology Incorporated or its distributors. Natus Neurology Incorporated makes no representations or warranties of any kind whatsoever with respect to this document.
-
Page 4: Table Of Contents
Natus Photic Stimulator User & Service Manual Table of Contents INTRODUCTION WARNINGS AND CAUTIONS DESCRIPTION OF SYMBOLS SPECIFICATIONS Product Images UNPACKING CABLE OPTION LIST INSTALLATION AND OPERATION RECOMMENDED USER PERFORMED MAINTENANCE Cleaning Inspection Maintenance ENVIRONMENTAL SPECIFICATIONS Temperature Humidity Condensation Flammability... -
Page 5: Introduction

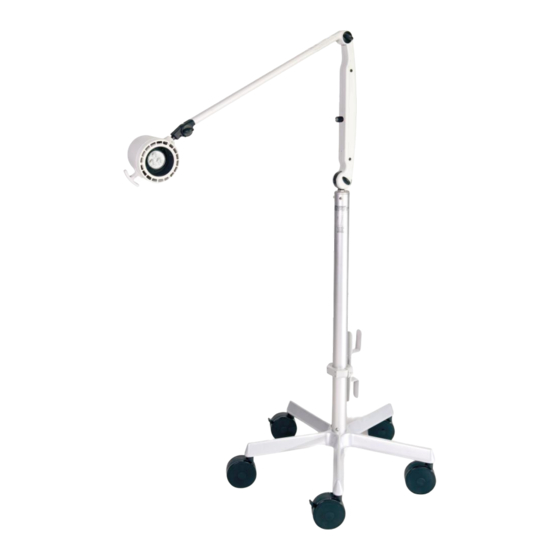

User & Service Manual Natus Photic Stimulator Introduction The Natus Photic Stimulator is a powerful, portable option that can enhance and expand neurologic testing. Driven by the Natus NeuroWorks software from laptop or desktop computers, it supplies intense flashes of light. Its components consist of an arm-mounted light assembly, a light source, an intensity control, a test button, and a Trigger-in receptacle for a cable from a headbox. -
Page 6: Warnings And Cautions
Natus Photic Stimulator User & Service Manual Warnings and Cautions Important Safety Information This equipment/system is intended for use by Healthcare professionals ONLY. Please read this section before installing any of the hardware. Refer to this section when you operate, transport, store, or re-install the system. - Page 7 NOTE: XLTEK designates no non-medical equipment for use with the Photic Stimulator system. No supporting documentation for such devices is necessary. The Photic Stimulator needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this user manual.
-
Page 8: Description Of Symbols
Natus Photic Stimulator User & Service Manual Description of Symbols Symbols and warning labels on equipment can simplify language differences and give users instant comprehension of warnings and markings in a restricted space. ATTENTION: Consult Accompanying Documents Consult Accompanying Documents... -
Page 9: Specifications
User & Service Manual Natus Photic Stimulator Specifications WARNING: Reliable grounding requires hospital-grade receptacles and power cord. Support arm 52 in. (1320.8 mm) total Frequency of flash Maximum 60 Hz Light intensity Adjustable via Intensity control (12-position control: 11 settings; 1 Off) TTL Positive Pulse;... -
Page 10: Unpacking
Natus Photic Stimulator User & Service Manual Unpacking When you unpack your Natus Photic Stimulator, make sure the following items are included: Photic Stimulator (p/n 10440) PCI to Photic Stimulator 20ft Cable (p/n 003771) Protektor to Photic Stimulator Cable (p/n 003632) ... - Page 11 User & Service Manual Natus Photic Stimulator 6) On the Netlink or Netlink ICU headbox, connect the mini-din 4-pin male end of trigger cable (BLSC part number 580-PHTCB1) to the Trig I/O connector. 7) On the Netlink LTM or XL headbox, connect the Lemo 6-pin connector of trigger cable (BLSC part number 580-PHTCB3) to the Auxiliary connector.
-
Page 12: Recommended User Performed Maintenance
Natus Photic Stimulator User & Service Manual Recommended User Performed Maintenance Cleaning No special cleaning is required for this device. Ordinary, ‘house-keeping’ type cleaning to prevent the accumulation of dust or debris is adequate. Inspection No special inspection procedures are required for this device. -
Page 13: Environmental Specifications
User & Service Manual Natus Photic Stimulator Environmental Specifications Temperature Operating: 10 to 40° C Storage and transportation: -20 to 70° C Humidity Operating: 30% to 75% RH Storage and transportation: 10%- 90%RH non-condensing Condensation Recovery Time after condensation to operations specifications: 24 hours... -
Page 14: Safety Standards
Natus Photic Stimulator User & Service Manual Safety Standards This component complies with the following electrical safety standards: UL 60601-1 CAN/CSA C22.2 No. 601-1-M90 IEC 60601-1-2:2007 Electromagnetic Compatibility (EMC) Testing Environmental Conditions Select a room with properly grounded power sources. -
Page 15: Electrical Fast Transient (Eft) Procedures And Warnings
User & Service Manual Natus Photic Stimulator Follow these techniques to help reduce the incidence of component damage caused by static electricity: Immediately before handling any product components assemblies, drain the electrostatic charge from your body by touching a known earth ground. -
Page 16: Declaration Of Compliance For Iec 60601-1-2:2007
Declaration of Compliance for IEC 60601-1-2:2007 IEC 60601-1-2:2007 Table 1 Requirements The Natus Photic Stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the equipment should assure that it is used in such an environment. - Page 17 IEC 60601-1-2:2007 Table 2 Requirements: The Natus Photic Stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the Natus Photic Stimulator should assure that it is used in such an environment. Electromagnetic environment –...
- Page 18 User & Service Manual IEC 60601-1-2:2007 Table 4 Requirements: The Natus Photic Stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the equipment should assure that it is used in such an environment.
- Page 19 RF communications equipment and the Natus Photic Stimulator The Natus Photic Stimulator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Natus Photic Stimulator can help prevent...
- Page 20 Natus Photic Stimulator User & Service Manual Intentionally Left Blank...
- Page 21 User & Service Manual Natus Photic Stimulator Intentionally Left Blank...
- Page 22 Natus Photic Stimulator User & Service Manual Intentionally Left Blank...
- Page 23 Intentionally Left Blank...
- Page 24 A Total Service Solution Standing behind every XLTEK product is Natus Medical Incorporated, an internationally respected innovator of medical products and services. Our Neurology systems are backed up by an in-house support team staffed with technical and clinical experts, 24/7 support, remote support via WebEx or VPN,...
