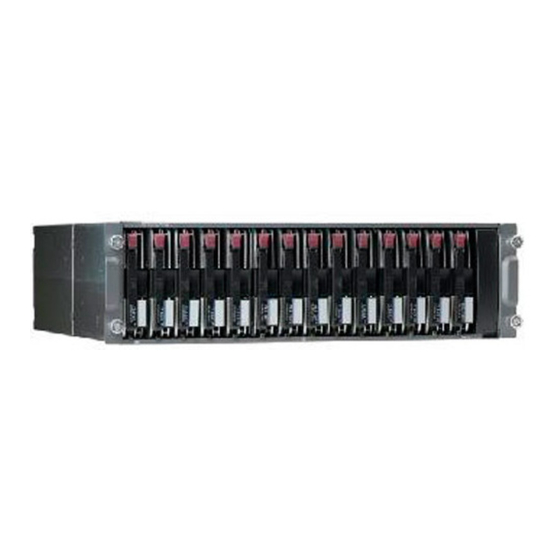

HP StorageWorks EVA 3000 Replacement Instructions

HP StorageWorks
Fibre Channel Disk Drive
Replacement Instructions
These instructions apply to the EVA 3000/5000 and
the EVA 4000/6000/8000 product families. The
part may also be used in other HP products. Please
refer to documentation for your specific product for
detailed replacement instructions.
© Copyright 2005–2006 Hewlett-Packard Development Company,
L.P.
Fourth edition August 2006
The information in this document is subject to change without
notice.
Printed in the US
www.hp.com
*5697-5831*
Warranty Information
If the product in which this part is being replaced is still under
HP warranty, then the replacement part(s) referred to in these
Replacement Instructions is provided under the terms and conditions
of the Hewlett-Packard Company Limited Warranty for that
product. A copy of this Limited Warranty may be viewed at:
http://h18006.www1.hp.com/products/storageworks/warranty.html
If this is a trade sale part (product out of warranty), then the replacement
part(s) referred to in these Replacement Instructions is provided under
HP's express limited warranty statement, which may be viewed at:
http://www.hp.com/go/storagewarranty
The replacement part takes on either the Limited Warranty Period of the
part being replaced or a ninety-day period that begins upon installation
of the replacement part, whichever is greater.
The only warranty for this replacement product is as noted above.
Nothing in these replacement instructions should be construed as
constituting an additional warranty. The information provided in these
replacement instructions is provided "AS IS" and HP is not liable for
technical or editorial errors or omissions contained herein.
About This Document
This document describes the procedure for replacing the Fibre Channel
disk drive used in the EVA products.
Before you begin
Observe the following precautions when replacing the disk.
CAUTION:
Make sure you have a replacement part available before
removing the failed component. Removing a component impacts
cooling within the enclosure.
Do not remove more than one disk at a time from the enclosure.
Doing so will impact cooling of the enclosure and may cause
data loss.
Parts can be damaged by electrostatic discharge. Use proper
anti-static protection. Refer to the documentation that shipped
with your system for additional information.
Have a copy of the product User Guide available for reference.
You can download a copy of the User Guide from the product
support page on the HP web site.
Disk replacement video
To assist you in replacing the disk, a replacement video has been
produced. You can view the video at the following web site. The same
procedure is used for EVA3000/5000 and EVA4000/6000/8000
products.
http://www.thesml.com/csr.htm?prodSeriesId=470490
Types of disk failures
There are two types of disk failures:
• Hard failure - the disk is no longer functioning properly and has
been assigned a failed status. This type of failure is indicated by an
operational state of
fault status indicator on the disk is typically on.
Page 1
Failed in Command View EVA. The amber
