Greenheck DFD Series Manual

®
Refer to:
'Installation Instructions for FD, DFD, SSFD, SSDFD, &
KFD Series Curtain Fire Dampers' (Part #481324)
or
'Installation, Operation and Maintenance Instructions
for FSD-XXX, SSFSD-XXX and DFD-2XX Series Fire &
Combination Fire Smoke Dampers' (Part #481318) for
additional details.
Instructions
These instructions apply to 1½ hour rated Greenheck combination fire smoke dampers and fire dampers mounted
horizontally in design I503 as detailed in the UL Fire Resistance Directory. UL design I503 is a 2 hour rated non-
load bearing horizontal barrier constructed from steel studs and gypsum board. Specific requirements in these
instructions are mandatory. These instructions meet the requirements of NFPA 90A (Standard for the Installation of
Air Conditioning and Ventilating Systems).
Horizontal mount dampers up to a maximum size of
48 in. W x 48 in. H (1219 mm W x 1219 mm H) may be
installed as described below.
1. Clearance Requirements
There are no minimum clearance requirements
between the floor opening and the damper sleeve.
However, to facilitate installation clearances
between the floor opening and damper sleeve are
recommended.

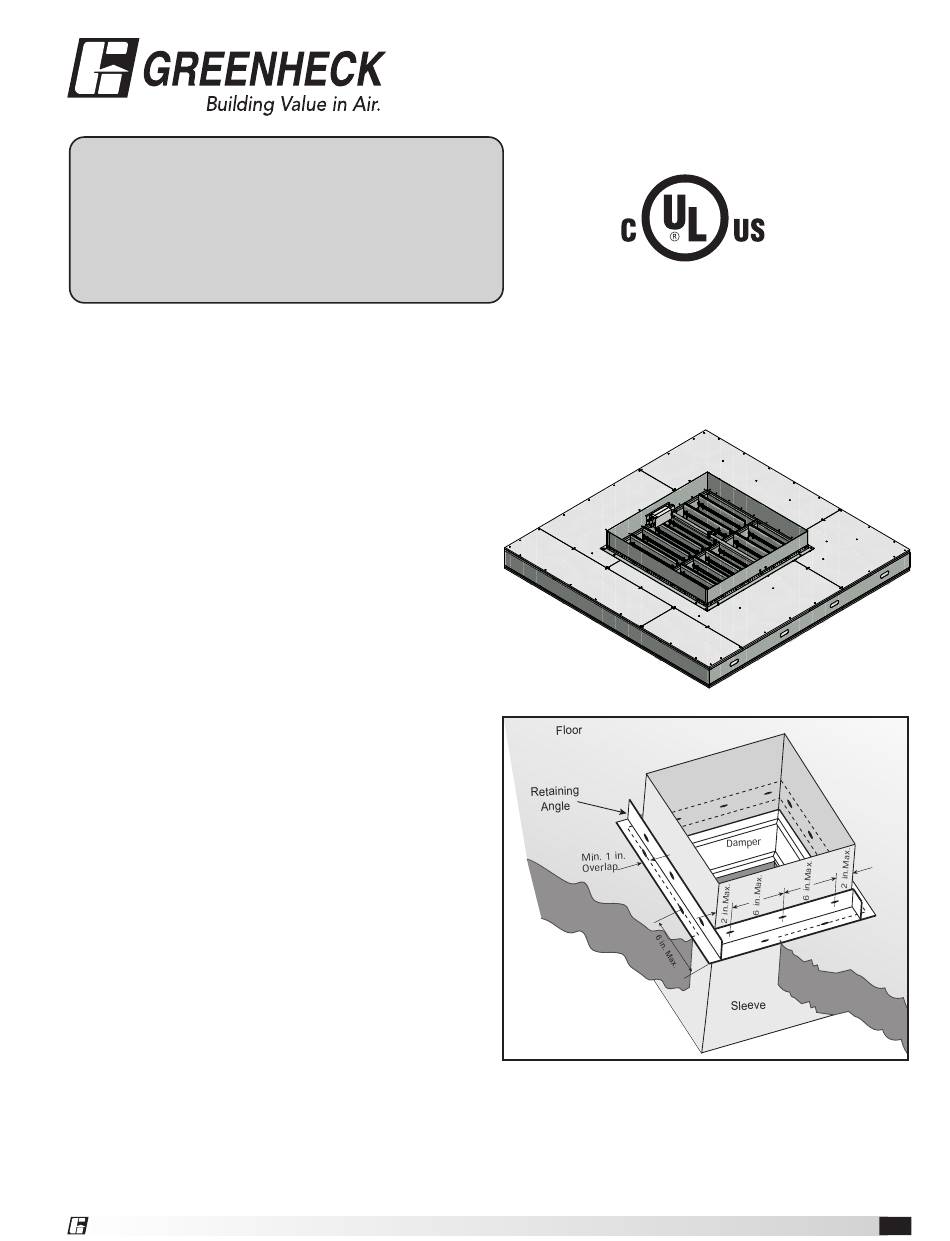

2. Securing the Damper/Sleeve Assembly to the Floor
Retaining angles are required above the floor and are
optional below the floor. Retaining angles must be a
minimum of 20 ga. (1 mm). The leg of the retaining
angle on the damper sleeve shall be a minimum of 1¼
in. (32 mm). The leg of the retaining angle on the floor
shall be long enough to cover any annular space and
overlap the floor by at least 1 in. (25mm).
• Retaining angles must be attached to the sleeve
using one of the following methods:
- Tack or spot welds
- #10 sheet metal screws
- ¼ in. (6 mm) nuts and bolts
A minimum of two connections are required on each
side. Connections shall be no more than 2 in. (51 mm)
from the corners and no more than 6 in. (152 mm) on
center.
• Retaining angles must be attached to the floor using
a minimum of 2 screws per side no more than 6 in.
(152 mm) from the corners. Fasteners shall be
6 x 1 ⁄ in. (152 mm x 48 mm) (minimum) self-drilling
7
8
screws.
3. Framing Requirements
The sides of the damper parallel to the floor studs shall be framed by 2 – steel studs positioned back to back
•
with a steel track overlapping the stud facing the damper sleeve. See Figure 1.
• The sides of the damper perpendicular to the floor studs shall be framed by a steel track.
®
Document 481007
Horizontal Mount Damper in
Non Concrete Barrier
DFD, FD, and FSD Series
Horizontal Mount Non-Concrete 1
