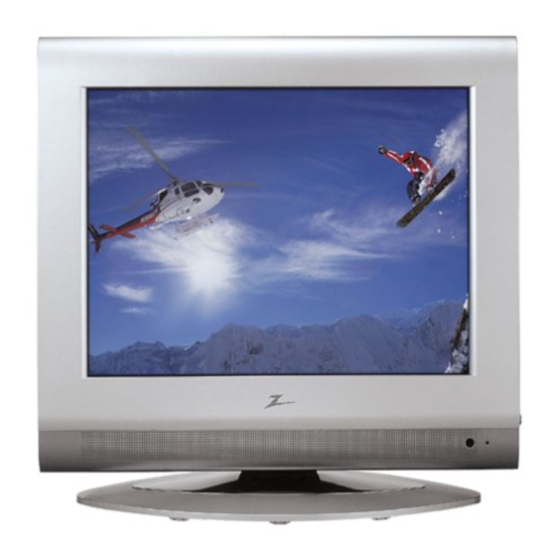

Zenith L15V26C Service Manual

Hide thumbs Also See for L15V26C:

Advertisement

Quick Links

SERVICE MANUAL
Product Type:
Chassis:
Manual Series:
Manual Part #:
Model Line:
Product Year:
Description of Controls .................................................4
Specifications .............................................................10
Adjustment Instructions ...............................................14
Diagrams ...................................................................16
Parts List ...................................................................19
Schematics ....................................................................
Printed in Korea
All manuals and user guides at all-guides.com
LCD TV
ML-024A
2002
CONTENTS
Published June 2002
by Technical Publications
Zenith Electronics Corporation
201 James Record Road
Huntsville, Alabama 35824-1513
Copyright © 2002 by Zenith Electronics Corporation
Model Series:
L15V26C
L15V24S

Advertisement

Table of Contents
loading

Summary of Contents for Zenith L15V26C

  • Page 1: Table Of Contents

    Description of Controls ..........4 Specifications .............10 Adjustment Instructions ..........14 Diagrams ..............16 Parts List ..............19 Schematics ..............Published June 2002 by Technical Publications Zenith Electronics Corporation 201 James Record Road Huntsville, Alabama 35824-1513 Copyright © 2002 by Zenith Electronics Corporation Printed in Korea...
  • Page 2 When servicing this product, under no circumstances should the commercially available discharging wrist strap device, which should be original design be modified or altered without permission from Zenith removed for potential shock reasons prior to applying power to the unit under Electronics Corporation.
  • Page 3 All manuals and user guides at all-guides.com TABLE OF CONTENTS DESCRIPTION OF CONTROLS ...........4 SPECIFICATIONS...............10 ADJUSTMENT INSTRUCTION...........14 BLOCK DIAGRAM...............16 EXPLODED VIEW...............18 EXPLODED VIEW PARTS LIST .........19 REPLACEMENT PARTS LIST ..........20 SCHEMATIC DIAGRAM............PRINTED CIRCUIT BOARD ........... - 3 -...
  • Page 4: Description Of Controls

    All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS Front of the Front of the L15V24S Side Control Panel Side Control Panel Channel Buttons Volume Buttons Enter Button Menu Button TV/Video Button On/Off Button Remote Control Sensor Power/Standby indicator Illuminates brightly when the TV is in standby mode.
  • Page 5 All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS Back of the Back of the Connection Panel Connection Panel S-VIDEO AC INPUT RS-232C PC INPUT ANT IN VIDEO (MONO) AUDIO +75 Ω (120V) INPUT SOUND VIDEO IN Power Cord Socket Headphone Audio/Video PC Sound...
  • Page 6 All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS Remote Control Buttons Remote Control Buttons power tv/video POWER TV/VIDEO NUMBER CLOSED CAPTIONS menu mute MUTE MENU ENTER enter CHANNEL ( DE ) VOLUME ( F G ) sleep SLEEP flashbk dasp DASP...
  • Page 7 All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS L15V26C Front of the Front of the Side Control Panel Side Control Panel Channel Buttons Volume Buttons Enter Button Menu Button TV/Video Button On/Off Button Remote Control Sensor Power/Standby indicator Illuminates brightly when the TV is in standby mode.
  • Page 8 All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS Back of the Back of the Connection Panel Connection Panel VIDEO (MONO) AUDIO S-VIDEO AC INPUT PC INPUT ANT IN COMPONENT(480i/480p/720p/1080i) VIDEO IN +75 Ω (120V) SOUND DVD/DTV IN S-Video Input Power Cord Socket Headphone Jack PC Sound...
  • Page 9 All manuals and user guides at all-guides.com DESCRIPTION OF CONTROLS Remote Control Buttons Remote Control Buttons power tv/video POWER TV/VIDEO NUMBERS CLOSED CAPTIONS menu mute MUTE MENU ENTER enter CHANNEL ( DE ) VOLUME ( F G ) sleep SLEEP TIMER flashbk dasp DASP...
  • Page 10: Specifications

    Antenna input 1 Power supply cord set Standard North America three wire earth-grounding with flexible cord SJT type or higher type. CAUTION: If replacement becomes necessary, replace it with an exact duplicate. Contact any Zenith authorized service center. - 10 -...
  • Page 11 All manuals and user guides at all-guides.com SPECIFICATIONS Displayable Monitor Output Format Specifications Displayable Monitor Output Format Specifications Horizontal Vertical MODE Resolution Frequency (KHz) Frequency (Hz) 640x400 37.9KHz 85Hz 640x480 31.5KHz 60Hz 640x480 35.0KHz 67Hz 640x480 37.9KHz 72Hz 640x480 37.5KHz 75Hz 640x480 43.3KHz...
  • Page 12 Antenna input 1 Power supply cord set Standard North America three wire earth-grounding with flexible cord SJT type or higher type. CAUTION: If replacement becomes necessary, replace it with an exact duplicate. Contact any Zenith authorized service center. - 12 -...
  • Page 13 All manuals and user guides at all-guides.com SPECIFICATIONS Displayable Monitor Output Format Specifications Displayable Monitor Output Format Specifications Horizontal Vertical MODE Resolution Frequency (KHz) Frequency (Hz) 640x400 37.9KHz 85Hz 640x480 31.5KHz 60Hz 640x480 35.0KHz 67Hz 640x480 37.9KHz 72Hz 640x480 37.5KHz 75Hz 640x480 43.3KHz...
  • Page 14: Adjustment Instructions

    Video input applicable system 0 : NTSC-M(North America) 1 : NTSC-M & PAL-M/N multi(South America) LGCON RS232C Protocol 0 : MPI Protocol(Zenith program) 1 : LG Protocol(LG program) MPIOS RS232C Protocol OSD display 0 : non display OSD 1 : display OSD...
  • Page 15 All manuals and user guides at all-guides.com ADJUSTMENT INSTRUCTION 5. RS232C(RMS Only) (1) Use the Untweasted 232C Cable (2) Use the PC program which is sent by Zenith (3) 232C Protocol Command Remark Power On E110F1 Turn the set on.
  • Page 16: Diagrams

    All manuals and user guides at all-guides.com BLOCK DIAGRAM - 16 -...
  • Page 17 All manuals and user guides at all-guides.com NOTES - 17 -...
  • Page 18: Exploded View

    All manuals and user guides at all-guides.com EXPLODED VIEW - 18 -...
  • Page 19: Parts List

    All manuals and user guides at all-guides.com EXPLODED VIEW PARTS LIST Part No. Description L15V24S L15V26C 6304FLP006C 6304FLP006C LCD MODULE,LC151X01-C3M2 LG PHILPS TFT COLOR NON 6400VA0017A 6400VA0017A SPEAKER,GENERAL T401SX-095K14 LG C&D 8 OHM 1.0/1.5W 3091V00443A 3091V00443B CABINET ASSEMBLY 5020V00552K 5020V00552J...
  • Page 20: Replacement Parts List

    All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film RUN DATE : 2002.11.22 in the P/No.
  • Page 21 All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION ZD702 0DZ150009AD ZENERS,MTZJ15B 0CK105DF64A 1UF 2012 16V 20% ZD703 0DZ820009AH ZENERS,MTZJ8.2B C620 0CE335DK618 3.3UF STD 50V 20% FL TP 5 C621 0CE107BF618 100UF KME 16V M FL TP5...
  • Page 22 All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION C810 0CK823DK56A 82000PF 2012 50V 10% SW1101 140-275B SWITCH,PUSH JDPB21NA 30V 0.3A C832 0CE107DF618 100UF STD 16V M FL TP5 SW1102 140-313A SWITCH,TACT 2LEAD 100G(TA) 5V 0.001A...
  • Page 23 THERMISTOR,KL15L2R5 +/ 15% 125V TU401 6700VNF019E TUNER,TAFHH001P LG NTSC FS VA701 164-003K VARISTOR,SVC621D14A 620V 0% ACCESSORIES 3828VA0359A MANUAL,OWNERS ML024A RU15LA51 ZENITH EN “ 3828VA0359B MANUAL,OWNERS ML024A RU15LA50 ZENITH EN 6710V00082M REMOTE CONTROLLER,ML024A W/O TXT 6410VUH007A POWER CORD,SP305+IS034 SVT18AWG*3C 6851V00004D CABLE ASSEMBLY,AUDIO TO AUDIO...
  • Page 24 All manuals and user guides at all-guides.com...
  • Page 25 All manuals and user guides at all-guides.com...
  • Page 26 All manuals and user guides at all-guides.com MAIN(TOP) MAIN(BOTTOM) CONTROL POWER...
