Introduction

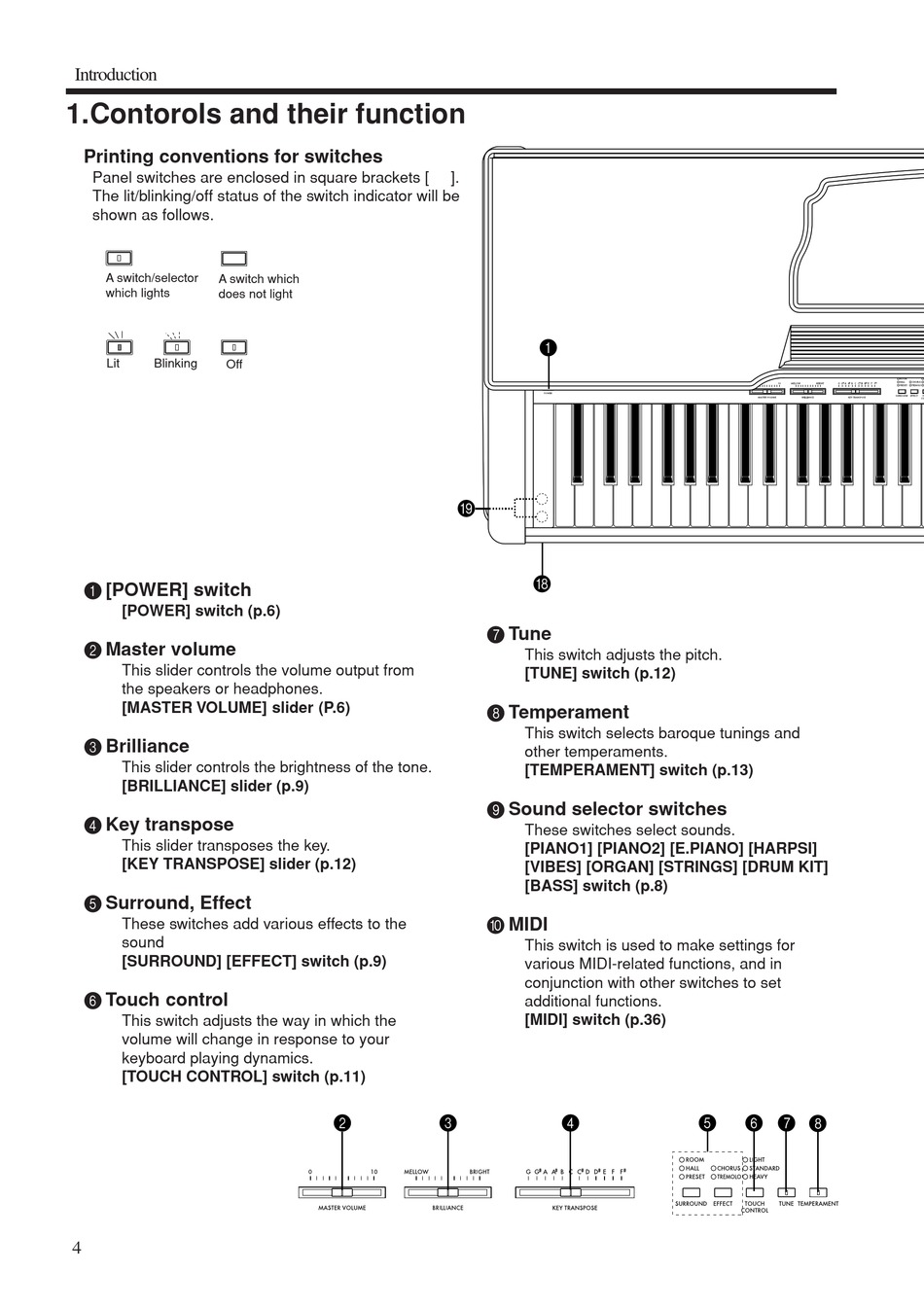

1.Contorols and their function

Printing conventions for switches
Panel switches are enclosed in square brackets [
The lit/blinking/off status of the switch indicator will be
shown as follows.
A switch/selector
A switch which
which lights
does not light
Lit Blinking
Off
1 [POWER] switch
[POWER] switch (p.6)
2 Master volume
This slider controls the volume output from
the speakers or headphones.
[MASTER VOLUME] slider (P.6)
3 Brilliance
This slider controls the brightness of the tone.
[BRILLIANCE] slider (p.9)
4 Key transpose
This slider transposes the key.
[KEY TRANSPOSE] slider (p.12)
5 Surround, Effect
These switches add various effects to the
sound
[SURROUND] [EFFECT] switch (p.9)
6 Touch control
This switch adjusts the way in which the
volume will change in response to your
keyboard playing dynamics.
[TOUCH CONTROL] switch (p.11)
4
].
I
7 Tune
8 Temperament
9 Sound selector switches
0 MIDI
2 3
1
H
This switch adjusts the pitch.
[TUNE] switch (p.12)
This switch selects baroque tunings and
other temperaments.
[TEMPERAMENT] switch (p.13)
These switches select sounds.
[PIANO1] [PIANO2] [E.PIANO] [HARPSI]
[VIBES] [ORGAN] [STRINGS] [DRUM KIT]
[BASS] switch (p.8)
This switch is used to make settings for
various MIDI-related functions, and in
conjunction with other switches to set
additional functions.
[MIDI] switch (p.36)
4 5 6 7 8
