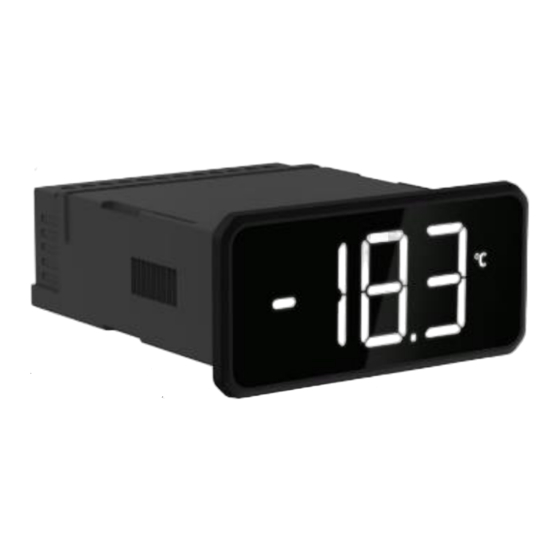

Emerson Dixell XR20-30-60-70T Quick Reference Manual

FULL TOUCH – XR20-30-60-70T
XR70T
XR30T
SAFETY INFO
•
This manual is part of the product and should be kept near the instrument for easy and quick reference.
•
The instrument shall not be used for purposes different from those described hereunder. It cannot be used as a safety device.
•
Dixell Srl reserves the right to change the composition of its products, even without notice, ensuring the same and unchanged functionality.
• In case of failure or faulty operation, contact the local distributor or "Dixell S.r.l." with a detailed description of the fault.
•
The instrument must not be opened.
•
Check the application limits and the correct power supply voltage before proceeding.
•
Do not expose to water or moisture: use the controller only within the operating limits avoiding sudden temperature changes with high
atmospheric humidity to avoid condensation
•
Warning: disconnect the power supply and all other electrical connections before any kind of maintenance.
•
Observe the maximum current value which can be applied to each relay (see Technical Data).
• Ensure that the wires for probes, loads and the power supply are separated and far enough from each other, without crossing or intertwining.

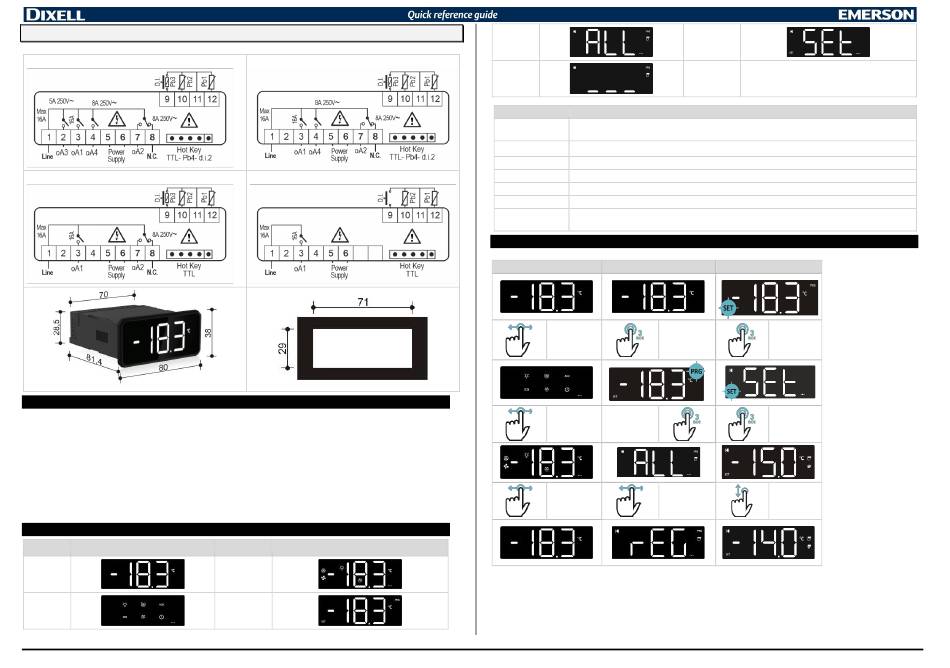

USER INTERFACE
SCREEN APPEARANCE
Home
Virtual
Keyboard
1569005010 XR20-30-60-70T QRG EN r1.2 2021.06.22
XR60T
XR20T
SCREEN APPEARANCE
Info
Programming
Mode
Parameter
Menu
X9
SCREEN NAME
This screen shows temperature value, measurement unit and active alarms only. This is the first screen after power
Home
on or after exit from other status.
Virtual Keyboard This screen shows available functions. Activated function will blink when this screen is visualized.
Info This screen shows activated functions and regulation outputs (compressor, ventilators)
Programming Mode This screen enables the modification of the Set point or parameters.
Parameter Menu These screens enable the modification of all parameter values.
Set Point Menu This screen enables the modification of the Set Point value.
This screen is for creating the parameter label by swiping-up every single part of the label itself (first, second and third
X9
char)
USER INTERACTION
HOME NAVIGATION
H-SWIPE
TAP & HOLD
H-SWIPE
PRG
H-SWIPE
XR20-30-60-70T
Set Point
Temperature
DESCRIPTION
PROG MENU SET POINT TEMPERATURE
TAP & HOLD TAP & HOLD
ANYWHERE SET
TAP & HOLD
SET
H-SWIPE V-SWIPE
1/2
