Panasonic TH-P42UT30G Service Manual

Panasonic TH-P42UT30G Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TH-P42UT30D
Model No.
TH-P42UT30G
TH-P42UT30K
TH-P42UT30M
TH-P42UT30P
TH-P42UT30S
TH-P42UT30T
TH-P42UT30V
GPF14D-A Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PAVCTH1107046CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P42UT30G

Summary of Contents for Panasonic TH-P42UT30G

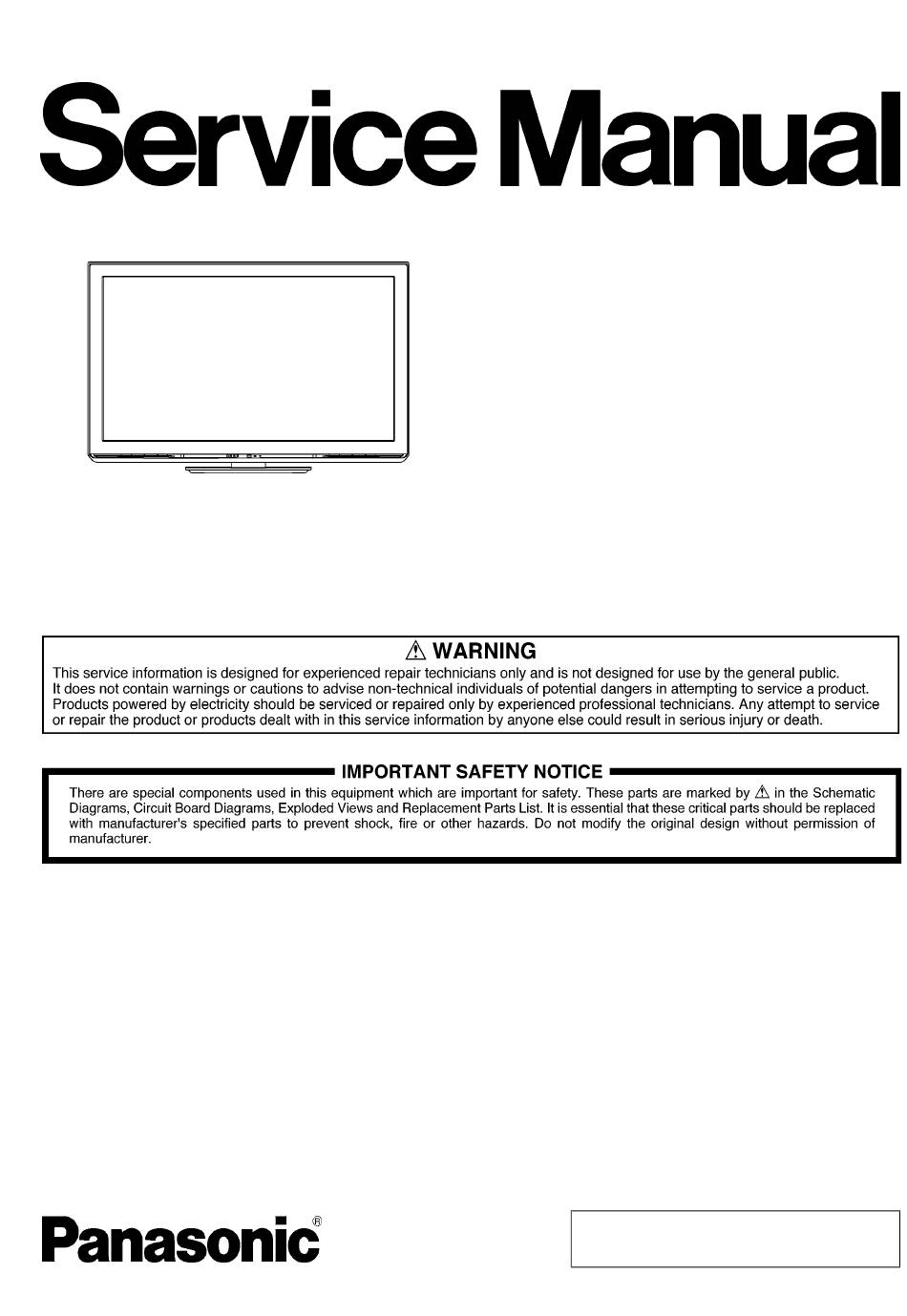

  • Page 1 ORDER NO.PAVCTH1107046CE Plasma Television TH-P42UT30D Model No. TH-P42UT30G TH-P42UT30K TH-P42UT30M TH-P42UT30P TH-P42UT30S TH-P42UT30T TH-P42UT30V GPF14D-A Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.1. Caution statement --------------------------------------- 41 1.1. General Guidelines ----------------------------------------3 11.2. Wiring (1) -------------------------------------------------- 41 11.3. Wiring (2) -------------------------------------------------- 42 1.2. Touch-Current Check--------------------------------------3 11.4. Wiring (3) -------------------------------------------------- 42 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) 11.5.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Non serviceable Data Driver (Lower Left) P-Board should be exchange for service Scan Drive Main AV input, processing Sustain Drive Remote receiver, Power LED, C.A.T.S. sensor 3D Eyewear transmitter...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 220 - 240 V, 50 / 60 Hz (Except P) AC 110 - 240 V, 50 / 60 Hz (P) Power Power Rating 280 W Standby condition 0.4 W Display panel Aspect Ratio 16:9 Visible screen size 106 cm (diagonal) 921 mm (W) ×...
  • Page 9 Dimensions (W × H × D) 1,023 mm × 671 mm × 288 mm (With Pedestal) 1,023 mm × 637 mm × 93 mm (TV only) Mass 26.5 kg Net (With Pedestal) 23.5 kg Net (TV only) Note • Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

  • Page 10: Technical Descriptions

    5 Technical Descriptions 5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One 5.1.1. General information: 1. EEPROM (IC8902) for spare parts has the seed of KEY for each. 2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902).

  • Page 11: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode 6.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds. Note: Service Mode can not be entered when 3D signal input.
  • Page 12 6.1.4. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 13: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 14: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Initial INPUT Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched press [AV] button of the remote control three times within...

  • Page 15: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 16 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 17 6.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 18: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 19: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 20: No Picture

    7.4. No Picture...

  • Page 21: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 22: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 8.4. Remove Side terminal cover 1. See PCB Layout (Section 3) 8.2. Remove the AC inlet 1. Remove the screws (×2 2. Remove the Side terminal cover. Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors.

  • Page 23: Remove The A-Board

    8.6. Remove the A-Board 8.8. Remove the SN-Board 1. Remove the Tuner unit. (See section 8.5.) 1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the , ×1 2. Remove the screws (×2 ) and remove the A- SN-Board.

  • Page 24: Remove The Stand Bracket And The Hanger Metals

    8.10. Remove the Stand bracket and 8.12. Remove the C1-Board the Hanger metals 1. Remove the Stand bracket and the Hanger metal R. (See section 8.10.) 1. Remove the Plasma panel section from the servicing 2. Disconnect the flexible cables (CB1, CB2, CB3, CB4, stand and lay on a flat surface such as a table (covered CB5, CB6 and CB7).

  • Page 25: Remove The Plasma Panel Section From The Cabinet Assy

    8.14. Remove the Plasma panel sec- 8.15. Remove the Attachment metal tion from the Cabinet assy bottom 1. Remove the Radiator plate. (See section 8.11.) 1. Remove the Plasma panel fastening screws (×4 ) and remove the Cabinet assy. 2. Remove the screws (×1 each) and remove the Attach- ment metal bottom (L, R).

  • Page 26: Remove The Glass Holders

    8.17. Remove the Glass holders 8.19. Remove the V-Board 1. Remove the Cabinet assy. (See section 8.14.) 1. Remove the Glass holder bottom. (See section 8.17.) 2. Remove the screws (×5 2. Remove the screw (×1 ) and remove the claws (×3 3.

  • Page 27: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 28 9.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. Note: And after SRQ-L, begin an adjustment 2 seconds later. Sub-contrast adjustment is unadjusted for AV/ HD input.
  • Page 29 Steps Remarks Another procedure Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later. Adjustment of HD system 1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below. 2.
  • Page 30 9.1.3. White balance adjustment The adjusting method is different according to the PEAKS EEPROM version. [copy adjustment] : Peaks EEPROM ver.1.00- [Differential and copy adjustment] : Peaks EEPROM ver.1.**- Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent) Steps...
  • Page 31 Steps Remarks [Differential and copy adjustment] Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side. Note: The adjustment does only color temp. [NORMAL]. A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by operat- ing a [OK] key.

  • Page 35: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR HDMI1-3 (HDMI2) ETHERNET DATA TMDS DATA LAN CON I/F ETHER PHY ETHERNET HDMI I/F SIF_OUT SIF I/F SD CARD DATA G/S ONLY SD CARD I/F SD CARD IFD_OUT TUNER TUNER I/F USB I/F USB 1-3 PEAKS-LDA3...

  • Page 36: Block (1/4) Diagram

    10.2. Block (1/4) Diagram JK8650 SPEAKER_L SPEAKER_R SD CARD D3050 (SIDE) DIGITAL JK8651 JK8531 JK8702 JK4601 JK4600 JK4602 AUDIO TU4801 USB1 USB2/3 ETHERNET ANT IN HDMI2 HDMI1 HDMI3 DIGITAL SIGNAL PROCESSOR TUNER DMD_IIC0 G/S ONLY IC8601 IC4900 Q4500 ETHER PHY AUDIO AMP SOUND15V X8600...

  • Page 37: Block (2/4) Diagram

    10.3. Block (2/4) Diagram DIGITAL SIGNAL PROCESSOR IC9300 VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA Sub Filed Processor P+3.3V P+1.1V IC9860 P+3.3V P+3.3V F15V SOS8_SS P+1.1V X9300 SOS8_SS 1.1V +1.1V 20MHz P+3.3V DATA DRIVER CONTROL +3.3V 3.3V IIC0...

  • Page 38: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD L601 D607 Q202,Q203 RC231 F201 T201 L602 D608 RC233 Vsus RESONANCE Vsus Q602-Q605 250V 4A CONTROL L251 RC251 SS11 Vsus Q252 Z201 P+15V RC232 CONTROL Z601 RESONANCE Vsus CONTROL Z251 VR251 VR261 Z231 PC201 Q231,Q232...

  • Page 39: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SUSTAIN DRIVE SCAN DRIVE TPVSUS TPVSUS Vsus Vsus P+15V D16618 MAIN H Q16607 IC16131 Q16001 CERS Q16002 IC16684 BUFFER CPH1 CPH1 BUFFER Q16600 TPSS1 IC16784,85 Q16041 IC16151 IC16501 PC16897 Q16601 IPD CIRCUIT Q16401 TPVAD BUFFER BUFFER T16471 Q16402 VAD GEN.

  • Page 41: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 42: Wiring (2)

    11.3. Wiring (2) 11.4. Wiring (3)

  • Page 43: Wiring (4)

    11.5. Wiring (4)

  • Page 44: Wiring (5)

    11.6. Wiring (5)

  • Page 45: Wiring (6)

    11.7. Wiring (6)
  • Page 46 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Schematic Diagram Note...
  • Page 47 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Replacement Parts List Note...
  • Page 48 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (1/13)
  • Page 49 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (2/13)
  • Page 50 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (3/13)
  • Page 51 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (4/13)
  • Page 52 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (5/13)
  • Page 53 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (6/13)
  • Page 54 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (7/13)
  • Page 55 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (8/13) S-10...
  • Page 56 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (9/13) S-11...
  • Page 57 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (10/13) S-12...
  • Page 58 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (11/13) S-13...
  • Page 59 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (12/13) S-14...
  • Page 60 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (13/13) S-15...
  • Page 61 Model No. : TH-P42UT30D/G/K/M/P/S/T/V K and V-Board S-16...
  • Page 62 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C1-Board (1/2) S-17...
  • Page 63 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C1-Board (2/2) S-18...
  • Page 64 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C2-Board (1/2) S-19...
  • Page 65 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C2-Board (2/2) S-20...
  • Page 66 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (1/6) S-21...
  • Page 67 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (2/6) S-22...
  • Page 68 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (3/6) S-23...
  • Page 69 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (4/6) S-24...
  • Page 70 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (5/6) S-25...
  • Page 71 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (6/6) S-26...
  • Page 72 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SS-Board (1/2) S-27...
  • Page 73 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SS-Board (2/2) S-28...
  • Page 74 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (Foil side) S-29...
  • Page 75 Model No. : TH-P42UT30D/G/K/M/P/S/T/V A-Board (Component side) S-30...
  • Page 76 Model No. : TH-P42UT30D/G/K/M/P/S/T/V K and V-Board S-31...
  • Page 77 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C1-Board S-32...
  • Page 78 Model No. : TH-P42UT30D/G/K/M/P/S/T/V C2-Board S-33...
  • Page 79 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (Foil side) S-34...
  • Page 80 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SN-Board (Component side) S-35...
  • Page 81 Model No. : TH-P42UT30D/G/K/M/P/S/T/V SS-Board S-36...
  • Page 82 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TZTNP01MVUD A-PRINT COMPLETE 1 (D) (RTL)PAVCTH TZTNP01NEUG A-PRINT COMPLETE 1 (G) (RTL)PAVCTH TZTNP01NAUM A-PRINT COMPLETE 1 (K) (M) (T) (V) (RTL)PAVCTH TZTNP01NFUP A-PRINT COMPLETE 1 (P) (RTL)PAVCTH TZTNP01NAUS A-PRINT COMPLETE...
  • Page 83 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C3046 ECJ1VB1A105K C 1UF, 10V C3047 F1J1A106A043 C 10UF, 10V C3048 ECJ1VB1A105K C 1UF, 10V C3049 ECJ1VB1A105K C 1UF, 10V C3053 F1J1A106A043 C 10UF, 10V C3054 F1G1C104A077 C 0.1UF 16V...
  • Page 84 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4928 F1J1E4740001 C 0.47UF, 25V C4929 F1J1E4740001 C 0.47UF, 25V C4930 F1G1C104A077 C 0.1UF 16V C4931 F1G1C104A077 C 0.1UF 16V C4941 F1J1A106A043 C 10UF, 10V C4942 F1J1A106A043 C 10UF, 10V...
  • Page 85 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8017 F1J1A106A087 C 10UF, 10V C8018 F1G1C104A077 C 0.1UF 16V C8019 F1G1C104A077 C 0.1UF 16V C8020 F1G1C104A077 C 0.1UF 16V C8021 F1G1C104A077 C 0.1UF 16V C8022 F1J1A106A087 C 10UF, 10V...
  • Page 86 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8224 F1G1C104A077 C 0.1UF 16V C8225 F1G1C104A077 C 0.1UF 16V C8226 F1G1C104A077 C 0.1UF 16V C8227 F1G1C104A077 C 0.1UF 16V C8300 F1G1H100A565 C 10PF 50V C8301 F1G1H100A565 C 10PF 50V...
  • Page 87 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8773 F1K1E106A136 C 10UF, 25V C8774 F1K1E106A136 C 10UF, 25V C8775 F1G1C223A081 C 0.022UF, 16V C8776 F1G1E1030005 C 0.01UF 25V C8777 F1G1E1030005 C 0.01UF 25V C8779 F1K0J226A049 C 22UF, 6.3V...
  • Page 88 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9873 F1G1E122A123 C 1200pF 25V C9874 F1G1C104A077 C 0.1UF 16V C9875 F1G1C104A077 C 0.1UF 16V C9876 F1K1E106A136 C 10UF, 25V C14602 F1H1C105A145 C 1 uF 16 V C14603 F1G1H1020008 C 1000PF 50V C14605 F1G1H391A731...
  • Page 89 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16201 F0C2E405A278 C 4UF, 250V C16202 F0C2E405A278 C 4UF, 250V C16242 F1H1C105A145 C 1 uF 16 V C16243 ECJ1VB1H103K C 0.01UF, 50V C16244 F1J1A106A087 C 10UF, 10V C16271 F2A1E221B726 E 220UF, 25V...
  • Page 90 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16770 F1H1C105A145 C 1 uF 16 V C16791 F2A1E221B726 E 220UF, 25V 1 PAVCTH C16793 F2A1E221B726 E 220UF, 25V 1 PAVCTH C16794 F1J1A106A087 C 10UF, 10V C16795 F2A1E221B726 E 220UF, 25V 1 PAVCTH...
  • Page 91 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C17226 F1K2A224A033 C 0.22UF, 100V C17229 F1K2A224A033 C 0.22UF, 100V C17230 F1K2A224A033 C 0.22UF, 100V C17233 F1K2A224A033 C 0.22UF, 100V C17235 F1K2A224A033 C 0.22UF, 100V C17236 F1K2A224A033 C 0.22UF, 100V C17239 ECJ1XC1H102J...
  • Page 92 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D14852 B0ECKM000046 DIODE D14853 B0ECKM000046 DIODE D14902 B0ACCJ000048 DIODE D14903 B0ACCJ000048 DIODE D14904 B0ADCJ000100 DIODE D16001 B0ECLP000010 DIODE 1 PAVCTH D16002 B0ECLP000010 DIODE 1 PAVCTH D16021 B0ECLP000010 DIODE 1 PAVCTH...
  • Page 93 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16642 B0FCCN000004 DIODE D16645 DZ2J150M0L ZENER DIODE D16646 DZ2J150M0L ZENER DIODE D16647 DZ2J150M0L ZENER DIODE D16648 DZ2J043M0L ZENER DIODE D16651 DZ2J051M0L ZENER DIODE D16652 B0ECKP000055 DIODE D16662 DZ2J150M0L ZENER DIODE...
  • Page 94 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC8901 TVR***1S 1 (S) PAVCTH IC8901 TVR***1T 1 (T) PAVCTH IC8901 TVR***1V 1 (V) PAVCTH IC8902 TVR***2D 1 (D) PAVCTH IC8902 TVR***2G 1 (G) PAVCTH IC8902 TVR***2K 1 (K) PAVCTH IC8902 TVR***2M...
  • Page 95 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC16792 C0BBAA000008 LINEAR IC IC16793 C0DBZMC00006 IC16795 C0CBALC00012 IC16921 C1ZBZ0004292 IC17102 C0JBAU000088 IC17201 C0JBAU000088 IC17202 C0JBAU000089 JK3000B K1U920A00003 CONNECTOR UNIT JK3001 K2HC103E0030 JACK 1 PAVCTH JK3300 K1FY315A0010 CONNECTOR JK3701 K1U308B00003...
  • Page 96 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L8006 J0JCC0000287 CHIP INDUCTOR L8007 J0JCC0000287 CHIP INDUCTOR L8100 G1C4R7MA0416 INDUCTION COIL L8102 G1C3R3MA0460 INDUCTION COIL L8532 J0JHC0000045 CHIP INDUCTOR L8533 J0JHC0000045 CHIP INDUCTOR L8600 J0JHC0000045 CHIP INDUCTOR...
  • Page 97 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q9860 B1MBEDA00027 Q9861 B1MBEDA00027 Q16001 DG3C3010CL TRANSISTOR Q16002 DG3C3010CL TRANSISTOR Q16021 DG3C3010CL TRANSISTOR Q16022 DG3C3010CL TRANSISTOR Q16041 DG3C3020CL TRANSISTOR Q16051 DG3C3020CL TRANSISTOR Q16055 B1HFPFA00001 TRANSISTOR Q16056 B1HFPFA00001 TRANSISTOR...
  • Page 98 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R1101 D0GA473JA015 M 47KOHM, J,1/16W R1102 D0GA683JA023 M 68KOHM, J,1/16W R1115 D0GA103JA015 M 10KOHM,J,1/16W R1117 D1BA7151A014 M7.15KOHM,J.1/16 W R1118 D0GA102JA023 M1KOHM, J.1/16 W R2051 D1BA6651A014 M6.65KOHM,J.1/16 W 1 PAVCTH...
  • Page 99 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R3302 D1BD75R0A066 M 75.0 OHM,F.1/8 W R3303 D1BD75R0A066 M 75.0 OHM,F.1/8 W R3304 D0GDR00J0004 M 0 OHM, 1/8W R3305 D0GDR00J0004 M 0 OHM, 1/8W R3313 D0GA472JA023 M 4.7KOHM, J,1/16W...
  • Page 100 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4942 D1BB1403A055 M 140KOHM,J.1/10W R4971 D0GA103JA015 M 10KOHM,J,1/16W R4973 D0GA473JA015 M 47KOHM, J,1/16W R4975 D0GA103JA015 M 10KOHM,J,1/16W R4976 D0GA103JA015 M 10KOHM,J,1/16W R4977 D0GA103JA015 M 10KOHM,J,1/16W R4978 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 101 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8206 D1BA1001A014 M 1KOHM,F. 1/16 W R8207 D1BA1001A014 M 1KOHM,F. 1/16 W R8208 D1BA1001A014 M 1KOHM,F. 1/16 W R8209 D0GA111JA023 M 110 OHM, J.1/16W R8210 D0GA111JA023 M 110 OHM, J.1/16W...
  • Page 102 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8629 D0GA560JA023 M 56 OHM, J,1/16W R8630 D0GA560JA023 M 56 OHM, J,1/16W R8631 D0GA560JA023 M 56 OHM, J,1/16W R8632 EXB28V560JX M 56 OHM 1/32 W R8633 D0GA560JA023 M 56 OHM, J,1/16W...
  • Page 103 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8821 D0GA473JA015 M 47KOHM, J,1/16W R8824 D0GA103JA015 M 10KOHM,J,1/16W R8831 D0GA103JA015 M 10KOHM,J,1/16W R8835 D0GA103JA015 M 10KOHM,J,1/16W R8838 D0GA103JA015 M 10KOHM,J,1/16W R8839 D0GAR00J0005 M 0 OHM, 1/16W R8843 D0GA103JA015 M 10KOHM,J,1/16W...
  • Page 104 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R9308 D0GA470JA023 M 47 OHM, J,1/16W R9320 D0GA331JA023 M 330 OHM, J,1/16W R9321 D0GA105JA023 M 1M OHM, J,1/16W R9324 D0GB122JA065 M 1.2KOHM J 1/10W R9325 D0GB122JA065 M 1.2KOHM J 1/10W...
  • Page 105 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16134 D0GD750JA059 M 75 OHM,J,1/4W R16135 D0GB4R7JA065 M 4.7 OHM J 1/10W R16137 D0GZ1R0JA020 M 1 OHM, J,1/2W R16138 D0GF561JA047 M 560 OHM,J, 1/3W R16141 D0GD100JA059 M 10 OHM,J,1/4W R16143 D0GB473JA065...
  • Page 106 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16422 D0GF7R5JA047 M 7.5 OHM,J, 1/3W R16441 D0GF5R6JA047 M 5.6 OHM,J, 1/3W R16451 D0GF5R6JA047 M 5.6 OHM,J, 1/3W R16466 D0GF473JA048 M 47KOHM,J,1/3W R16467 D0GF473JA048 M 47KOHM,J,1/3W R16471 D0GB392JA065 M 3.9KOHM,J,1/10W...
  • Page 107 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16601 D0GF1R0JA047 M 1 OHM,J,1/3W R16604 D0GD331JA052 M 330 OHM,J,1/8W R16605 D0GD220JA059 M 22 OHM,J,1/4W R16606 D0GD223JA052 M 22KOHM,J,1/8W R16607 D1BB5111A055 M5.11KOHM,J.1/10W R16608 ERG2FJS153D M 15KOHM, J, 2W R16609 D0GF102JA047 M 1.0 KOHM,J,1/3W...
  • Page 108 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16838 ERG2FJS104D M 100KOHM, J, 2W R16841 D0GB472JA065 M 4.7KOHM, J,1/10W R16842 D0GD102JA052 M 1.0KOHM,J,1/8W R16844 ERA6YEB242 M 2.4KOHM, B 1/10W R16845 D1BD6982A077 M69.8KOHM,D.1/10W R16846 D1BD6042A077 M60.4KOHM,D.1/10W R16847 D1BD6492A077...
  • Page 109 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17135 D0GB681JA065 M 680 OHM,J,1/10W R17138 EXB38V470J M 47 OHM 1/16 W R17139 EXB38V470J M 47 OHM 1/16 W R17140 EXB38V681J M 680 OHM 1/16 W R17141 D0GB681JA065 M 680 OHM,J,1/10W R17142 D0GF223JA047...
  • Page 110 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17254 D1BB49R90002 M 49 OHM,J.1/10W R17255 D1BB49R90002 M 49 OHM,J.1/10W R17256 D1BB49R90002 M 49 OHM,J.1/10W RM2810 B3RAD0000168 REMOTE SENSOR K1KY02B00012 2P CONNECTOR SN20 K1MY35BA0345 35P CONNECTOR SN21 K1MND6BA0264...
  • Page 111 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Exploded View 1 S-66...
  • Page 112 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Exploded View 2 S-67...
  • Page 113 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Packing 1 S-68...
  • Page 114 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Packing 2 S-69...
  • Page 115 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks K2AHYH000041 AC-INLET WITH CABLE 1 PAVCTH K2CN3YY00006 AC CORD 1 (G) (V) K2CT3YY00021 AC CORD 1 (K) (M) (S) K2CT3YY00033 AC CORD 1 (P) K2CZ3YY00010 AC CORD 1 (D)
  • Page 116 Model No. : TH-P42UT30D/G/K/M/P/S/T/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TQB4TC0126 INSTRUCTION BOOK(ENGLISH) 1 (G) (S) PAVCTH TQB4TC0127 INSTRUCTION BOOK(INDONESIA) 1 (G) PAVCTH TQB4TC0128 INSTRUCTION BOOK(S-CHINESE) 1 (K) PAVCTH TQB4TC0129 INSTRUCTION BOOK(VIETNAMESE) 1 (V) PAVCTH TQB4TC0130 INSTRUCTION BOOK(S-CHINESE) 1 (S) PAVCTH...
