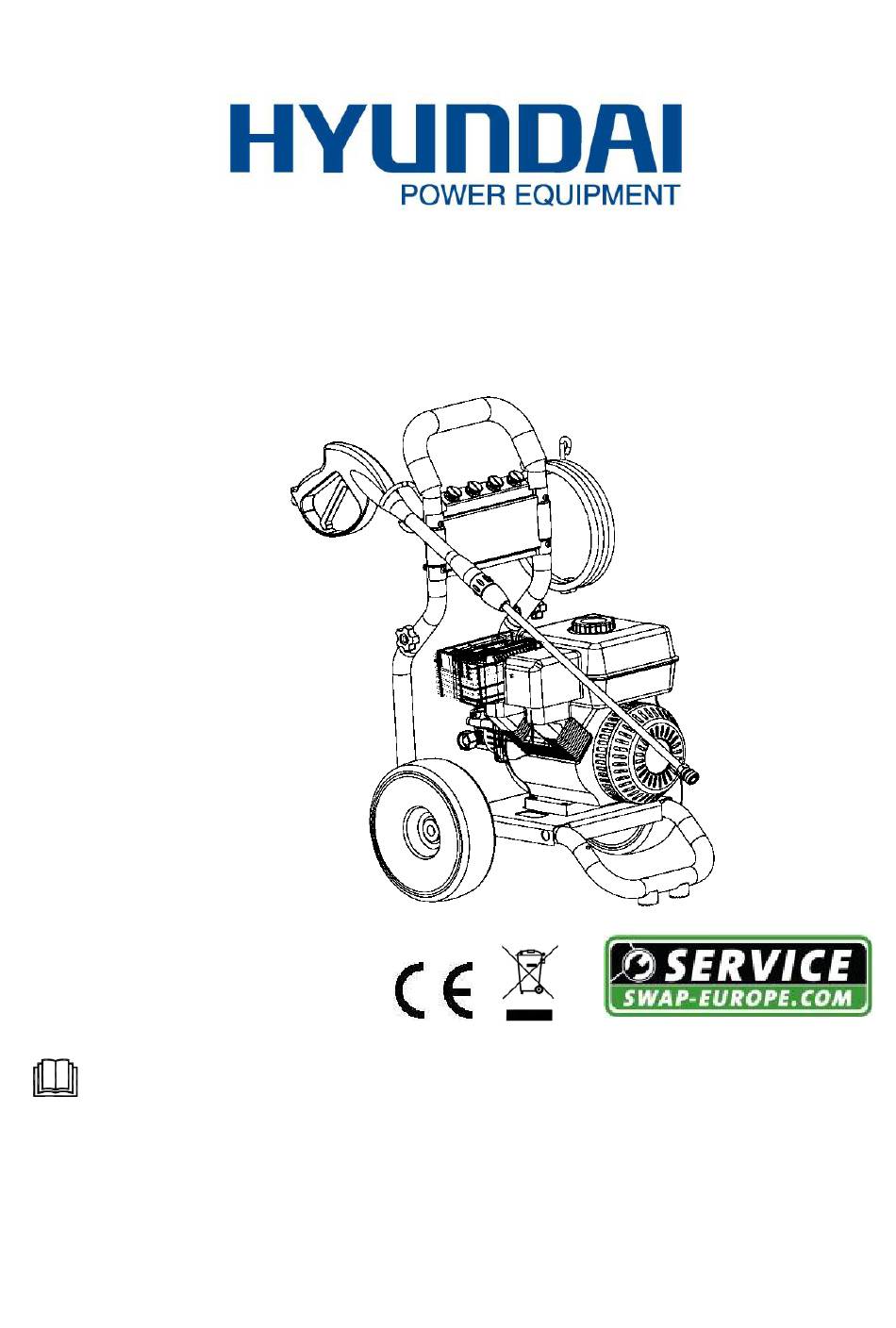

- Page 1 Original instruction manual Thermal High-Pressure Cleaner Model: HNHPT206B-A2 Warning: Please read the instructions before using this device. HYUNDAI 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Licensed by Hyundai Corporation, Korea...
- Page 2 Original instruction manual...
- Page 3 Original instruction manual Intended use This device is a high thermal pressure cleaner gasoline, designed for external maintenance works. It has four pipes which have 0 °, 15 °, 40 °, high pressure angles respectively. The other pipe is to be used for the detergent. Use SP98 petrol;...
- Page 4 Original instruction manual disassembly, repair or inspection should be carried out exclusively by a qualified person. ⚫ WARNING: This machine is intended for use with a cleaning agent supplied or recommended by the manufacturer. Use of other cleaning or chemical agents may affect the safety of the machine.
- Page 5 Original instruction manual other functions by removing the power source plug. ⚫ WARNING: Do not operate the machine if any important parts are damaged, such as safety devices, high pressure hoses or the trigger gun. ⚫ WARNING Do not use combustion engine powered machines indoors unless adequate ventilation is assessed by national labour authorities.
- Page 6 Original instruction manual ⚫ Handle the unit with care, do not drop it. ⚫ Do not use the machine in extreme weather conditions, when it is very cold. Do not use the machine with ice water. ⚫ Use the tool in a stable and plane location. ⚫...
- Page 7 Original instruction manual kickback and can produce a loss of control of the gun and create accidents and injuries. Hold the gun firmly, and with both hands if possible. The kickback forces exceed 20N. ⚫ WARNING Always switch off the mains disconnecting switch when leaving the machine unattended.
- Page 8 Original instruction manual Carefully follow the instructions when using this machine. • Read all instructions before using the machine. • Be warned against the risk of fire! Do not add gasoline while the engine is running. Do not exceed the amount of fuel provided for the operations Do not operate the machine if fuel has been spilled, if there was gasoline spill, change location, and wait until the device is dry before restarting it.
- Page 9 Original instruction manual • If the device is not properly used, the high pressure spray will be dangerous. The device must not be in direct contact with the human body, animals, and electrical devices. This machine is designed to use only cleaning agents supplied or recommended by the manufacturer. Using other detergents or chemicals can impair the safety of the machine.
- Page 10 Original instruction manual 21. Wear protective equipment to protect against projections and noises such as anti-dust mask, safety glasses, hearing protection, a hard hat and anti-slip shoes. NOTE: gun safety lock prevents the trigger from accidentally operating, yet this device does not lock the trigger in the opposite direction.
-
Page 11: Water Supply
Original instruction manual Water Supply Warning! NOT TO BE CONNECTED WITH HOT WATER. ■ the water pipe should be a minimum diameter of 19mm ■ the water supply speed must be greater than 6.2 minute litters. ■ Flow rate can be determined by filling a container in a minute. ■... -
Page 12: Explanation Of Symbols
Original instruction manual Explanation of symbols: Guarantee noise level WARNING. HOT SURFACE. DO NOT TOUCH. Put on a hearing protector. Do not turn the gun towards people, animals or the supply means This machine is not suitable for connection to potable water supply. - Page 13 Original instruction manual Names of different constituents 1. Ducts 2. Gun 3. flexible 4. Binding of handlebar 5. Engine 6. Water inlet fitting 7. Wheel 8. Launcher Assembling instructions: Step 1: Insert the handlebar into the frame tubes of the high pressure cleaner by aligning the holes, put the bolts and tighten.
- Page 14 Original instruction manual Step 3: Set the nozzle on the gun Step 4: Connect the hose to the water connecting outlet of the high- pressure cleaner. Step 5: Connect the water supply hose to the cleaner water inlet connection.
- Page 15 Original instruction manual Operating instructions 1. Check the engine oil level. The oil must reach the max mark engraved on the lower edge of the neck of the oil filler, or use the mark maximum on the gauge. Refer to the engine user manual After 5 hours of use, drain the machine, change the oil, then drain every 50 hours .
- Page 16 Original instruction manual Starting the engine. Lever register 2 Close 5. Move the choke lever to the "ON" position 6. Open the fuel tap 7. Push the throttle lever towards the left...
- Page 17 Original instruction manual 8. Turn the switch on the device to "ON" Information: Do not use the choke if the engine is hot or if the atmospheric temperature is high. NOTE: Do not turn the engine when the oil level is too high or too low; this may damage the engine.
- Page 18 Original Instruction manual Stopping the engine . Push the throttle lever to the far right Turn the engine switch on the "OFF" Close the fuel tap 4. Close the water supply tap...
- Page 19 Original Instruction manual 5. Pull the trigger to release water pressure 6. Disconnect the water hose from the water cleaner inlet connection entry. 7. Disconnect the high pressure hose from the water outlet fitting of the water cleaner. 8. Engage the trigger lock tab. Do not turn the pump without water for more that 5 minutes...
- Page 20 Original Instruction manual Extended storage: Remove all water connections Allow the cleaner to function for a few seconds in order to remove the remaining water. Drain the fuel from the cleaner. Be careful not to bend the flexible high pressure. Keep the cleaner and accessories in a place where the temperature does not drop to -0 °.
- Page 21 Original Instruction manual Cleaning of concrete, brick and stone (With or without detergent) Clean the surface with fresh water. If using detergent, place detergent suction tube directly into cleaning solution and apply detergent on the surface with the low pressure nozzle. For best results, limit the cleaning area to smaller sections, and always apply detergent from bottom to top, allow the detergent to react for 1-3 minutes.
- Page 22 Original Instruction manual Problem resolution: Before each maintenance and repair, disconnect the power supply before doing any maintenance or repair. Breakdowns Possible reasons Solution During start up, the engine does No fuel Fill the fuel tank not start Oil level is very low Add oil The choke is not in the right Move the starter to "ON"...
-
Page 23: Maintenance
Original Instruction manual Maintenance Normal maintenance • The connection hose, spray gun and hose must be inspected and cleaned regularly to avoid blockage or leakage. • To clean the nozzle, separate the launchers of the spray gun, clean the nozzle with a piece of stiff wire or paper clip to remove dirt, then let water pass through the nozzle and then, back to the spear gun. - Page 24 Original Instruction manual 5. Clean fuel tank and filter it every 100 hours of use; • Open the cap of the fuel tank, remove the fuel filter and use a brush to clean. • Clean the tank; remove dirt and stagnant water. •...
- Page 25 Original Instruction manual LOCK FRAME FOOT RUBBER PLUG WHEEL ENGINE AXIAL PUMP ASPIRATION DETERGENT SUPPORT NOZZLE NOZZLE, 0 ° NOZZLE, 15° NOZZLE, 40° DETERGENT NOZZLE FOAM HANDLE CONNECTION LANCE HIGH PRESSURE HOSE BRASS CONNECTOR...
- Page 26 Original Instruction manual Technical characteristics Model HNHPT206B-A2 Pump model Axial pump Nominal pressure 18,6 MPa Maximum pressure 20,7 MPa Normal speed 8,2 l/min Maximum speed 9,1 l/min Min/Max water level 0,5 / 1,0 MPa Maximum nominal 60°C temperature Quick installation of nozzles 0°, 15°, 40°...
-
Page 27: Declaration Of Conformity
ZI, 32 rue Aristides Bergès – 31270 Cugnaux - France Declares that the machine designated below: Thermal High-Pressure Cleaner Model: HNHPT206B-A2 Serial number: Head of technical file: Mr Michel Krebs Complies with the provisions of the directives ‘‘machine’’ 2006/42/CE and national regulations transposing it;...
