Fresh Air - Daikin Modular T Installation Manual

Right Handling
VERSION MACHINES
ATB**R**

FRESH AIR

coupling
(not provided)
D *
D*
= diameter of ducts
D
(e.g. if = 250 mm
1

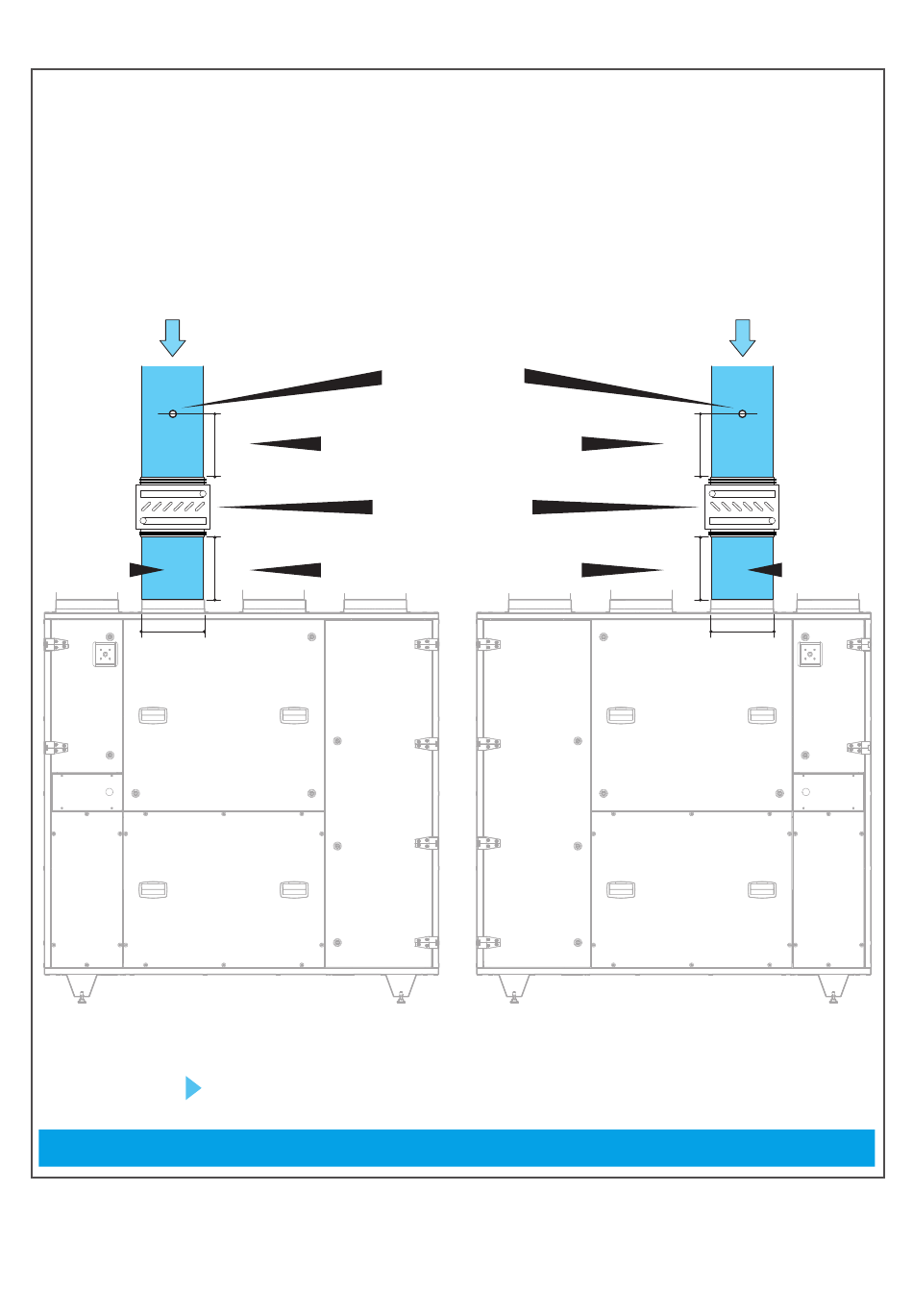

Correct distance
4
Suggested distance between temperature
1xD
probe and water pre-heating coil
Suggested distance between water pre-
1xD
D D
1x = 250 mm, 2x
= 500 mm....)
Temperature probe
Pre-heating water coil
heating coil and unit
Left handling
VERSION MACHINES
ATB**L**
FRESH AIR
1xD
coupling
1xD
(not provided)
D *
