We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com
These instructions apply only to the destination countries listed on the appliance's data plate.

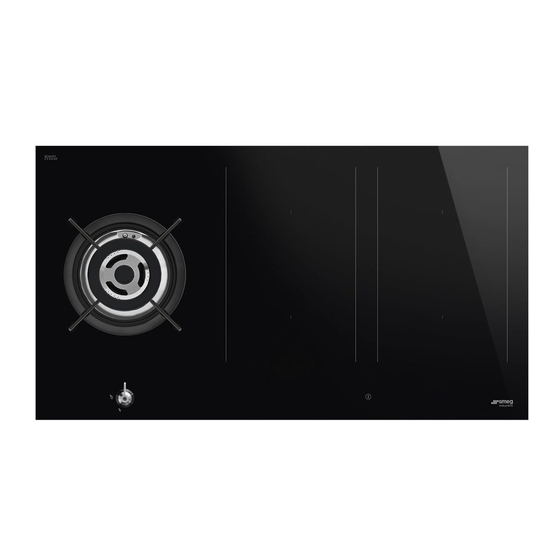

This is a class 3 built-in hob.
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• Protect hands with heat resistant
gloves during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
used by children aged 8 years
and over, and by people of
91477A880/A
33
33
37
38
38
39
39
39
39
39
39
40
40
41
41
41
42
42
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
43
44
46
49
51
51
51
51
52
52
52
56
56
57
59
59
60
61
PRECAUTIONS - 33
Advertisement
Table of Contents
Related Manuals for Smeg Classic PM3953D
Summary of Contents for Smeg Classic PM3953D
-
Page 1: Table Of Contents
We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com These instructions apply only to the destination countries listed on the appliance's data plate. - Page 2 • Cleaning and maintenance they overheat. Do not leave the must not be carried out by appliance unattended while unsupervised children. preparing foods containing oils • Make sure that the flame- or fats. If fats or oils catch fire, spreader crowns are correctly never put water on them.
- Page 3 immediately after use. and call Technical Support. • Do not pull the cable to unplug • People who have pacemakers the appliance (if present). or other similar devices fitted • DO NOT USE AEROSOLS IN must make sure that the THE VICINITY OF THIS operation of these devices is APPLIANCE WHILST IT IS IN...
- Page 4 removers and metallic substances such as lemon juice sponges) on glass parts. or vinegar on the hob. • Use wooden or plastic utensils. • Do not spill sugar or sweet • Do not sit on the appliance. mixtures on the hob during •...
-
Page 5: Installation
Installation • The gas connection hoses must not come into contact with • THIS APPLIANCE MUST NOT moving parts of the built-in BE INSTALLED IN BOATS OR module (for example a drawer) CARAVANS. and must not be routed through • This appliance must not be a space that could cause it to installed on a dishwasher. -
Page 6: Appliance Purpose
additional electrical appliance is working correctly appliances. Connection cables (rotation of knobs, positioning must not come into contact with of the pan supports etc.) only hot cooking zones. once it has been installed and • The tightening torque of the secured to the unit. -
Page 7: Manufacturer's Liability
Energy efficiency information system, and as such, all that appears on the display may differ from those in the manual. The information according to the European ecodesign directive can be found in a separate Manufacturer’s liability document together with the product instructions. The manufacturer declines all liability for This information can be found in the "Product damage to persons or property caused by:... -
Page 8: Description
DESCRIPTION General description 1. Control panel Pause button: pauses cooking. 2. Rear hot plate Controls lock button: prevents accidental 3. Front hot plate 4. Rapid burner operation of controls. (AUX) 5. Auxiliary burner Grill function button: activates the Grill (UR) 6. -
Page 9: Accessories
Advantages of induction cooking the automatic control will appear on the display. The appliance is equipped with an induction generator for each cooking zone. Each generator located under the glass ceramic cooking surface creates an electromagnetic field which induces a thermal current in the base of the pan. This means the heat is no longer transmitted from the hob to the pan but created directly inside the pan by the... -
Page 10: Preliminary Operations
appliances and do not remove plugs from • Cookware in multilayer stainless steel, ferritic power sockets. Do not use phones or stainless steel and aluminium with a special mobile phones inside the building. base. • Open the window in order to ventilate the Unsuitable cookware: room. -
Page 11: Basic Functions
various types of cooking. appliance is switched off automatically and "ER21" is displayed (see "error codes") Power level Suitable for: Correct positioning of the flame-spreader OFF setting crowns and burner caps Cooking small quantities of food 1 to 2 (minimum power) 3 to 4 Cooking Cooking large quantities of food,... -
Page 12: Using The Hob
indicator lights and the displays for a few Adjusting the cooking zones seconds. Afterwards, the appliance can be After placing a pan and ensuring that the zone used normally. has been activated: 1. Place a finger on the left-hand side of the Using the hob scroll bar of the cooking zone to be used. - Page 13 1. Place a finger on the scroll bar at Double Booster Function approximately the required power level. See General safety instructions. The Double Booster function allows more power to be supplied compared to the Booster function. After having activated the Booster function for a cooking zone, press the far right of the scroll bar again.
-
Page 14: Special Functions
the amount of food and consumer taste. It is only possible to activate the Multizone function between cooking Power level Suitable for: zones that are vertically connected (2 Reheating food, keeping small and 3). amounts of water on the boil, 1 - 2 and whipping up sauces with If a large, oval or oblong pan is being used,... - Page 15 Grill Function 1. Press the button. This function is used to activate the 2. Each subsequent press of the button Bridge function automatically for the increases the hood fan speed according to right zones only. It is used when using a a cyclic sequence with 5 levels of griddle or cooking with long pans.
- Page 16 After selecting a cooking zone: 2. Use the buttons to change • Press and hold (1 to 8) power levels for at least 3 seconds. minute minder time or reset it to zero. • appears on the display of the cooking 3.
-
Page 17: User Menu
4. After 10 seconds, the timer will start the new followed by a sequential number. countdown or will be deactivated. Option Description Recall Function Maximum total power (kW) This is used to restore some functions Option not selectable that have already been started after the appliance has been switched off Button volume unintentionally. - Page 18 Option U2 modifies the volume of the button then the one of the rear zone. sounds; 4 sound levels can be selected using the scroll bar. According to the adjustment range of each option, the scroll bar will show only those segments that correspond to the adjustments available for each option.
-
Page 19: Error Notifications
or “Er” followed by a series of digits (e.g. “Er47- 1. Press the button. Any modifications will 30”). be discarded and the hob will be switched Errors coded as: off. • “E02” • “E2” 2. Press and hold the On/Off button for at •... -
Page 20: What To Do If
Weekly cleaning After cleaning, dry the appliance Clean and maintain the hob once a week using thoroughly to prevent any water or an ordinary glass ceramic cleaning product. detergent from interfering with its Always follow the manufacturer’s instructions. operation or creating unsightly marks. The silicon in these products creates a protective, water-repellent membrane which What to do if... - Page 21 “Adaptation to different types of gas”. The Connection to LPG appliance's gas connector has a ½” external thread (ISO 228-1). Connection with a steel hose Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard.
- Page 22 issue a certificate of conformity. 2. Remove the grids from the hob top. 3. Remove the flame-spreader crowns and relative burner caps. 4. Unscrew the screws under each burner to Extraction using a hood remove the fixing plate. Extraction without a hood Extraction with a single natural draught chimney Extraction with a single chimney with...
- Page 23 2. Use a spanner to remove the nozzles C and install the new ones for the required gas supply, following the indications given in the relevant table (see “Gas types and countries” or “Burner and nozzle characteristics tables”). The nozzle tightening torque must be no more than 3 Nm.
-
Page 24: Gas Types And Countries
spindle clockwise all the way. Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label on the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present). Gas types and Countries Gas types 1 Natural Gas G20... -
Page 25: Section Cut From The Countertop
3 Natural Gas G25.1 - 25 mbar UR2 int. Rated heating capacity (kW) Nozzle diameter (1/100 mm) 1400 1800 Reduced flow rate (W) Primary air (mm) 4 Natural Gas G2.350 - 13 mbar UR2 int. Rated heating capacity (kW) Nozzle diameter (1/100 mm) 1400 1800 Reduced flow rate (W) - Page 26 instructions. Appliance overall dimensions (mm) • If the appliance is to be installed above an oven, the oven must be fitted with a cooling fan. Appliance dimensions (mm) Position of gas and electrical connections. After laying the adhesive seal (A) on the glass surface and after positioning and securing the hob, fill the edges with insulating silicone (B) and wipe away any excess.
-
Page 27: Mounting
edge of the hob before assembly. base using suitable equipment. Do not use silicone to secure the hob. opens on bottom: This would make it impossible to remove the hob without damaging it. Mounting On top of oven built-in unit The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air... -
Page 28: Electrical Connection
Position of slot for clips 65 - 75 cm models: • 220 - 240 V 1N~ 3 x 1.5 mm² three-core cable. 90 cm models: • 220 - 240 V 1N~ 6 x 1.5 mm² six-core cable. • 380 - 415 V 2N~ Electrical connection 6 x 1.5 mm²... -
Page 29: Instructions For The Installer
For the Australian/New Zealand market: The circuit breaker incorporated in the fixed connection must comply with AS/NZS 3000. Connection with plug and socket Make sure that the plug and socket are of the same type. Avoid using adapters, gang sockets or shunts as these could cause overheating and a risk of burns.
