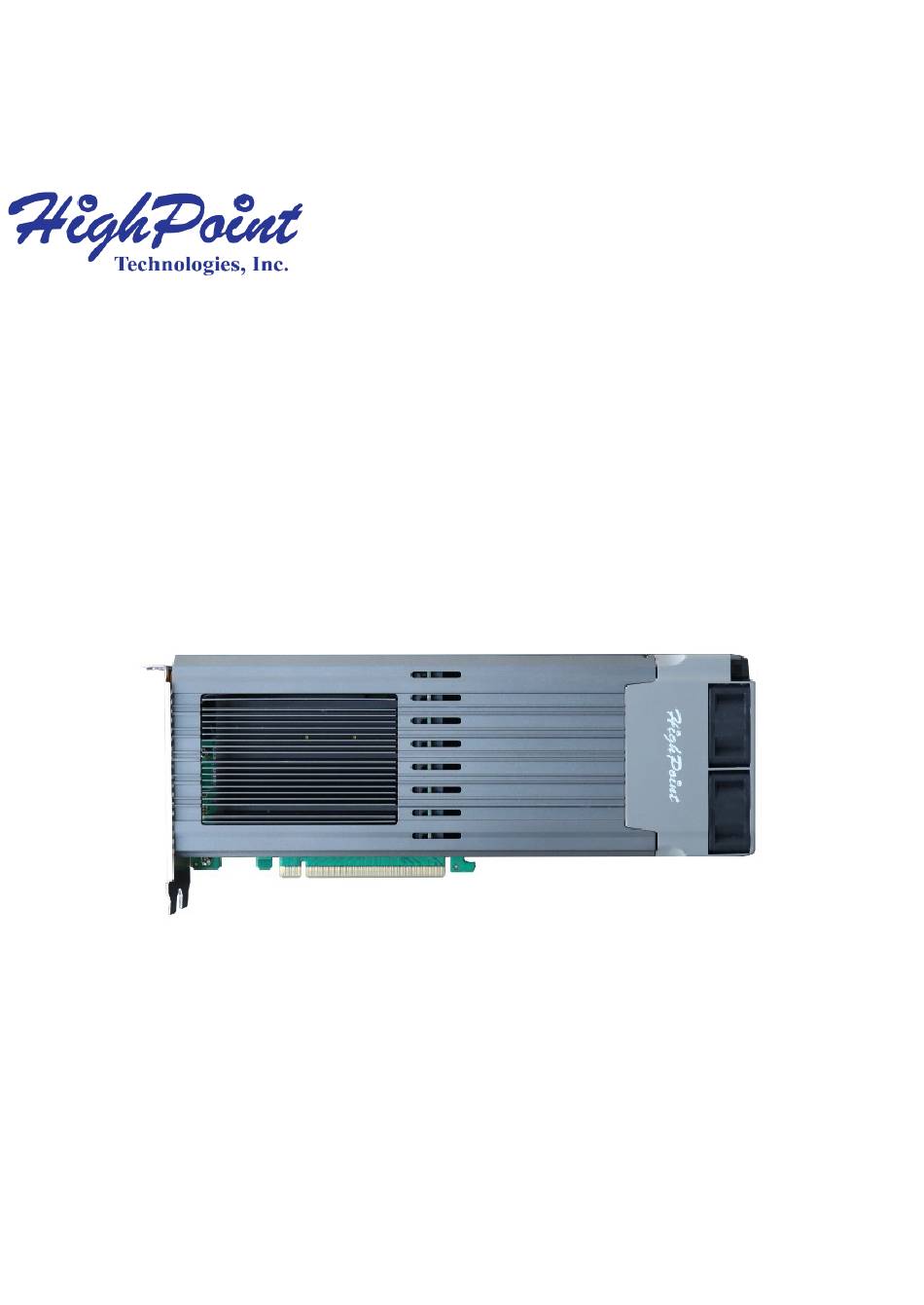

- Page 1 SSD7749E 8x E1.S Port to PCIe 4.0x16 NVMe RAID Controller Quick Installation Guide...
-
Page 2: System Requirements
• RHEL/Debian/Ubuntu/Fedora/Proxmox/ Rocky Linux • (Linux kernel 3.10 and later) Arch Linux (Kernel 5.17.5 and above) • macOS 10.13.6 ~ macOS 13.x • ARM Platform (NVIDIA model, Support Linux) • Kit Content SSD7749E Controller Card • Quick Installation Guide •... - Page 3 SSD7749E Hardware Front View Full-Length anodized aluminum heat sink Full Height form factor External power port Low-Noise Cooling Fan PCIe 4.0 x16 Host Interface...
-
Page 4: Hardware Installation
Hardware Installation Step 1. Apply pressure to release the lock, turn it counter-clockwise. Step 2. Gently insert the SSD into the slot. PORT1 PORT8... - Page 5 Note: Make sure the SSD contacts (“golden fingers”) are clean prior to installation. Step 3. Align the fan module and press down to secure. Note: Make sure the SSDs are carefully, but securely installed into each E1.S port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
- Page 6 SSD7749E relies on two power sources to support eight SSDs; power supplied through the PCIe bus, and power from the system’s PSU via an external 6 pin PCIe power cable. If the external cable is not connected, there will be insufficient power to support all 8 SSD’s;...
- Page 7 Resources A variety of manuals, guides and FAQs are available for the SSD7749E RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/ssd7749e-overview...
-
Page 8: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7749E, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
