2. Hardware Introduction

2.1 Switch Front Panel

P1 P2 Alarm
10/100TX
LNK/
ACT
ISW-504PT

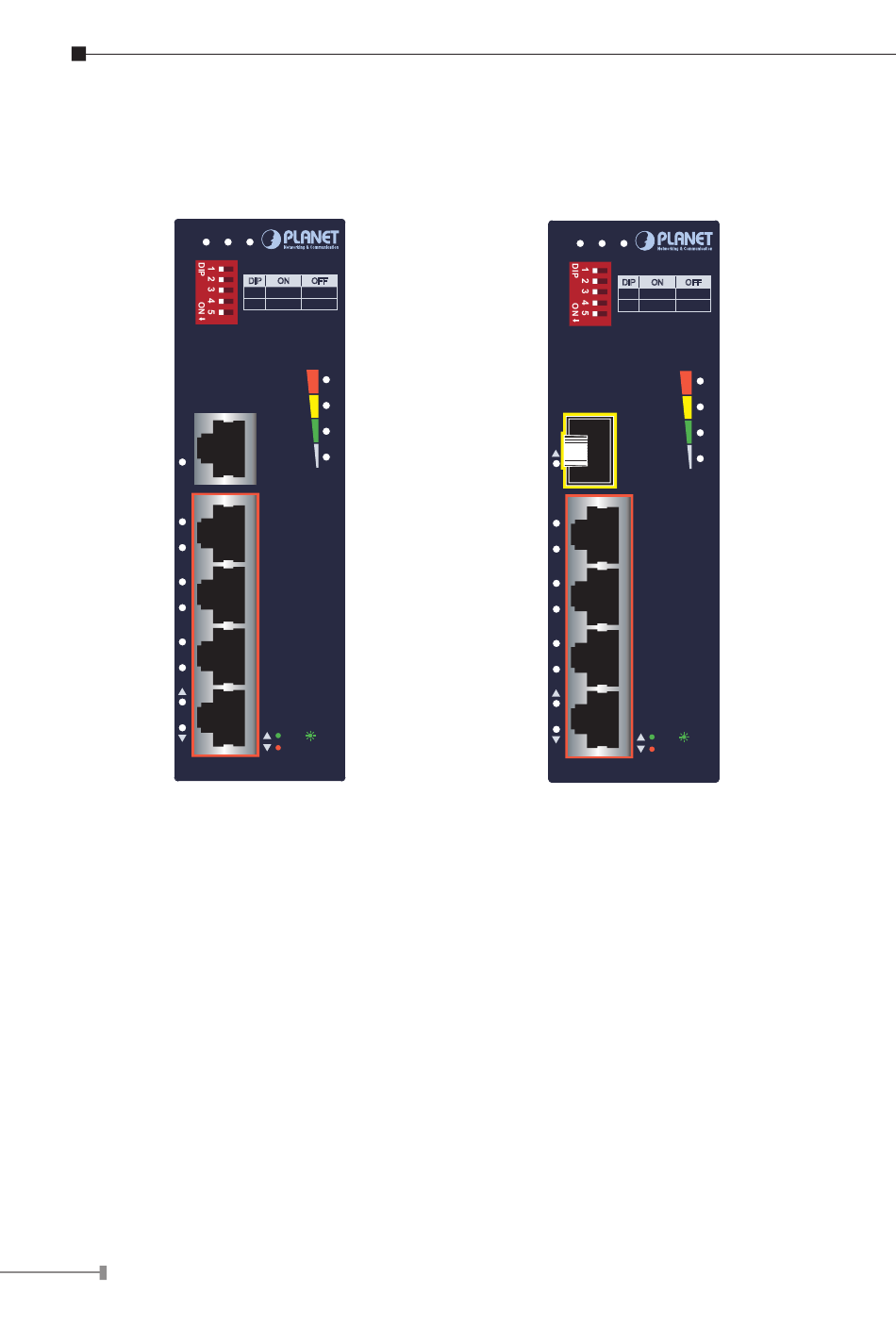

Figure 2-1: ISW-504PT front panel
1. Fast Ethernet TP Interfaces
10/100BASE-TX copper, RJ45 twisted-pair: Up to 100 meters.
2. 100BASE-FX SFP Slot (ISW-514PTF)
100BASE-FX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver
module: From 2 kilometers (multi-mode fiber) to 20/40/60/120 kilometers
(single-mode fiber).
4
DIP ON OFF
1~4 Extended Standard
5 VLAN Standard
120W
90W
60W
5
30W
PoE Usage
4
3
2
1
LNK ACT
PoE-in-Use
P1 P2 Alarm
DIP
1~4
5
100FX
5
ISW-514PTF
Figure 2-2: ISW-514PTF front panel
ON OFF
Extended Standard
VLAN Standard
120W
90W
60W
30W
PoE Usage
4
3
2
1
LNK ACT
PoE-in-Use
