Summary of Contents for Tempsens CALsys 37BB

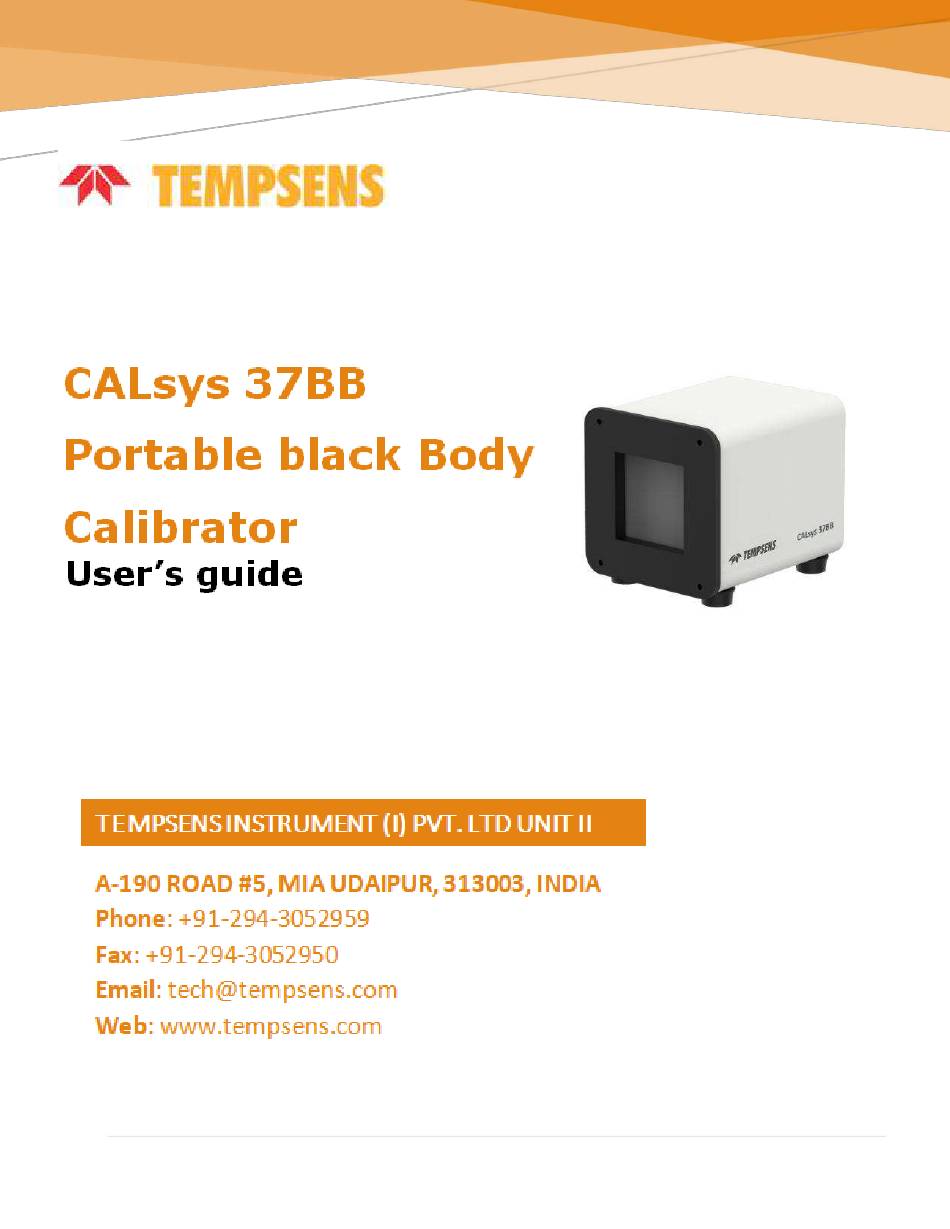

- Page 1 Calsys 37BB P a g e...
- Page 2 CALsys 37BB Legal Disclaimer The information contained in this document is the property of TEMPSENS. TEMSPENS reserves the right to make changes to this document and to the product described herein without notice. Before installing and using the product, review the latest version of the applicable documentation, which are available from the Tempsens website at: http://www.tempsens.com/...
-
Page 3: Table Of Contents
Cautions and Preventions ............................8 Document Conventions ............................8 Chapter 1 ..............................9 Introduction ............................10 About CALsys 37BB ..............................9 Basic Working Model of CALsys 37BB ........................10 Wiring Diagram ..............................11 Technical Specifications ............................12 Chapter 2 ..............................13 Setting Up CALsys 37BB ........................13 Installation ................................13... - Page 4 CALsys 37BB Chapter 4 ..............................21 Operating CALsys 37BB ........................21 Turning On the Unit ..............................21 Heating Up the Source ............................21 Operating Instructions ............................22 Cooling Down the Source ............................23 Chapter 5 ..............................24 Operating Unit Controller ........................24 Front Panel layout of controller ..........................
-
Page 5: Preface
Calsys 37BB Preface Welcome to the Calsys 37BB Portable Black Body Calibrator user guide. This guide provides detailed information about all the product options and features, and explains how to use the product and configure basic settings to suit your requirements. -
Page 6: Electrical Safety
CALsys 37BB Personnel with relevant qualifications: Personnel in charge of the device's installation, operation, and maintenance must have applicable qualifications. This can be based on applicable training or tuition. The workers must be aware of and have access to the operating handbook at all times. -
Page 7: Health And Safety Instructions
After use, do not return the apparatus to its carrying case until the unit has cooled down. There are no user serviceable parts inside. When required, contact Tempsens agent for repair. Ensure all materials, especially flammable materials are kept away from the hot parts of the apparatus, to prevent fire risk. -
Page 8: Cautions And Preventions
CALsys 37BB Cautions and Preventions To avoid possible damage to the instrument, follow these guidelines: Before working inside the equipment, turn the power off and disconnect the power cord. DO NOT turn the unit upside down with the inserts in place; the inserts will fall out of the unit. -
Page 9: Chapter 1
Chapter 1 Introduction About CALsys 37BB The ‘CALsys 37BB’ has been designed to provide stable and accurate temperature source for on-site and laboratory calibration of radiation thermometers by comparison method up to a temperature range 50°C. The ‘CALsys 37BB’ model has been designed in single part. This model provides an isothermal enclosure in which the non contact pyrometers can be checked against the temperature of the calibration black body. -
Page 10: Basic Working Model Of Calsys 37Bb
Basic Working Model of CALsys 37BB ‘CALsys 37BB is a transportable, self contained unit designed for use on any reasonable flat surface. The target is a ridged aluminum plate which is painted by a high emissive paint .The target is heated by Si Rubber heater which allows the source to heat up to 50°C in about 15 minutes and holds it... -
Page 11: Wiring Diagram
CALsys 37BB Wiring Diagram: 11 | P a g e... -
Page 12: Technical Specifications
CALsys 37BB Technical Specification ARAMETER PECIFICATION Voltage 230 V AC±10 Power 100 W Supply Frequency 50/60 Hz Temperature Range Ambient +5 C to 50 Resolution 0.01 °C Stability ±0.04 C at 37 Controlling sensor Time to reach max. temperature 10 to 15 min... -
Page 13: Chapter 2
CALsys 37BB Chapter 2 Setting up CALsys 37BB Installation Place the black body on a flat surface with at least 10 inches of free space around the instrument. Overhead clearance is required. DO NOT Place this unit under a cabinet or structure. Plug the power cord into a grounded mains outlet located on the controlling unit rear panel. -
Page 14: Unpacking And Initial Inspection
Unpack the Furnace carefully and inspect. If you find any damage or any item is missing notify us or our agent. After unpacking you will find the following accessories. CALsys 37BB…………………......1 No Power cord ……………………………………………1 No Manual... -
Page 15: Operating Instructions
2. Change the set-point to 37°C and observe that the block temperature rises and settles to this value. 3. If the unit performs as expected, the unit can now be used for calibration. If any problems or faults arise during the test, contact Tempsens immediately for help and advice. 15 | P a g e... - Page 16 CALsys 37BB This page is intentionally left blank. 16 | P a g e...
-
Page 17: Chapter 3
CALsys 37BB Chapter 3 Optics The pyrometer measures the temperature by receiving heat radiation from the object whose temperature has to be measured. This heat radiation is passed through the lens sensor and then converted to an electrical signal. The farther the measured object is from the pyrometer, the larger the area that will be measured by the pyrometer. - Page 18 CALsys 37BB Aperture(A) 11 (300 - 2500°C) 12(600 - 2500°C) 4 (350 - 3000°C) Manufactured working distance is mention on pyrometer. If the pyrometer is not installed at manufactured working distance (WD) then spot size at actual installed distance should be calculated. For example, if factory made working distance is 500 mm &...
-
Page 19: Distance Of Pyrometer From Object
CALsys 37BB Case-I: If installed working distance is greater than manufactured working distance Case-II: If installed working distance is smaller than manufactured working distance Where, S = manufactured spot size of pyrometer(mm), A = It shows the value of lens opening... -
Page 20: Viewing Angles
CALsys 37BB Viewing Angles The pyrometer can be placed at any angle from the target object up to 30°. Indicated in the below diagram. 20 | P a g e... -
Page 21: Chapter 4
CALsys 37BB Chapter 4 Operating CALsys 37BB Turning On the Unit 1. Before plugging the unit to main power outlet, ensure that the voltage, frequency and current from the main power outlet are within the recommended rages (typically: 230 VAC±10, 50/60 Hz). -
Page 22: Operating Instructions
CALsys 37BB Operating Instructions Connect the ‘CALsys 37BB’ to a suitable power supply. ON the Mains switch located at back Side with power entry. Set the desire temperature value in PID by using UP & Down key. Aim the reference (Master) standard infrared temperature sensor to the target area. -
Page 23: Cooling Down The Source
CALsys 37BB Cooling Down the Source Ensure that the temperature of Black Body has cooled sufficiently. If you require Black Body to cool quickly, set the temperature to the room temperature (ambient temperature). Always cool the heated instrument to ambient temperature before disconnecting it from the mains, switching it OFF, or removing the temperature sensor or test item. -
Page 24: Chapter 5
CALsys 37BB Chapter 5 Operating Unit Controller Front Panel Layout Operator Button The Temperature Controller: The upper display of the controller indicates the measured temperature, the middle display indicates the desired temperature or set point and lower display shows output power demand. -
Page 25: Monitoring The Controller Status
CALsys 37BB Monitoring the Controller Status: A row of beacons indicate the controllers status as follows: OP1 Heat Output OP2 Cool Output (only for models which operate below 0°C) REM This beacon indicates activity on the PC interface Temperature units: Momentary pressing of the Scroll key will show the controller units °C or °F. - Page 26 Calsys 37BB This page is intentionally left blank. 26 | P a g e...
-
Page 27: Chapter 6
Trouble shooting Unit fails to operate Check fuse if it is tripped switch is ON. If not power ON of CALsys 37BB bath consult us. Unit Unstable Controller parameter has been interfered, consult us. -
Page 28: If Temperature Not Rising
CALsys 37BB If the temperature of the calibrator is not rising a) The heating element may be open. b) The RTD may be open. c) The SSR may be damaged. d) The controller may not be giving output e) The ambient temperature inside the chamber is raised and safety controller switched OFF the... - Page 29 Calsys 37BB This page is intentionally left blank. 29 | P a g e...
-
Page 31: Appendix A: Calibration Services
Calsys 37BB Appendix A: Calibration Services Tempsens Calibration Center is an independent unit of Tempsens instruments (I) Pvt. Ltd, having laboratories at Udaipur, Vadodara & Bangalore. It is accredited for wide range of temperature calibration services. It is the only private sector Laboratory in the country with accredited Fixed Point Temperature Calibration Facilities. -
Page 32: On-Site Calibration Facility
CALsys 37BB On-site Calibration Facility & M UALITY EASURED NSTRUMENTS EMPERATURE ANGE ALIBRATION EASUREMENT APABILITY Contact Type RTD, Thermocouples -25°C to 0°C 0.07°C Thermometers >0°C to 140°C 0.04°C >140°C to 250°C 0.09°C >250°C to 650°C 0.12°C >650°C to 1200°C 1.30°C Non-Contact Type Pyrometer 0°C to 250°C... -
Page 33: Thermography Services
CALsys 37BB Thermography Services Tempsens provide thermography services for various industries. Thermography enables to monitor the thermal efficiency of critical process systems that rely on heat transfer of retention. This is one of the most powerful, fast and one of the most cost- effective condition monitoring... - Page 34 CALsys 37BB This page is intentionally left blank. 34 | P a g e...
-
Page 35: Appendix A: Warranty
INTERFERENCE WITH OR FAILURE TO PROPERLY MAINTAIN THIS INSTRUMENT MAY INVALIDATE THIS GUARANTEE Limit of Liability TEMPSENS is not liable for any damages that arise from the use of any examples or processes mentioned in these Specifications are subject to change without notice. Caution in Using the Product TEMPSENS PRODUCTS ARE INTENDED FOR USE BY TECHNICALLY TRAINED AND COMPETENT PERSONNEL FAMILIAR WITH GOOD MEASUREMENT PRACTICES. - Page 36 CALsys 37BB 36 | P a g e...
