CONTENTS
Usage Notice .....................................................................................2
Safety Instructions ................................................................................................................. 2
Introduction .......................................................................................5
Projector Features ................................................................................................................. 5
Package Contents ................................................................................................................. 6
Projector Overview ................................................................................................................ 7
Using the Product .............................................................................9
Control Panel ......................................................................................................................... 9
Connection Ports ................................................................................................................. 10
Remote Control ................................................................................................................... 11
Installing the Batteries ......................................................................................................... 13
Remote Control Operation ................................................................................................... 14
Connection ......................................................................................15
Connecting a computer or monitor ...................................................................................... 16
Connecting Video source devices ....................................................................................... 17
Operation .........................................................................................21
Powering On/Off the Projector ............................................................................................. 21
Adjusting the Projector Height ............................................................................................. 22
Adjusting the Projector Zoom and Focus ............................................................................ 22
Adjusting Projection Image Size .......................................................................................... 23
Menu Operation ................................................................................................................... 24
Appendix ..........................................................................................33
Replacing the Lamp ............................................................................................................. 33
Ceiling mount installation ..................................................................................................... 35
Compatibility Modes ............................................................................................................ 36
RS232 Commands and Protocol Function List .................................................................... 39
Troubleshooting ................................................................................................................... 43
Optoma Global Offices ........................................................................................................ 45
Regulation & Safety Notices ................................................................................................ 48
Remote Control ................................................................................................................... 50
EN-1
Advertisement
Table of Contents
Related Manuals for Optoma DS550
Summary of Contents for Optoma DS550
-
Page 1: Table Of Contents
Replacing the Lamp ... 33 Ceiling mount installation ... 35 Compatibility Modes ... 36 RS232 Commands and Protocol Function List ... 39 Troubleshooting ... 43 Optoma Global Offices ... 45 Regulation & Safety Notices ... 48 Remote Control ... 50 EN-1... -
Page 2: Usage Notice
Usage Notice Safety Instructions Read all of these instructions before you operate your projector and save for future reference. 1. Read instructions All the safety and operating instructions should be read before the appliance is operated. 2. Notes and warnings All notes and warnings in the operating instructions should be adhered 3. - Page 3 To prevent the unit from possible damage, do not use the projector for at least 2 hours when there is an extreme or sudden change in temperature.
- Page 4 Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug.
-
Page 5: Introduction
Introduction Projector Features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: Single chip 0.55" Texas Instruments DLP SVGA (800 x 600 pixels) -
Page 6: Package Contents
Package Contents When you unpack the projector, make sure you have all these components: Projector VGA Cable (D-SUB to D- SUB) Documentation: User's Manual Warranty Card Quick Start Card WEEE Card (for EMEA only) Note For European warrant information please visit www.optomaeurope.com Due to the difference in applications for each country, some regions may have different accessories. -

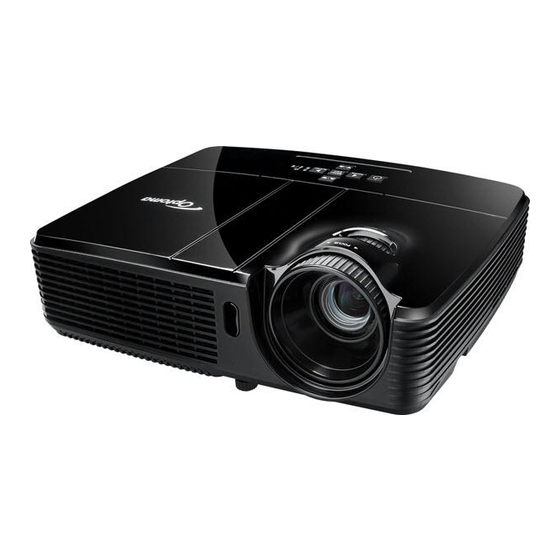

Page 7: Projector Overview
Projector Overview Front View Front IR remote control sensor Elevator foot Projection lens Speaker Ventilation holes Control panel Zoom ring Focus ring Lamp cover EN-7... -
Page 8: Rear View
Security bar Ceiling mount holes Ventilation holes Note This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package. Contact your dealer for information to mount the projector on a ceiling. EN-8... -
Page 9: Using The Product
Four directional buttons Use four directional buttons to select items or make adjustments to your selection. Re-SYNC Automatically synchronize the projector to the input source. POWER (Power LED indicator) Refer to “LED Indicator Messages”. TEMP/LAMP (Temp/Lamp LED indicator) Refer to “LED Indicator Messages”. -
Page 10: Connection Ports
Connect S-Video output from video equipment to this jack. VGA1-IN/YPbPr Connect image input signal (analog RGB or component) to this jack. RS-232 When operating the projector via a computer, connect this to the controlling computer's RS-232C port. Service/Mouse This connector is for firmware update and mouse function support. -
Page 11: Remote Control
HDMI) S-Video Display S-Video signal. Page+ Perform page up function when mouse mode is activated. Turn on or off 3D function. Power Turn the projector on or off. Re-SYNC Automatically synchronize the projector to the input source. EN-11... - Page 12 The capability of operating your computer with the remote control gives you more flexibility when delivering presentations. 1. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer’s mouse. See “Connecting a computer”...
-
Page 13: Installing The Batteries
Installing the Batteries 1. Open the battery cover in the direction shown. 2. Install batteries as indicated by diagram inside the compartment. 3. Close the battery cover into position. Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. -
Page 14: Remote Control Operation
Remote Control Operation Point the remote control at the infrared remote sensor and press a button. Operating the projector from the front Note The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. -
Page 15: Connection
Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted..*Audio cable ... -
Page 16: Connecting A Computer Or Monitor
Important Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/ LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. -
Page 17: Connecting Video Source Devices
S-Video Video (composite) You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the... -
Page 18: Connecting An Hdmi Source Device
VGA1-IN/YPbPr or VGA2-IN/YPbPr socket on the projector. Important If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. -
Page 19: Connecting An S-Video Source Device
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector. Important If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. -
Page 20: Connecting A Composite Video Source Device
2. Connect the other end of the Video cable to the VIDEO socket on the projector. Important If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. -
Page 21: Operation
When the Power LED becomes steady blue, the projector has entered stand-by mode. If you want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand-by mode, simply press projector. -
Page 22: Adjusting The Projector Height
Note To avoid damaging the projector, make sure that the elevator foot is fully retracted before placing the projector in its carrying case. Adjusting the Projector Zoom and Focus 1. -
Page 23: Adjusting Projection Image Size
Keep a space of 30 cm or more between the sides of the projector. Do not use the projector in a smoky environment. Smoke residue may build-up on critical parts and damage the projector or its performance Consult with your dealer for special installation such as suspending from a ceiling. -
Page 24: Menu Operation
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. How to operate 1. Press MENU on the projector or Menu on the remote control to open the OSD menu. 2. When OSD is displayed, use menu. - Page 25 Presentation, Bright, Movie, sRGB, User, Classroom, Black Board, 3D EN-25...
- Page 26 Image Brightness Brighten or darken the image. Contrast Set the difference between light and dark areas. Color Settings Adjust the color temperature. At higher temperature the screen looks colder; at lower temperature, the screen looks warmer. If you select “User”, then you can change the intensity of each of 3 color (Red, Green, Blue) to customize user color temperature.
-
Page 27: Brilliant Color
There are many factory presets optimized for various types of images. Presentation: For computer or notebook. Bright: For bright environment. Movie: For home theater. sRGB: For PC standard color. User: Memorize user’s settings. Classroom: For projection in the classroom. Black Board: For black projection screen type. 3D: For viewing 3D videos. - Page 28 Signal Frequency Adjust the timing of the projector relative to the computer. Tracking Adjust the phase of the projector relative to the computer. H Position (Horizontal Position) Adjust the image left or right within the projection area. V Position (Vertical Position) Adjust the image up or down within the projection area.
-
Page 29: Video Image
Video Image Color Adjust a video image from black and white to fully saturated color. Sharpness Sharpen or soften the image. Tint Shift colors toward red or green. Sound Volume Adjust the volume level. Mute Cut off the sound temporarily. EN-29... - Page 30 Menu Position Choose the menu location on the display screen. Projection Adjust the picture to match the orientation of the projector: upright or upside- down, in front of or behind the screen. Invert or reverse the image accordingly. Color Space Select an appropriate color matrix type from RGB,YCbCr/YPbPr.
- Page 31 Source Lock On: The projector will search specified connection port. Off: The projector will search for other signals if the current input signal is lost. Bright Mode ECO: Choose “ECO” to dim the projector lamp which will lower power consumption and extend the lamp life by up to 120%.
-
Page 32: Factory Default
Language Select the language used by the on-screen menu. Factory Default Restore settings to factory default . EN-32... -
Page 33: Appendix
Note The lamp is extremely hot right after turning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down. - Page 34 Do not reuse the old lamp. This could cause the lamp to explode. Be sure to turn off the projector and unplug the AC power cord before replacing the lamp. Do not use the projector with the lamp cover removed.
-
Page 35: Ceiling Mount Installation
Ceiling mount installation 1. To prevent damage to your projector, please use the Optoma ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:... -
Page 36: Compatibility Modes
Compatibility Modes Computer: Mode SVGA HD720 HD720 HD720 HD720 WXGA EN-36 Resolution H-Sync [KHz] 640 x 350 640 x 350 720 x 350 640 x 400 640 x 400 720 x 400 720 x 400 720 x 576 720 x 576 640 x 480 800 x 600 832 x 624... - Page 37 WXGA-800 SXGA SXGA+ UXGA HDTV SDTV Macbook/Macbook Pro (Intel) Macbook Pro (Intel) Power Mac G4/G5 Power Mac G4 Power Mac G4 Power Mac G5 1280 x 800 1280 x 1024 1366 x 768 1440 x 900 1400 x 1050 1600 x 1200 1920 x 1080 1920 x 1080 1920 x 1080i...
- Page 38 Video: NTSC NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4.43MHz SECAM SECAM B/D/G/K/K1/L, 4.25/4.4 MHz SDTV 480i/p, 576i/p HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz) EN-38...
-
Page 39: Rs232 Commands And Protocol Function List
RS232 Commands and Protocol Function List RS232 Pin Assignments D-Sub 9 pin 1 CD Wire List COLOR Black Brown Orange Yellow Green Blue Purple White SHELL SHELL EN-39... -
Page 40: Rs232 Protocol Function List
Data Bits: 8 Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F Note There is a <CR> after all ASCII commands. 0D is the HEX code for <CR> in ASCII code. - Page 41 ~XX45 n 7E 30 30 34 34 20 a 0D ~XX44 n 7E 30 30 34 35 20 a 0D ~XX60 1 7E 30 30 36 30 20 31 0D ~XX60 2 7E 30 30 36 30 20 32 0D ~XX60 3 7E 30 30 36 30 20 33 0D ~XX62 n...
- Page 42 ~XX140 26 7E 30 30 31 34 30 20 32 36 0D ~XX140 27 7E 30 30 31 34 30 20 32 37 0D SEND from projector automatically 232 ASCII Code HEX Code when Standby/Warming/Cooling/Out of Range/Lamp fail/ Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open...
-
Page 43: Troubleshooting
Use the remote control within the effective range. Aim the remote control at the screen or at the front of the projector. Move the remote control so it is more directly in front of the projector and not as far to the side. -
Page 44: Led Indicator Messages
LED Indicator Messages Projector Status Standby mode Normal running mode Normal cooling Lamp ignition failed Lamp life end Temp error Fan error Color wheel or DMD error EN-44 POWER Blue solid Flashing 30 seconds after powering on and then become solid... -
Page 45: Optoma Global Offices
Optoma Global Offices For service or support please contact your local office. 3178 Laurelview Ct. Fremont, CA 94538, USA www.optomausa.com Canada 5630 Kennedy Road, Mississauga, ON, L4Z 2A9, Canada www.optoma.ca Europe 42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK www.optoma.eu... - Page 46 Lerpeveien 25 3040 Drammen Norway PO.BOX 9515 3038 Drammen Norway Latin America 3178 Laurelview Ct. Fremont, CA 94538, USA www.optoma.com.br Korea WOOMI TECH.CO.,LTD. 4F,Minu Bldg.33-14, Kangnam-Ku, seoul,135-815, KOREA Japan 東京都足立区綾瀬 3-25-18 株式会社オーエスエム サポートセンター :0120-46-5040 Taiwan 5F., No. 108, Minchiuan Rd.
- Page 47 Changning District +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn EN-47...
-
Page 48: Regulation & Safety Notices
Regulation & Safety Notices This appendix lists the general notices of your projector. FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. -
Page 49: Operation Conditions
Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003. -
Page 50: Remote Control
Remote Control Power Turn the projector on or off. L Button Perform the left button of the mouse. R Button Perform the right button of the mouse. Page + Perform page up function. Page - Perform page down function. Enter/ /Help? Confirm your item selection. - Page 51 Freeze Freeze the projected image. AV mute Cut off the AV Mute temporarily. Only pressing AV Mute again can output sound and image. If any other buttons are pressed, the projection image will become abnormal and no sound will be output.
