The F280025 controlCARD (TMDSCNCD280025C) from Texas Instruments (TI) provides a great way to
learn and experiment with the F28002x devices. The F28002x device is a member of TI'sC2000™ family
of microcontrollers (MCUs). This 120-pin controlCARD is intended to provide a well-filtered robust design
that is capable of working in most environments. This document provides the hardware details of the
F280025 controlCARD and explains the functions, locations of jumpers, and connectors present on the
board.
1
2
.........................................................................................................................
3
4
5
6
1
2
3
4
1
2
3
Trademarks
C2000, Code Composer Studio are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
SPRUIR3A - September 2019 - Revised March 2020
Submit Documentation Feedback
F280025 controlCARD Information Guide
..................................................................................................................
.............................................................................................
..................................................................................
................................................................................................................
......................................................................................................
.....................................................................................................
....................................................................................................
................................................................................................
.....................................................................................................
............................................................................................
Copyright © 2019-2020, Texas Instruments Incorporated
SPRUIR3A - September 2019 - Revised March 2020
Contents
List of Figures
..........................................................................
...........................................................................
List of Tables
F280025 controlCARD Information Guide
User's Guide
2
2
3
3
5
6
2
6
6
7
4
7
9
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments F280025
Summary of Contents for Texas Instruments F280025
-
Page 1: Table Of Contents
(MCUs). This 120-pin controlCARD is intended to provide a well-filtered robust design that is capable of working in most environments. This document provides the hardware details of the F280025 controlCARD and explains the functions, locations of jumpers, and connectors present on the board. -
Page 2: Introduction
Flip S1 to the "USB-ON" position. D3 of the controlCARD should illuminate. 3. For a detailed explanation of the hardware configuration, see Section 4.3. F280025 controlCARD Information Guide SPRUIR3A – September 2019 – Revised March 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 3: Errata
Warnings, Notes, and Errata • The F280025 Experimenter’s Kit ships with a USB cable and is designed to be powered via USB. However, in extreme cases the board/controlCARD may require more power than the 5 V @ 500 mA (USB 3.0 - 900 mA) that a computer’s USB port can provide. This is especially true when additional circuitry has been added to the docking station. -
Page 4: Emulator Switch Selections
Support files for both register-level and driver-level programming are included with C2000Ware: • Register header files are located at: \ti\c2000\C2000Ware_XXXX\device_support\F28002x\examples • Driverlib programming examples are located at: \ti\c2000\C2000Ware_XXXX\driverlib\F28002x\examples F280025 controlCARD Information Guide SPRUIR3A – September 2019 – Revised March 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 5: Special Notes
ADC, like the one on the F280025. This does also not take into account that many times the supply in question is providing the main voltage to power the MCU itself;... -
Page 6: Hardware References

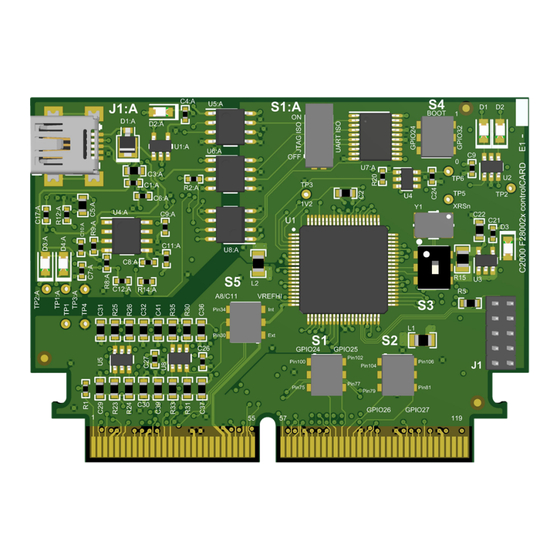

Figure 2. Female SMA Connector Hardware References Figure 3. Key Components on the controlCARD - Front F280025 controlCARD Information Guide SPRUIR3A – September 2019 – Revised March 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... -
Page 7: Key Components On The Controlcard - Back
C29-C44 ADC RC input filter capacitors : Optional capacitors, not populated by default, for the ADC input's RC filters. SPRUIR3A – September 2019 – Revised March 2020 F280025 controlCARD Information Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 8 NOTE: On the front of the controlCARD test points are indicated by their TPx number. On the back of the controlCARD test points are indicated by their signal. F280025 controlCARD Information Guide SPRUIR3A – September 2019 – Revised March 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
-
Page 9: S4, Bootmode Selection Table
Boot From GPIO-24) GPIO-32) 0 (down) 0 (down) Parallel I/O 1 (up) 0(down) SCI/Wait Boot 0(down) 1(up) 1(up) 1(up) Flash/USB SPRUIR3A – September 2019 – Revised March 2020 F280025 controlCARD Information Guide Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated... - Page 10 Changes from Original (September 2019) to A Revision ....................Page ........................• Added new Section ....................... • Updates were made in Section Revision History SPRUIR3A – September 2019 – Revised March 2020 Submit Documentation Feedback Copyright © 2019–2020, Texas Instruments Incorporated...
