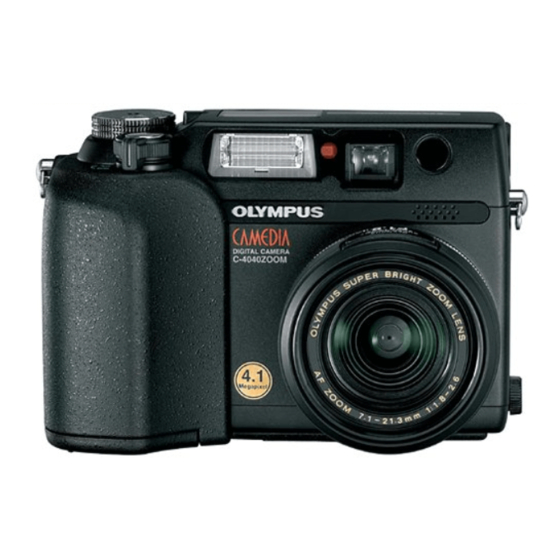

Olympus CAMEDIA C-4040 Zoom Pocket Manual

Shutter button
Focuses (half press) or shoots (full press).
How to use the buttons and dial
UTTON
B
Flash mode button
Shooting: Selects flash modes (Working range
[Wide: 0.8-5.6 m (2.6-18.4 ft)/
Tele: 0.2-3.8 m (8"-12.5 ft)
Playback:Each press erases one frame.
Viewfinder
Monitor
Displays images for
shooting or playback.
M ENU
How to use the Shooting Menu
Moving around the Menu screen
1
Note:The Top menu and avail-
able menu functions vary
depending on the mode
dial setting. (See the
Reference Manual for
more details.)
4
Brings up CAMERA menu
CAM
Brings up PICTURE menu
PIC
Brings up CARD menu
CARD
Brings up SETUP menu
SET
C A M E R A
DRIVE
(for movies)
ISO
A/S/M
FLASH
SLOW
NOISE
REDUCTION
MULTI
METERING
DIGITAL
ZOOM
FULLTIME
AF
AF MODE
(for still
pictures)
(for movies)
PANORAMA
FUNCTION
P I C T U R E
WB
SHARPNESS
CONTRAST
C A R D
CARD SETUP
S E T U P
ALL RESET
REC VIEW
FILE NAME
PIXEL MAPPING
m/ft
SHORT CUT
CUSTOM
BUTTON
M
How to use the Playback menu

(still pictures)

Runs through all saved pictures one after another (slide-show).
MOVIE PLAY (movies)
MOVIE
PLAYBACK
INDEX
EDIT
INFO
Changes the amount of information (ISO, WHITE BALANCE, etc.)
displayed on the Monitor.
PLAY (still pictures)
CARD
CARD SETUP
SETUP
ALL RESET
Arrow pad
Shooting :Sets aperture/shut-
Playback :Selects pictures to
be displayed.
Menu screen:Selects menu items.
The top menu functions can be changed to
your liking in the "P" and "A/S/M" modes
(SHORT CUT setting).
3
Selects the drive mode from sequential shooting, auto
bracketting, or remote/self timer shooting (only for still
pictures).
Sets remote/self timer shooting.
Adjusts the ISO sensitivity. (AUTO/100/200/400)
Selects the exposure mode from A(Aperture priority auto),
S (Shutter priority auto) or M (Manual mode), when the
Mode dial is set to "A/S/M".
Adjusts the flash intensity.
Selects whether to use both the external and built-in
flashes, or the external flash only.
Adjusts the flash for slow shutter speeds. (
SLOW/
Reduces the noise on images during long exposures.
Decides the best exposure by metering up to 8 different
spots in the picture.
Zooming can be set up to 7.5x (equivalent to 35mm-
260mm on a 35mm camera).
Keeps the image in focus at all times without having to
press the shutter button halfway.
Selects the auto focus mode (iESP, SPOT).
Allows approx. 4 seconds of sound recording to be
attached to a picture.
Allows sound to be recorded while shooting movies.
Allows panorama pictures to be taken (CAMEDIA
Master is required).
Changes the picture color to BLACK&WHITE, SEPIA or
WHITE/BLACK BOARD.
Sets the record mode. (TIFF/SHQ,/HQ/SQ1/SQ2)
Adjusts the white balance according to the light source.
(AUTO/PRESET/
Allows you to make fine changes to the white balance.
Adjusts the sharpness of images.
Adjusts the contrast of images.
Formats cards (all images on the card are deleted).
Selects whether to keep the current camera settings when
you turn off the power. (ON/OFF/CUSTOM)
Sets the beep sound to OFF/LOW/HIGH.
Selects whether to display images on the monitor while
saving them to a card.
Creates file/folder names for images to be saved.
(RESET/ AUTO)
Checks the CCD and image processing circuit for errors.
Adjusts the brightness of the monitor.
Sets the date/time.
Sets the measurement units (m/ft) during manual focus.
Selects items for the shortcut menu on the top menu screen.
Lets you assign a function to the custom button on the
camera (factory default setting: AE lock).
ENU
Plays back movies.
Shows 9-frame indexes of still-shots from movies in
order to easily check the movies' contents.
Edits recorded movies.
Adds sound to recorded still pictures.
Formats cards (FORMAT), or erases all images on
them (ALL ERASE).
Selects whether to keep the current camera settings
when you turn off the power. (ON/OFF/CUSTOM)
Sets the beep sound to OFF/LOW/HIGH.
Adjusts the brightness of the monitor.
Sets the date/time.
Selects the number of frames in the index display.
(4/9/16-frame)
Zoom lever
Shooting : Zooms in/out.
Playback : Displays multiple pictures at the same
Print reserve: Sets trimming size.
Mode dial
A/S/M :Sets controls for Aperture-priority
P
S
OFF :Turns off the power.
D
&
Macro/Spot button
Macro : Takes close-up pictures
(Working range: 0.2-0.8 m (8"-2.6 ft)).
Spot : Selects area for metering.
Playback : Selects pictures for printing (Print reserve).
ter speed/exposure
compensation/man-
ual focusing values.
AE lock/Custom button
Shooting:AE lock (factory default setting)
—Locks exposure.
Custom button
— Performs whichever function you have set for it.
Playback:Protects pictures from being accidentally erased.
Rotates pictures during TV playback.
Top menu (Mode dial: "P")
DRIVE
MODE MENU
WB
If you select MODE MENU in step 2
FLASH
SLOW2)
)
time (Index-display), or enlarges
pictures (close-up playback).
:Records movies.
auto exposure/Shutter-priority auto
exposure/Manual exposure.
:Full automatic exposure with one
press of the shutter button.
:Displays pictures.
ial
OK/Menu button
●Displays menu screen.
●Sets selected items on the
menu screen.
●Hold down for one second
or more to put the camera
into manual focus mode.
Monitor button
●Turns the monitor on/off.
●Press quickly two times to
play back the last record-
ed image.
DRIVE
ISO
AUTO
A/S/M
IN+
2
SLOW1/
