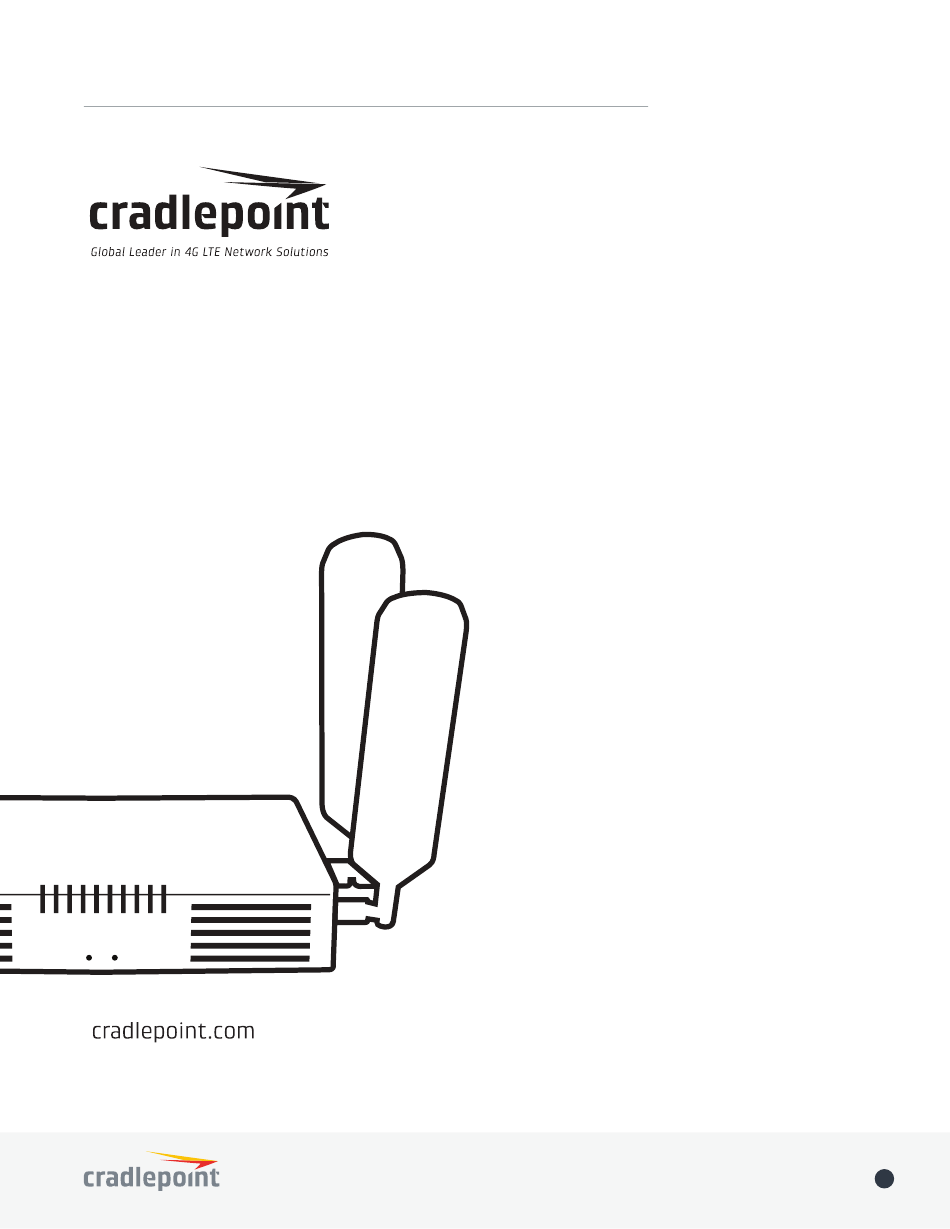

- Page 1 User Manual AER1600/AER1650 4/19/16 AER Series Router AER1600 / AER1650 User Manual ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
-
Page 2: Table Of Contents
BASIC SETUP ACCESSING THE ADMINISTRATION PAGES FIRST TIME SETUP WIZARD USING ENTERPRISE CLOUD MANAGER ADMINISTRATION PAGES QUICK LINKS DASHBOARD CONNECTION MANAGER WAN INTERFACE PROFILES & PRIORITY STATUS INTERNET CLIENT LIST TUNNELS FIREWALL ROUTING ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com... - Page 3 ZONE FIREWALL CONTENT FILTERING THREAT MANAGEMENT CERTIFICATE MANAGEMENT SYSTEM ADMINISTRATION ENTERPRISE CLOUD MANAGER DEVICE ALERTS SERIAL REDIRECTOR SNMP CONFIGURATION SYSTEM CONTROL DIAGNOSTICS SETUP WIZARDS APPENDIX SAFETY, REGULATORY, AND WARRANTY GUIDE ROUTER COMMUNICATION/DATA USAGE ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
-
Page 4: Introduction
User Manual AER1600/AER1650 4/19/16 WHAT’S IN THE BOX The Cradlepoint AER1600/AER1650 is available with different modem options: • LPE models include an embedded modem and a slot to add an MC400 modem • LP6 and LP3 models include a bundled MC400 modem and do not include an embedded modem •... -
Page 5: Wifi (Only On Aer1600)
• Hotspot/Captive Portal • SSID-based Priority MANAGEMENT • OOBM (Out-of-Band Management) via USB to Serial • Cradlepoint Enterprise Cloud Manager (ECM) • Web UI, API, CLI • GPS Location • Data Usage Alerts (router and per client) • Advanced Troubleshooting (support) •... -
Page 6: Cloud Optimized Ip Communications
WiFi* (as WAN; Metro WiFi) 2x2 MIMO 2.4 GHz or 5 GHz (802.11 a/b/g/n/ac; internal antennas) LAN: • Dual-band dual-concurrent WiFi* (802.11 a/b/g/n/ac) • 5 10/100/1000 Ethernet ports (WAN/LAN switchable) TEMPERATURE: • 0°C to 50°C (32°F to 122°F) operating ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com... -
Page 7: Accessories
SIM-Based Auto-Carrier selection so there is only one model for all of North America or EU. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385... - Page 8 Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted) • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf-cm) • GPS: active GPS support ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
- Page 9 Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted) • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf-cm) ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
- Page 10 Power: LTE Band 1/3/8/20 – 23 dBm +/− 1; LTE Band 7 – 22 dBm +/− 1, HSPA+ 23 dBm +/− 1 (typical conducted) • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only • GPS: active GPS support • Industry Standards & Certs: CE, GCF-CC ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
- Page 11 Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf-cm) • GPS: active GPS support • Industry Standards & Certs: PTCRB, FCC, IC ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
-
Page 12: Hardware
Default: LAN LAN or WAN Default: WAN) Removable MC400 Modem 3G/4G Antenna Connectors GPS Connector (SMA) (SMA) Embedded LTE Modem 3G/4G Antenna Connectors GPS Connector (SMA) (SMA) Specifications subject to change without notice. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com... -
Page 13: Quick Start
1. Insert an activated SIM The Cradlepoint AER1600/AER1650 requires a SIM with an activated wireless broadband data plan. Contact your carrier for details about selecting a data plan and about the process for provisioning your SIM. Once you have an activated SIM: •... -
Page 14: First Time Setup Wizard
When you log in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD, which will walk you through the steps to customize your Cradlepoint AER1600. You have the ability to configure any of the following: •... -
Page 15: Administration Pages
( ) in the top-right of the desired dialog box. You may return to the Dashboard at any time by clicking on DASHBOARD from the left menu or by clicking on the Cradlepoint logo at the top-left of the screen. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385... -
Page 16: Wan Interface Profiles & Priority
WAN Affinity. If WAN Affinity is enabled for a particular profile or interface, do not enable Standby for that profile or interface as the failover results may vary and be unexpected. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385... - Page 17 Idle Check Interval: The amount of time between each check. (Default: 30 seconds. Range: 10-3600 seconds.) Monitor while connected: (Default: Off) Select from the following dropdown options: • Passive DNS (modem only): The router will take no action until data is detected that is destined for the WAN. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
- Page 18 This ensures that the higher priority interface has remained online for a set period of time before it becomes active (in case the connection is dropping in and out, for example). Disabled: Deactivate failback mode. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
- Page 19 Custom Alert Percentages: Example: “50,80,90,110” (values can exceed 100%) (Triggers alerts when 50, 80, 90, 110% of usage cap is used) NOTE: To enable data usage, check Data Usage Enabled from WAN Management. ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
-
Page 20: Status
Ethernet LLDP System Logs INTERNET CONNECTIONS Select your device to reveal detailed information about the following device properties: • Summary • Modem • Cellular Network • General Information • IPv4 Information • Statistics ©2016 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
