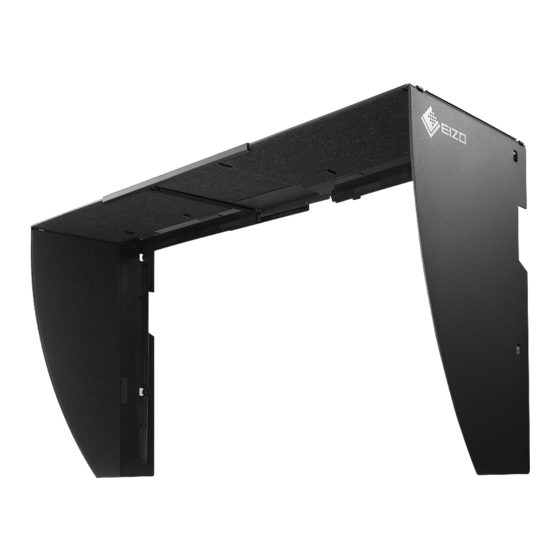

Thank you very much for choosing an EIZO product.
Please read this User's Manual carefully to familiarize you with safe and effective usage procedures.
Please retain this manual for future reference.
PRECAUTIONS
To ensure personal safety and proper maintenance, please read this section.
CAUTION
Do not carry the monitor with the hood attached.
While carrying the monitor, the hood may fall or slip off, which may result in injury or
equipment damage.
Do not place any objects on the hood.
If the hood falls or slips off or the monitor falls over, it may result in injury or equipment
damage.
Attach only to specified EIZO LCD monitors.
Attach only to specified EIZO LCD monitors. Attaching to other monitors may cause the
hood to drop, which may result in injury or equipment damage. For the specified monitors,
please visit our website at http://www.eizo.com.
The monitor hood assembling procedure is available from our video site.
[ Video site's URL ]
http://www.eizo.com/i/hood/
<Landscape>
[ QR code ]
<Portrait>
1
Advertisement
Related Manuals for Eizo CH5
Summary of Contents for Eizo CH5
- Page 1 Attach only to specified EIZO LCD monitors. Attach only to specified EIZO LCD monitors. Attaching to other monitors may cause the hood to drop, which may result in injury or equipment damage. For the specified monitors, please visit our website at http://www.eizo.com.
-
Page 2: Package Contents
Package Contents Please contact your local EIZO representative for assistance if any of the listed items are missing or damaged. Hood components (8 pcs.) Cover (8) Metal fitting (7) Plate (6) Plate (3) Plate (2) Plate (5) Plate (1) Plate (4) * Plate (3) and plate (6) are not used in the landscape position. - Page 3 Installation (Landscape) To use the monitor in the portrait position, go to page 6. Assemble the left and right hoods. 1. Place plate (2) on a flat surface such as a desk. Set up plate (1) at a right angle, and snap the tab until it clicks (2 positions).
- Page 4 Attach the left and right hoods to the monitor. 1. Face the back side of the monitor toward the front. Monitor hole 2. Align the hooks on the hood with the corresponding holes in the monitor, and then insert the hooks. Hole Hook 3.
- Page 5 Attach metal fitting (7). Holes on top (monitor top view) Insert the front hook of metal While pulling metal fitting (7) fitting (7) into the hole on top. forward, insert the back hook of metal fitting (7) into the hole on top.
- Page 6 Installation (Portrait) Assemble the left and right hoods. 1. Place plate (2) on a flat surface such as a desk. Set up plate (1) at a right angle, and snap the tab until it clicks (2 positions). * It is recommended that the tabs are snapped separately. Plate (1) Before attachment Snap the tab so that...
- Page 7 Detachment Fold the hood at the connecting part. Attach the left and right hoods to the monitor. 1. Face the back side of the monitor toward the front. Monitor hole 2. Align the hooks on the hood with the corresponding holes in the monitor, and then insert the hooks. Hook Hole...
-
Page 8: Attach Cover
3. While holding the monitor from the bottom, press down the hood to fix it firmly. 4. Attach the hood on the other side in the same way. Attach metal fitting (7). Use the procedure on page 5 for reference. Attach cover (8). - Page 9 Specifications / 仕様 ● CH5 Dimensions Landscape 653mm (25.7) × 373 mm (14.7) x 225.5 mm (8.9) Portrait 410.5mm (16.2) × 635.5mm (25.0) x 225.5mm (8.9) (W) x (H) x (D) Weight Landscape Approx. 940g (2.07 lbs) Portrait Approx. 1180g (2.6 lbs) 寸法...
- Page 10 ● CH6 Dimensions Landscape 552mm (21.7) × 373 mm (14.7) x 225.5 mm (8.9) (W) x (H) x (D) Portrait 361 mm (14.2) × 555 mm (21.9) x 225.5 mm (8.9) Weight Landscape Approx. 840g (1.85 lbs) Portrait Approx. 960g (2.12 lbs) 寸法...
- Page 11 ● CH7 Dimensions Landscape 582.5mm (22.9) × 373 mm (14.7) x 225.5 mm (8.9) (W) x (H) x (D) Portrait 406 mm (16.0) × 555 mm (21.9) x 225.5 mm (8.9) Weight Landscape Approx. 840g (1.85 lbs) Portrait Approx. 960g (2.12 lbs) 寸法...
- Page 12 Phone: +81 76 277 6792 Fax: +81 76 277 6793 Helmut-Grashoff-Strasse 18, 41179 Mönchengladbach, Germany Phone: +49 2161 8210210 Fax: +49 2161 8210150 〒924-8566 石川県白山市下柏野町 153 番地 http://www.eizo.com http://www.eizo.co.jp 4th Edition-June, 2013 Printed in Japan. 03V24051D1 Copyright © 2012-2013 EIZO Corporation All rights reserved. (U.M-CH6)
