JVC RV-DP200BK Service Manual

Powered woofer cd system
Hide thumbs Also See for RV-DP200BK:
Table of Contents

Advertisement

Quick Links

Download this manual

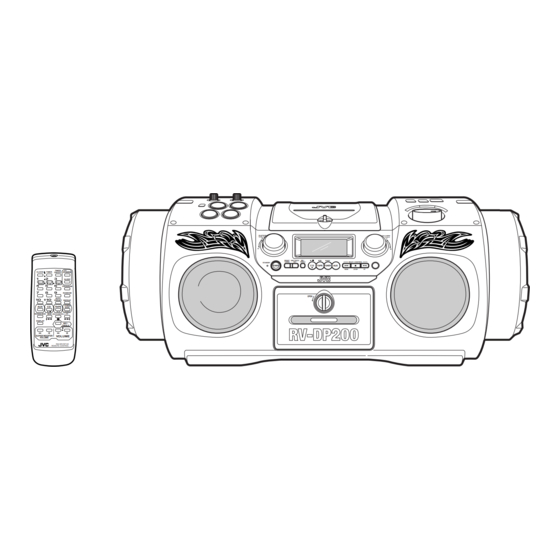

SERVICE MANUAL
POWERED WOOFER CD SYSTEM
TIMER
CLOCK
TIMER
ON/OFF
SLEEP
DOWN
UP
SET
PROGRAM
RANDOM
AUTO
PRESET
REPEAT
AUX
CD
TAPE
TUNER
BAND
FM MODE
REVERSE MODE REW
MULTI CONTROL
FF
DISPLAY
MID /
TREBLE
SUPER WOOFER
VOLUME
VOLUME
RM-SRVDP100E
REMOTE CONTROL
Contents
Safety Precautions
the CD mechanism assembly
RV-DP200BK
SUPER WOOFER
VOLUME
PRESET
ONE TOUCH
MID /
BAND
TUNING
REC
TREBLE
STANDBY
C D
TAPE
TUNER
OPEN
1-2
1-4
1-5
1-6
1-7
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
VOLUME
MID
/
TREBLE
MULTI CONTROL
AUX
REW
STOP
FF
until TOC read
RV-DP200BK
Area Suffix
B
U.K.
E
Continental Europe
EN
Northern Europe
1-21
1-25
1-26
1-26
1-27 38
No.20937
Apr. 2001
