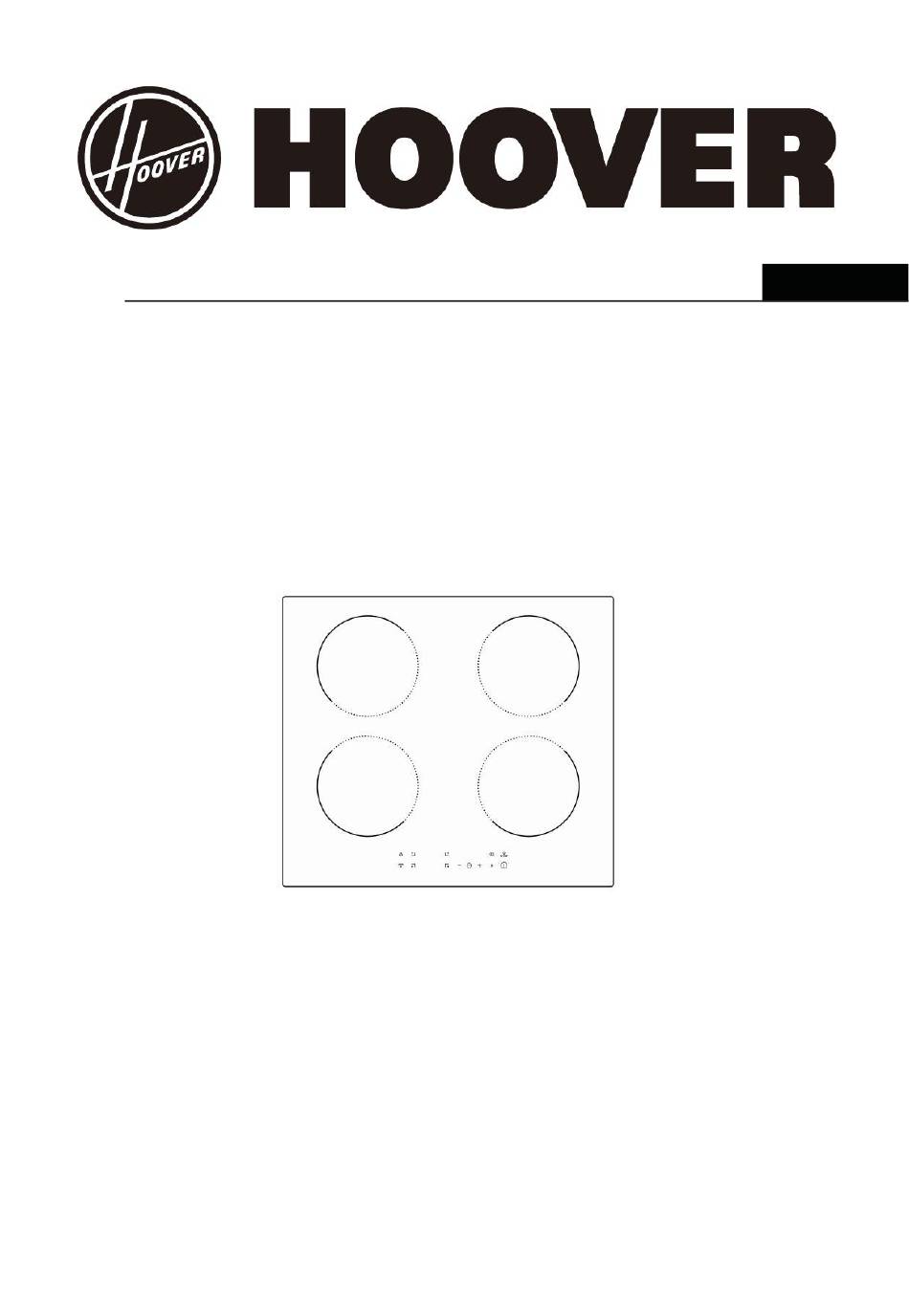

- Page 1 ENGLISH Instruction Manual For Induction Hob HI642CWIFITT Thank you for purchasing the HOOVER induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference...
-
Page 2: Safety Warnings
Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market). The full text of the declaration of conformity is available at the following internet address: www.candy-group.com Safety Warnings Your safety is important to us. - Page 3 installing or using this appliance. • No combustible material or products should be placed on this appliance at any time. • Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs. •...
-
Page 4: Health Hazard
Health Hazard • This appliance complies with electromagnetic safety standards. • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. - Page 5 • Failure to use caution could result in injury or cuts. Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface.
- Page 6 • Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
- Page 7 WARNING: The appliance and its accessible • parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged •...
- Page 8 means of an external timer or separate remote-control system. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed.
-
Page 9: Product Overview
Product Overview Top View 1.2000 W zone, boost to 2600W 2.1500 W zone, boost to 2000W 3.2000 W zone, boost to 2600W 4.1500 W zone, boost to 2000W 5. Glass plate 6. Control panel Control Panel 1. Heating zone selection controls 2. -
Page 10: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 11: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 12: Using Your Induction Hob
please place the pan in the centre of the cooking zone. The base diameter of induction cookware Cooking zone Minimum (mm) 1, 2 , 3, 4（180mm） The above may vary according to the quality of the pan used. Using your Induction Hob To start cooking 1. -
Page 13: When You Have Finished Cooking
setting This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. - Page 14 Using the Power Management Using power management you can set the total power to 2.5kW/ 3.0kW/ 4.5kW/ 6.5kW and 7.4kW. The default total power setting is the maximum power level. Setting the total power level to fit your requirement 1. Make sure the cooktop is turned off. Note: you can only set power management when the cooktop is turned off.
- Page 15 Power management Rules Using power management you can set the total power to 2.5kW/ 3.0kW/ 4.5kW/ 6.5kW and 7.4kW. The default total power setting is the maximum power level. If you increase it by touching ‘+’, the cooktop will beep 3 times and indicator will show a flashing ‘Pn’.
- Page 16 a. WIRELESS PARAMETERS Technology Wi-Fi Standard 802.11 b/g/n v4.2 BR/EDR &BLE Frequency Band(s) [MHz] 2400 ~ 2500 2400 ~ 2500 Maximum Power [mW] b. PRODUCT INFORMATION FOR NETWORKED EQUIPMENT Product information for networked equipment power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:...
-
Page 17: Restrictions When Using
Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking. Using the Boost to get larger power Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash. -
Page 18: Using The Pause Function
Using the Pause function Pause function can be used at any time during cooking. It allows to stop the induction cooktop and come back to it. 1. Make sure the cook zone is working. 2. Touch the button , the cooking zone indicator will show “ll”. And then the operation of the induction cooktop will be deactivate within the scope of all cooking zones, except the Pause function, on/off and lock keys. -
Page 19: Over Temperature Protection
Touch the keylock control. The timer indicator will show “ Lo “ To unlock the controls 1. Make sure the Induction hob is turned on. 2. Touch and hold the keylock control for a while 3. You can now start using your Induction hob. When the hob is in the lock mode, all the controls are disable except the ON/OFF you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation. -
Page 20: Using The Timer As A Minute Minder
Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one cooking zone off after the set time is up. •... - Page 21 Cooking zones set for this feature will: 1. Touching the heating zone selection control that you want to set the timer for. (e.g. zone 1#) 2. Touch timer control , The minder indicator will start flashing and “30” will show in the timer display.
- Page 22 Other cooking zone will keep operating if they are turned on previously. Setting the timer to turn more than one cooking zone 1. If use this function to more than one heating zone, the timer indicator will show the shortest time. (e.g.
-
Page 23: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the • When the power to the cooktop is glass (fingerprints, cooktop off. switched off, there will be no ‘hot 2. Apply a cooktop cleaner marks, stains left by surface’... -
Page 24: Hints And Tips
Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 25: Failure Display And Inspection
The induction hob or a Technical fault. Please note down the error cooking zone has letters and numbers, switch turned itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician. -
Page 26: Technical Specification
Technical Specification Cooking Hob HI642CWIFITT Cooking Zones 4 Zones Supply Voltage 220-240V~, 50-60Hz Installed Electric Power 2.5kw:2250-2750W or 3.0 kw:2700-3300W or 4.5kw:4050-4950W or 6.5kw:5850-7150W or 7.4kw:6600-7400W Product Size 590X520X60 L×W×H(mm) Building-in Dimensions 560X490 A×B (mm) Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. - Page 27 L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) 50 mini Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
-
Page 28: Before Locating The Fixing Brackets
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements) •... -
Page 29: Connecting The Hob To The Mains Power Supply
Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3. - Page 30 The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. 220-240V~ 220-240V~ 220-240V~ Input 400V~ 220-240V~ Input 400V~ Input Input 220-240V~ L1 L2 N1 N2 L1 L2 N Power Cord Power Cord Power Cord...
- Page 31 Product Information for Domestic Electric Hobs Compliant to Commission Regulation (EU) No 66/2014 Position Symbol Value Unit Model identification HI642CWIFITT Type of hob: Electric Hob Number of zones cooking zones areas and/or areas Induction Heating cooking zones technology (induction Induction...
- Page 32 Central central Central right Front left Front central Front right ECelectric Rear left 193,5 Wh/kg cooking Rear ECelectric Wh/kg central cooking ECelectric Rear right 197,2 Wh/kg cooking ECelectric Central left Wh/kg cooking Energy consumption for cooking Central ECelectric Wh/kg zone or area calculated per kg central cooking Central...
