6 . Adjust respectively, verify the measure-
ment, and secure both couplings with the
right torques on the locking screws (see
coupling operation & mounting instruction) .
7 . Mount the elastic gear ring and mount the
bell housing/pump on the motor . After
mounting it must be possible to move the
elastic gear ring 3-5 mm (0 . 1 2 - 0 .2 inch)
axial "C" . The check can be done through
the inspection hole of bell housing . Secure
flange bolts with the right torque .
1: Bolts: torque 100 Nm ±10 Nm
2: Nuts: torque 40 Nm ±4 Nm
3: Torque see table below
C

3.2 Direction of rotation

Is indicated by an arrow on the pump label .
PUMP
Type APP W HC 15
Code no. 180B5000
Serial no. XXXXXX02-XXX

3.3 Orientation

The pump can be mounted/orientated in any
horizontal direction with the inlet and the outlet
pointing upwards, downwards or to either side .
180R9410 | AQ282628894589en-000801 | IOM APP W HC 15-30 Pumps | 01.2022
If alternative mounting is desired, please contact
Danfoss High Pressure Pumps .
Choose proper tolerances to ensure an easy
mounting of the elastic coupling without use of
tools .
Please take care to observe the recommended
length tolerances of the chosen coupling, as an
axial force on the pump will damage the pump .

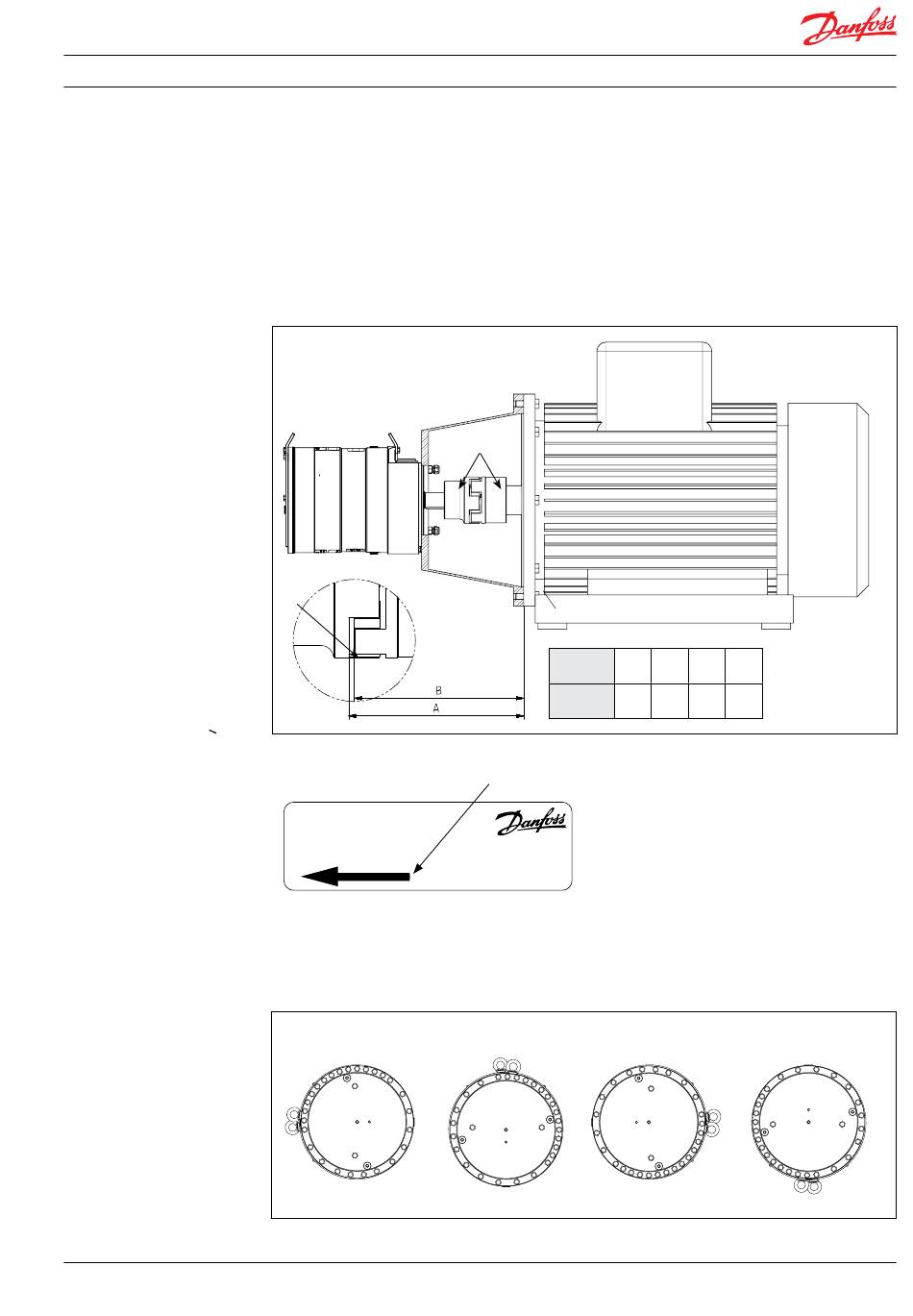

("C" can be found on the drawing below) .
1
3
2
2
1
Thread
size
Torque
(Nm)

3.4 Protection from too high pressures

The pump should be protected against too high
pressure by means of a safety valve or a pressure
relief valve .
MADE IN DENMARK The valve should be placed as close to the pump
as possible .
Danfoss A/S, 6430 Nordborg, Denmark
The opening characteristics of the valve must not
result in peak pressures higher than 132 barg
(1914 psig) .
We recommend the use of flexible soft hoses
both in the inlet and in the outlet lines .
M5 M6 M8 M10
2 4 .8 10 17
