Summary of Contents for Hoover HV-RCF688D

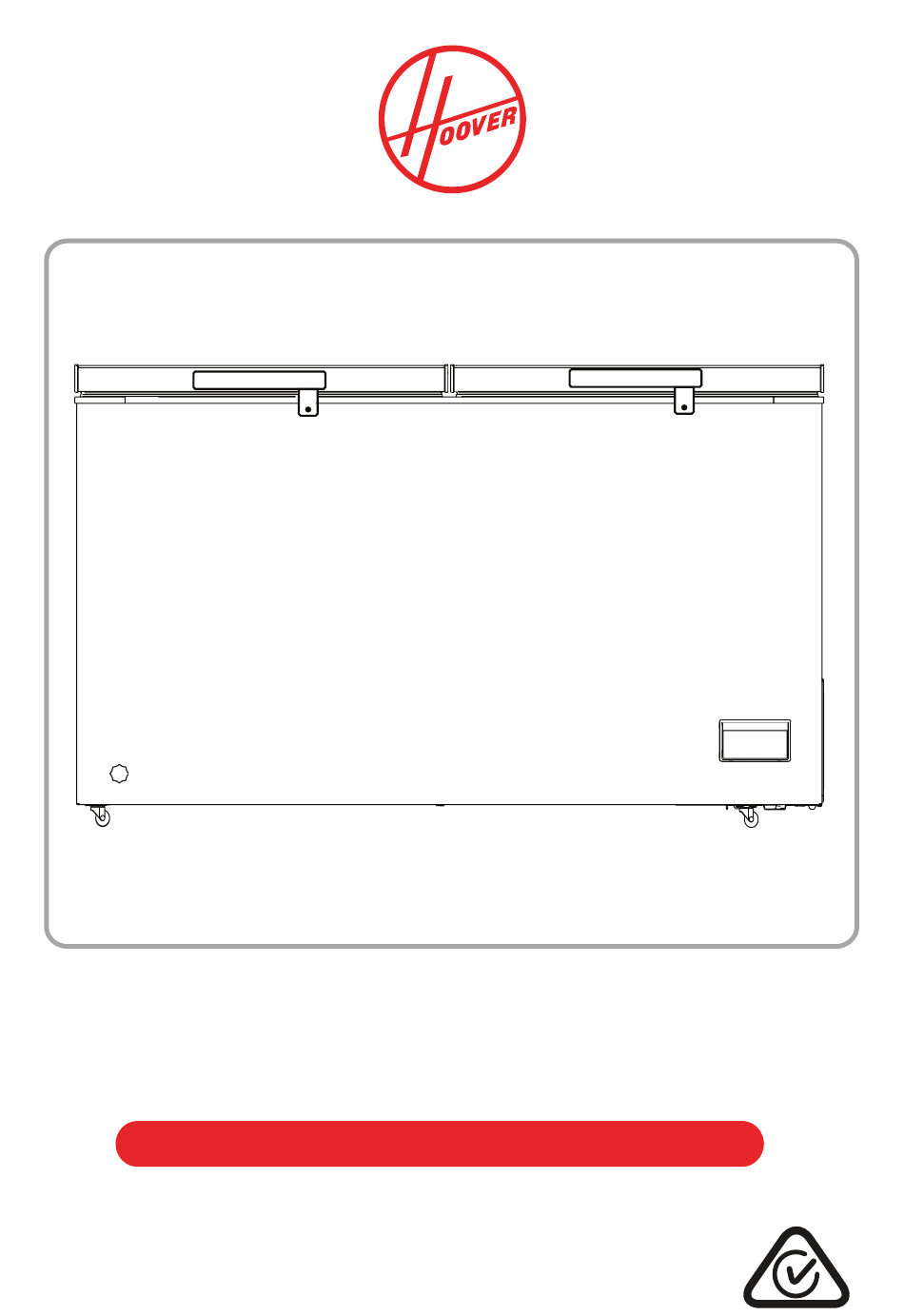

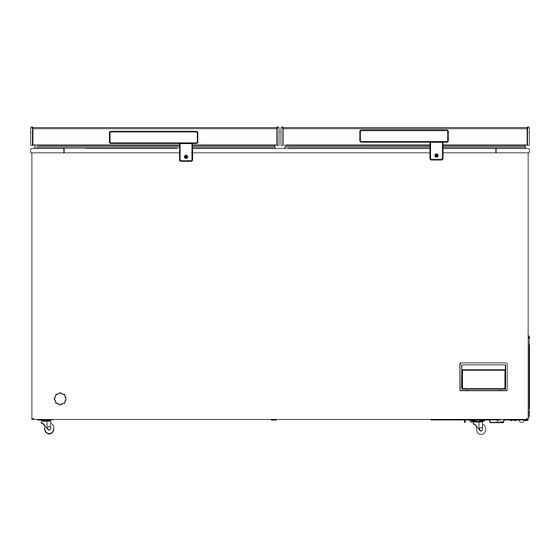

- Page 1 688 L Digital Chest Freezer Model Number: HV-RCF688D INSTRUCTION MANUAL AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Product Overview Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. - Page 4 Important Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Electrical safety • Voltage: Plug the appliance in a 220-240 V, 50 Hz, properly earthed power outlet, which must be in good working order.
- Page 5 Important Safety Instructions (Cont.) • Usage restrictions: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Page 6 Important Safety Instructions (Cont.) • Location: Choose a well ventilated indoor area that meets the following requirements: — Ambient temperature: The ambient temperatures must correspond to the climate class (T) indicated on the rating plate of the appliance: 18°C – 43°C. —...
-
Page 7: Product Overview
Product Overview Scope of delivery Parts list External handle (see page 17 for more information) NOTE: Indicator lights Due to continued Interior storage cabinet product improvement, Drainage hole images and illustrations Thermostat in this manual may vary Wire storage basket (removable)) slightly from the product Roll wheels (6) (not visible purchased. -
Page 8: Getting Started
Getting Started Unpacking • Unpacking: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance, including any foam pads and tapes. Tear the protective film (if any) off the lid and freezer cabinet. - Page 9 Getting Started (Cont.) Installation Space requirements Fig. 1 • Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary ≥70 cm to cool the compressor and condenser. Allow at least 10 cm clear space at the back and sides of the unit (Fig.
-
Page 10: Instructions
Instructions Temperature control The electronic control panel is located at the front of the freezer cabinet, in the bottom right corner (Fig. 2). Super freezing Temperature indicator lights indicator lights Fig. 2 Set button Running indicator OFF button light Switching on •... - Page 11 Instructions (Cont.) • Press the SET button continue to cycle through the temperature levels. • The temperature level will automatically set 5 seconds after the last button press. NOTE: 30 minutes after the last button press, the illuminator light will lower to half luminance.
- Page 12 Instructions (Cont.) The freezer compartment The freezer compartment is suitable for freezing fresh food and long-term storage (up to three months) of frozen food. It is designed to operate in ambient (surrounding air) temperatures between 18°C and 43°C. For convenient access and organised storage, the freezer compartment is equipped with two wire storage baskets.
- Page 13 Instructions (Cont.) Saving energy • Locate the freezer in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. • Let hot foods cool to room temperature before placing them in the freezer. Overloading the freezer forces the compressor to run longer. •...
-
Page 14: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with your chest freezer, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your freezer, contact our after sales support line for advice. CAUTION: Before troubleshooting, disconnect the power supply. - Page 15 FAQs and Troubleshooting Guide (Cont.) There is an unpleasant odour • Ensure food with strong odours is tightly inside the freezer cabinet. wrapped/packaged before freezing it. • Check and ensure that there is no spoilt food and that the freezer cabinet is clean. The temperature of the external •...
-
Page 16: Other Useful Information
Other Useful Information WARNING! To reduce the risk of electric shock or injury, always disconnect the appliance from the power supply before defrosting or cleaning it. Defrosting the freezer When the unit is run in “Freezer” mode, its interior walls will become progressively covered with frost. - Page 17 Other Useful Information (Cont.) Installing the External Handle • To install the external handle of this appliance, gather the external handle and four screws from the accessory bag. • Then, fix the handle base (a) to the lid of the appliance using these screws (b) (Fig. 4). Fig.
- Page 18 Other Useful Information (Cont.) WARNING! • Never use sharp or metallic tools to scrape off frost from the evaporator as you could damage it. To scrape ice off surfaces, use a plastic scraper. • Never use boiling water to accelerate defrosting as it may damage the plastic parts. Cleaning the freezer For hygienic reasons clean the appliance interior and accessories regularly.
- Page 19 • Install the LED electronic part in the door liner and attach with screws. • Install the lamp cover on the holder and fix it in place to complete this process. Technical specifications Model HV-RCF688D Rated Voltage 220-240 V~ Rated Frequency...
- Page 20 Other Useful Information (Cont.) Responsible disposal • At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately.
- Page 21 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 22 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 23 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
