Instruction Manual
UPRIGHT FREEZER

Advertisement

Table of Contents
loading

Related Manuals for Hoover 37000601

Summary of Contents for Hoover 37000601

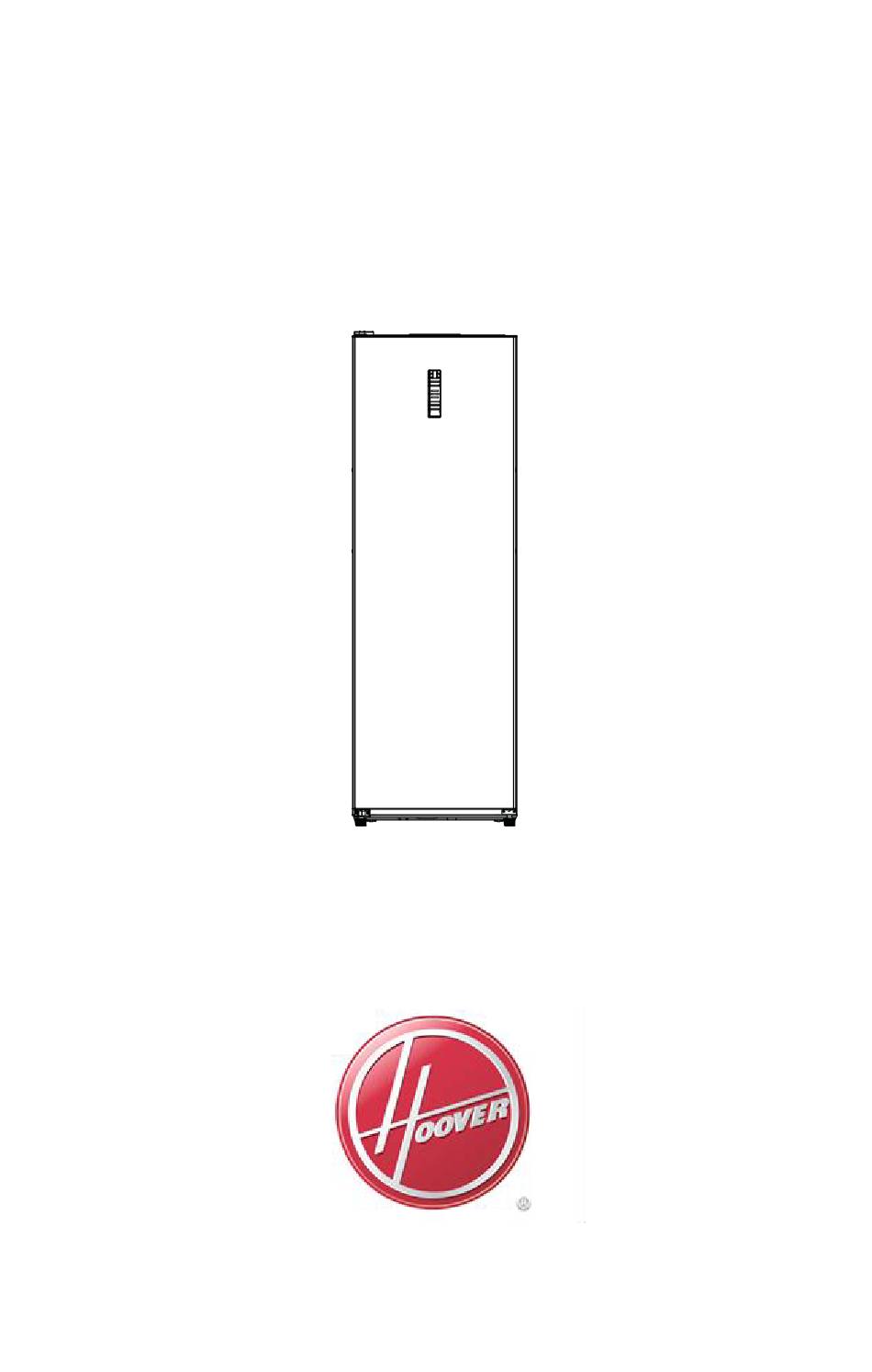

  • Page 1 Instruction Manual UPRIGHT FREEZER...

  • Page 2: Table Of Contents

    CONTENTS 1 Safety warnings 2 Proper use of the refrigerator Placement ········································································································ 6 2.2 Door handle installation ······················································································ 7-8 Leveling feet ··········································································································· 9 2.4 Door Right-Left Change ························································································ 10-13 2.5 Connecting for refrigerator and freezer cabinets ······························································· 14 Starting ··········································································································· 15 2.7 Energy saving tips ···································································································...
  • Page 3 Inglese Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, offices and other working environments - on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B &...
  • Page 4  This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance. ...
  • Page 5  Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.  This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).  Do not store medicine or research materials in the Wine Coolers.
  • Page 6  Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.  Do not place objects and/or containers filled with water on the top of the appliance.  We do not recommend the use of extension leads and multi-way adapters.
  • Page 7  Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.  Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.  Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
  • Page 8  The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.  The guarantee is applicable only to new products and is not transferable if the product is resold. ...

  • Page 9: Placement

    2 Proper use of refrigerators 2.1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

  • Page 10: Door Handle Installation

    2.2 Door handle installation Precautions before installation: Information in the Instruction Manual is only for reference. The physical product may differ. Before installation of accessories, it shall be ensured that the refrigerator is disconnected from power..Before installation of the door handle, precautions shall be taken to prevent fall of the handle from causing any personal injury.
  • Page 11 3) Cover the nut cap ④ of handle hole. ④ （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor）...

  • Page 12: Leveling Feet

    2.3 Leveling feet Precautions before installation: Information in the Instruction Manual is only for reference. The physical product may differ. Before installation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury. 1) Schematic diagram of the leveling feet （The picture above is only for reference.

  • Page 13: Door Right-Left Change

    Door Right-Left Change Precautions before installation: Information in the Instruction Manual is only for reference. The physical product may differ. Before , it shall be ensured that the refrigerator is disconnected Change the door from power.Before installation of the door handle, precautions shall be taken to prevent fall of the handle from causing any personal injury.
  • Page 14 2） P ull off the signal line of the door body and use socket and ratchet remove the screw of upper hinge. Remove the upper hinge screw signal line 3） Remove the door body and take off the r ight hinge.
  • Page 15 , install 4) Turn over the lower hinge installation shaft on the other side of hinge (Fig. a) and install the adjusted lower hinge on the left side of refrigerator (Fig. b) （a） （b）...
  • Page 16 5） Install door body, with door body signaling cables changed from the r ight to the left; insert ter minal; mount upper hinge (Fig. a); an d place left upper hinge cover plate①，upper cap cover plate②, an d right hinge cover plate ③ (Fig. b) （a）...

  • Page 17: Connecting For Refrigerator And Freezer Cabinets

    2.5 Connecting for refrigerator and freezer cabinets 1） Put two cabinets together with only 10mm gap，Fix the connecting hinge to the place as shown in the picture. 2）Fit the lower connecting hinge at the bottom of two cabinets. 3）Put the bar inside the gap between two cabinets. The connecting Step finished.. （The picture above is only for reference.

  • Page 18: Starting

    2.6 Starting Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high. 597mm Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

  • Page 19: Structure And Functions

    3 Structure and functions 3.1 Key components air duct component Tray upon the door Folding top cover Glass shelf Refrigerating drawer （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.

  • Page 20: Functions

    3.2 Functions ① ② ③ ④ ⑤ ⑥ 1) Key A.SET: gear setting key 2) Display screen ① Gear 1 ② Gear 2 ③ Gear 3 ④ Gear 4 ⑤ Gear 5 ⑥ Super 3) Display When the fridge power is on: Wait 3 seconds for display screen starting up.

  • Page 21: Overall Cleaning

    4. Maintenance and care of the appliance 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning.

  • Page 22: Frequently Asked Questions

    5 Frequently asked questions 5.1 You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped...
  • Page 23 SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
  • Page 24 CANDY HOOVER GROUP S.R.L. Via Privata Eden Fumagalli 20047 Brugherio Milan Italy...

This manual is also suitable for:

Hls1862wdkm
