Philips Consumer Lifestyle

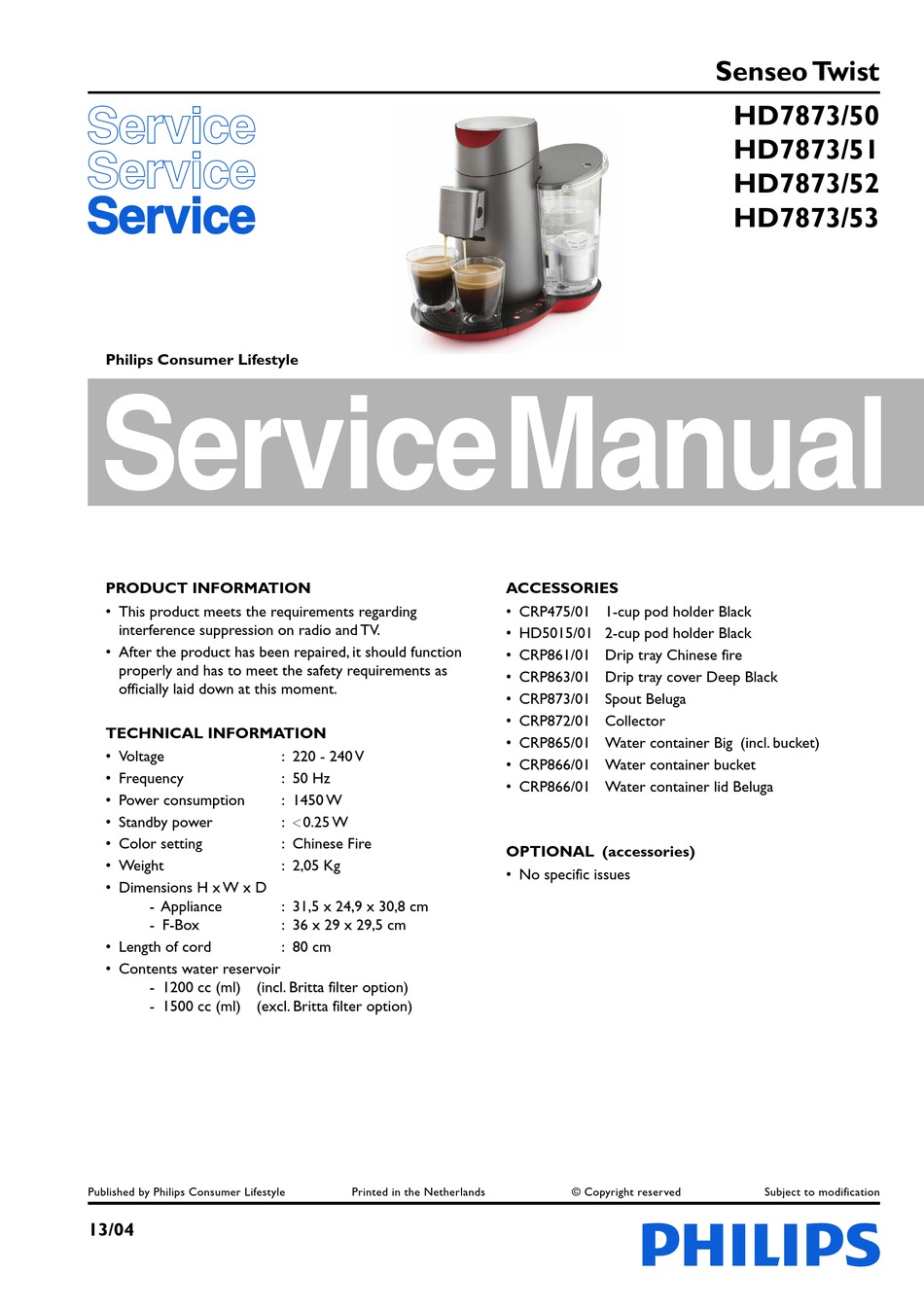

Service Manual
PRODUCT INFORMATION
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Voltage
• Frequency
• Power consumption
• Standby power
• Color setting
• Weight
• Dimensions H x W x D
- Appliance
- F-Box
• Length of cord
• Contents water reservoir
- 1200 cc (ml) (incl. Britta filter option)
- 1500 cc (ml) (excl. Britta filter option)
Published by Philips Consumer Lifestyle
13/04
: 220 - 240 V
: 50 Hz
: 1450 W
: 0.25 W
: Chinese Fire
: 2,05 Kg
: 31,5 x 24,9 x 30,8 cm
: 36 x 29 x 29,5 cm
: 80 cm
Printed in the Netherlands
ACCESSORIES
• CRP475/01 1-cup pod holder Black
• HD5015/01 2-cup pod holder Black
• CRP861/01 Drip tray Chinese fire
• CRP863/01 Drip tray cover Deep Black
• CRP873/01 Spout Beluga
• CRP872/01 Collector
• CRP865/01 Water container Big (incl. bucket)
• CRP866/01 Water container bucket
• CRP866/01 Water container lid Beluga
OPTIONAL (accessories)
• No specific issues
© Copyright reserved
Senseo Twist
HD7873/50
HD7873/51
HD7873/52
HD7873/53
Subject to modification
