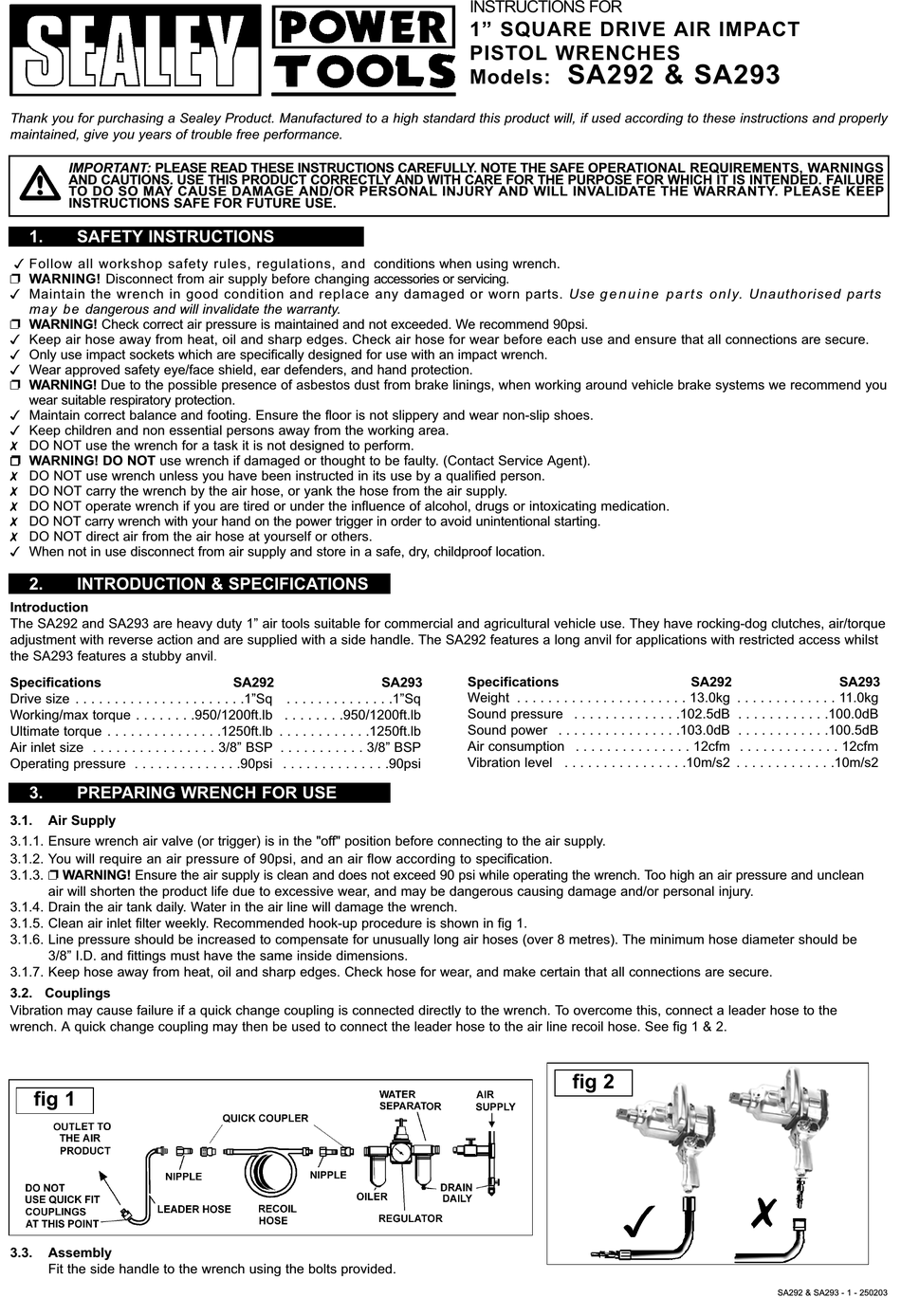

Sealey POWER TOOLS SA292 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS
AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE
TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP
INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! Follow all workshop safety rules, regulations, and conditions when using wrench.
F WARNING! Disconnect from air supply before changing accessories or servicing.
! Maintain the wrench in good condition and replace any damaged or worn parts. Use g e n u i n e p a r t s o n l y. Unauthorised parts
may be dangerous and will invalidate the warranty.
F WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
! Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
! Only use impact sockets which are specifically designed for use with an impact wrench.
! Wear approved safety eye/face shield, ear defenders, and hand protection.
F WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we recommend you
wear suitable respiratory protection.
! Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
! Keep children and non essential persons away from the working area.
% DO NOT use the wrench for a task it is not designed to perform.
F WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
p
% DO NOT use wrench unless you have been instructed in its use by a qualified person.
% DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
% DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
% DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
% DO NOT direct air from the air hose at yourself or others.
! When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
Introduction
The SA292 and SA293 are heavy duty 1” air tools suitable for commercial and agricultural vehicle use. They have rocking-dog clutches, air/torque
adjustment with reverse action and are supplied with a side handle. The SA292 features a long anvil for applications with restricted access whilst
the SA293 features a stubby
Specifications
Drive size . . . . . . . . . . . . . . . . . . . . . .1”Sq . . . . . . . . . . . . . .1”Sq
Working/max torque . . . . . . . .950/1200ft.lb . . . . . . . .950/1200ft.lb
Ultimate torque . . . . . . . . . . . . . . .1250ft.lb . . . . . . . . . . . .1250ft.lb
Air inlet size . . . . . . . . . . . . . . . . 3/8” BSP . . . . . . . . . . . 3/8” BSP
Operating pressure . . . . . . . . . . . . . .90psi . . . . . . . . . . . . . .90psi
3. PREPARING WRENCH FOR USE
3.1. Air Supply
3.1.1. Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
3.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
3.1.3. F WARNING! Ensure the air supply is clean and does not exceed 90 psi while operating the wrench. Too high an air pressure and unclean
air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the wrench.
3.1.5. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig 1.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
3/8” I.D. and fittings must have the same inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
3.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the wrench. To overcome this, connect a leader hose to the
wrench. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig 1 & 2.
fig 1
3.3. Assembly
Fit the side handle to the wrench using the bolts provided.
anvil.
SA292
INSTRUCTIONS FOR
1” SQUARE DRIVE AIR IMPACT
PISTOL WRENCHES
Models:
Specifications
SA293
Weight . . . . . . . . . . . . . . . . . . . . . . 13.0kg . . . . . . . . . . . . . 11.0kg
Sound pressure . . . . . . . . . . . . . .102.5dB . . . . . . . . . . . .100.0dB
Sound power . . . . . . . . . . . . . . . .103.0dB . . . . . . . . . . . .100.5dB
Air consumption . . . . . . . . . . . . . . . 12cfm . . . . . . . . . . . . . 12cfm
Vibration level . . . . . . . . . . . . . . . .10m/s2 . . . . . . . . . . . . .10m/s2
SA292 & SA293
SA292
fig 2
SA293
SA292 & SA293 - 1 - 250203
