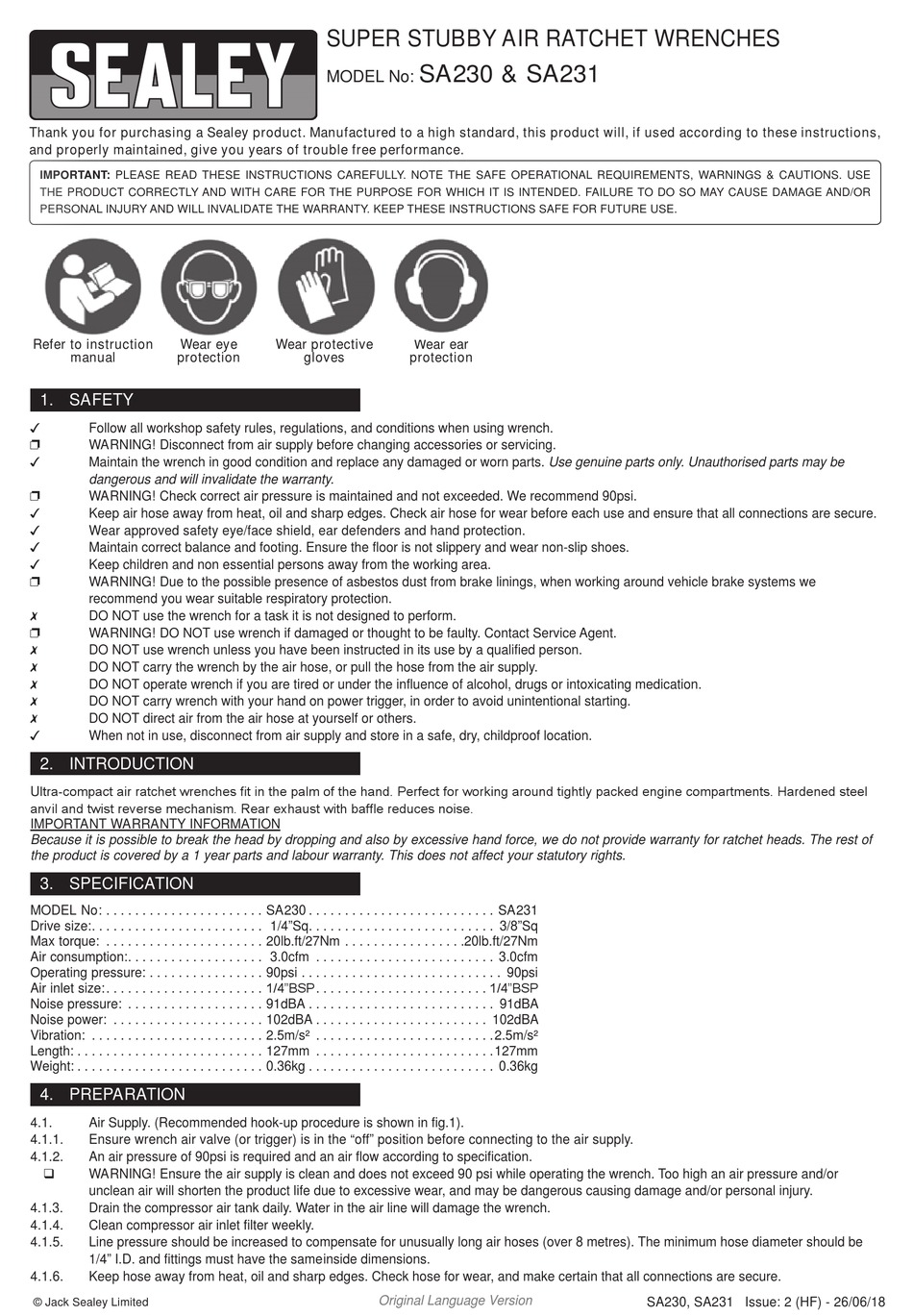

Sealey SA230 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to instruction Wear eye
manual protection
1. SAFETY
Follow all workshop safety rules, regulations, and conditions when using wrench.

WARNING! Disconnect from air supply before changing accessories or servicing.

Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be

dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.

Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.

Wear approved safety eye/face shield, ear defenders and hand protection.

Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

Keep children and non essential persons away from the working area.

WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we

recommend you wear suitable respiratory protection.
DO NOT use the wrench for a task it is not designed to perform.

WARNING! DO NOT use wrench if damaged or thought to be faulty. Contact Service Agent.

DO NOT use wrench unless you have been instructed in its use by a qualified person.

DO NOT carry the wrench by the air hose, or pull the hose from the air supply.

DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT carry wrench with your hand on power trigger, in order to avoid unintentional starting.

DO NOT direct air from the air hose at yourself or others.

When not in use, disconnect from air supply and store in a safe, dry, childproof location.

2. INTRODUCTION
Ultra-compact air ratchet wrenches fit in the palm of the hand. Perfect for working around tightly packed engine compartments. Hardened steel
anvil and twist reverse mechanism. Rear exhaust with baffle reduces noise.
IMPORTANT WARRANTY INFORMATION
Because it is possible to break the head by dropping and also by excessive hand force, we do not provide warranty for ratchet heads. The rest of
the product is covered by a 1 year parts and labour warranty. This does not affect your statutory rights.
3. SPECIFICATION
MODEL No: . . . . . . . . . . . . . . . . . . . . . . SA230 . . . . . . . . . . . . . . . . . . . . . . . . . . SA231
Drive size:. . . . . . . . . . . . . . . . . . . . . . . . 1/4"Sq. . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"Sq
Max torque: . . . . . . . . . . . . . . . . . . . . . . 20lb.ft/27Nm . . . . . . . . . . . . . . . . .20lb.ft/27Nm
Air consumption:. . . . . . . . . . . . . . . . . . . 3.0cfm . . . . . . . . . . . . . . . . . . . . . . . . . 3.0cfm
Operating pressure: . . . . . . . . . . . . . . . . 90psi . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90psi
Air inlet size: . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP. . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Noise pressure: . . . . . . . . . . . . . . . . . . . 91dBA . . . . . . . . . . . . . . . . . . . . . . . . . . 91dBA
Noise power: . . . . . . . . . . . . . . . . . . . . . 102dBA . . . . . . . . . . . . . . . . . . . . . . . . 102dBA
Vibration: . . . . . . . . . . . . . . . . . . . . . . . . 2.5m/s² . . . . . . . . . . . . . . . . . . . . . . . . .2.5m/s²
Length: . . . . . . . . . . . . . . . . . . . . . . . . . . 127mm . . . . . . . . . . . . . . . . . . . . . . . . .127mm
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . 0.36kg . . . . . . . . . . . . . . . . . . . . . . . . . . 0.36kg
4. PREPARATION
4.1. Air Supply. (Recommended hook-up procedure is shown in fig.1).
4.1.1. Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
4.1.2. An air pressure of 90psi is required and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 90 psi while operating the wrench. Too high an air pressure and/or
‰
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.3. Drain the compressor air tank daily. Water in the air line will damage the wrench.
4.1.4. Clean compressor air inlet filter weekly.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4" I.D. and fittings must have the same inside dimensions.
4.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
© Jack Sealey Limited
SUPER STUBBY AIR RATCHET WRENCHES
SA230 & SA231
MODEL No:
Wear protective Wear ear
gloves protection
Original Language Version
SA230, SA231 Issue: 2 (HF) - 26/06/18
