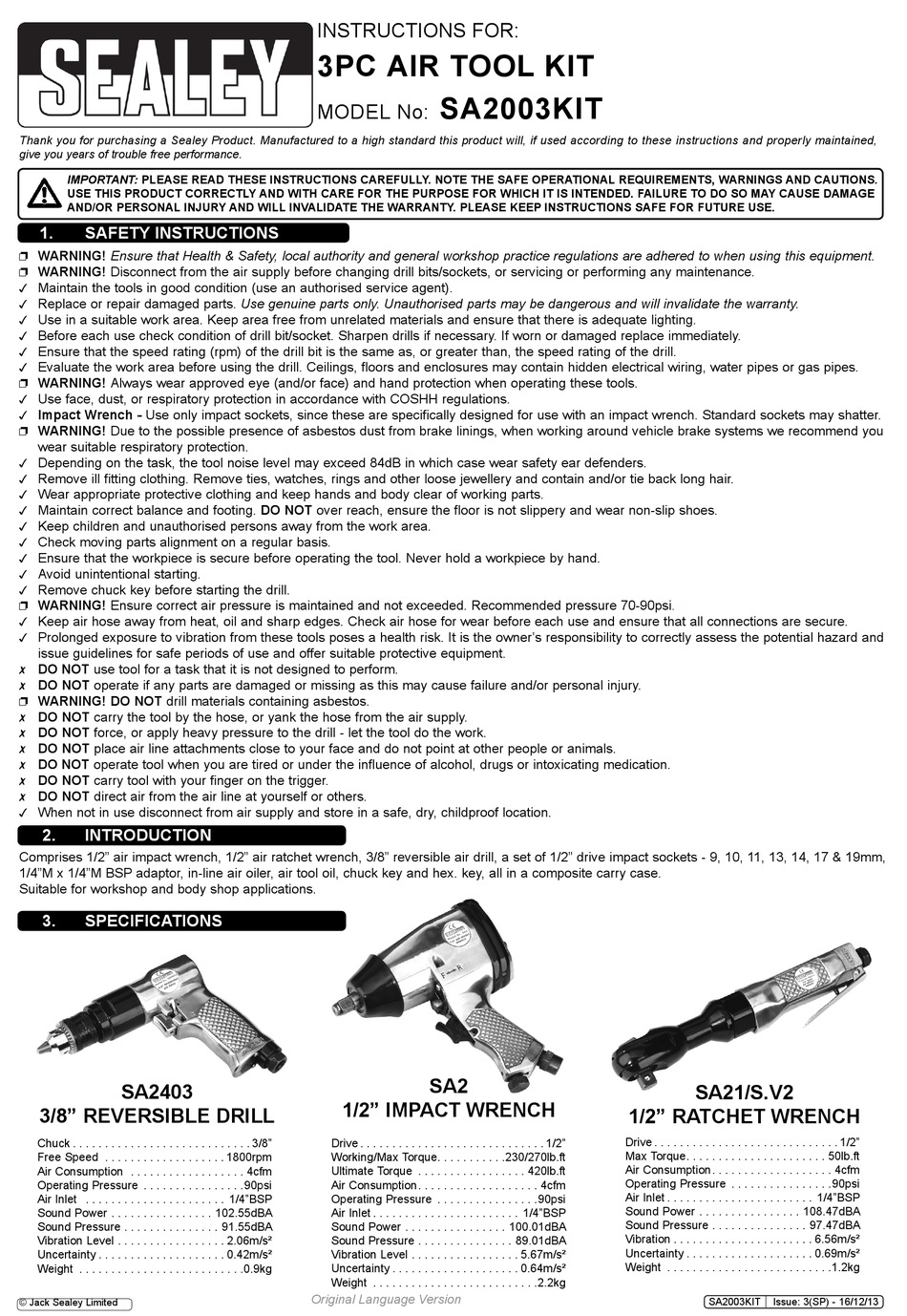

Sealey SA2003KIT Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure that Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.

WARNING! Disconnect from the air supply before changing drill bits/sockets, or servicing or performing any maintenance.

Maintain the tools in good condition (use an authorised service agent).

Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

Use in a suitable work area. Keep area free from unrelated materials and ensure that there is adequate lighting.

Before each use check condition of drill bit/socket. Sharpen drills if necessary. If worn or damaged replace immediately.

Ensure that the speed rating (rpm) of the drill bit is the same as, or greater than, the speed rating of the drill.

Evaluate the work area before using the drill. Ceilings, floors and enclosures may contain hidden electrical wiring, water pipes or gas pipes.

WARNING! Always wear approved eye (and/or face) and hand protection when operating these tools.

Use face, dust, or respiratory protection in accordance with COSHH regulations.

Impact Wrench - Use only impact sockets, since these are specifically designed for use with an impact wrench. Standard sockets may shatter.

WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we recommend you

wear suitable respiratory protection.
Depending on the task, the tool noise level may exceed 84dB in which case wear safety ear defenders.

Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain and/or tie back long hair.

Wear appropriate protective clothing and keep hands and body clear of working parts.

Maintain correct balance and footing. DO NOT over reach, ensure the floor is not slippery and wear non-slip shoes.

Keep children and unauthorised persons away from the work area.

Check moving parts alignment on a regular basis.

Ensure that the workpiece is secure before operating the tool. Never hold a workpiece by hand.

Avoid unintentional starting.

Remove chuck key before starting the drill.

WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure

Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.

Prolonged exposure to vibration from these tools poses a health risk. It is the owner's responsibility to correctly assess the potential hazard and

issue guidelines for safe periods of use and offer suitable protective equipment.
DO NOT use tool for a task that it is not designed to perform.

DO NOT operate if any parts are damaged or missing as this may cause failure and/or personal injury.

WARNING! DO NOT drill materials containing asbestos.

DO NOT carry the tool by the hose, or yank the hose from the air supply.

DO NOT force, or apply heavy pressure to the drill - let the tool do the work.

DO NOT place air line attachments close to your face and do not point at other people or animals.

DO NOT operate tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT carry tool with your finger on the trigger.

DO NOT direct air from the air line at yourself or others.

When not in use disconnect from air supply and store in a safe, dry, childproof location.

2. INTRODUCTION
Comprises 1/2" air impact wrench, 1/2" air ratchet wrench, 3/8" reversible air drill, a set of 1/2" drive impact sockets - 9, 10, 11, 13, 14, 17 & 19mm,
1/4"M x 1/4"M BSP adaptor, in-line air oiler, air tool oil, chuck key and hex. key, all in a composite carry case.
Suitable for workshop and body shop applications.
3. SPECIFICATIONS
SA2403
3/8" REVERSIBLE DRILL
Chuck . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"
Free Speed . . . . . . . . . . . . . . . . . . . 1800rpm
Air Consumption . . . . . . . . . . . . . . . . . . 4cfm
Operating Pressure . . . . . . . . . . . . . . . .90psi
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Sound Power . . . . . . . . . . . . . . . . 102.55dBA
Sound Pressure . . . . . . . . . . . . . . . 91.55dBA
Vibration Level . . . . . . . . . . . . . . . . . 2.06m/s²
Uncertainty . . . . . . . . . . . . . . . . . . . . 0.42m/s²
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .0.9kg
© Jack Sealey Limited
INSTRUCTIONS FOR:
3PC AIR TOOL KIT
SA2003KIT
MODEL No:
SA2
1/2" IMPACT WRENCH
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2"
Working/Max Torque. . . . . . . . . . .230/270lb.ft
Ultimate Torque . . . . . . . . . . . . . . . . . 420lb.ft
Air Consumption. . . . . . . . . . . . . . . . . . . 4cfm
Operating Pressure . . . . . . . . . . . . . . . .90psi
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Sound Power . . . . . . . . . . . . . . . . 100.01dBA
Sound Pressure . . . . . . . . . . . . . . . 89.01dBA
Vibration Level . . . . . . . . . . . . . . . . . 5.67m/s²
Uncertainty . . . . . . . . . . . . . . . . . . . . 0.64m/s²
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .2.2kg
Original Language Version
70-90psi.
SA21/S.V2
1/2" RATCHET WRENCH
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2"
Max Torque. . . . . . . . . . . . . . . . . . . . . . 50lb.ft
Air Consumption. . . . . . . . . . . . . . . . . . . 4cfm
Operating Pressure . . . . . . . . . . . . . . . .90psi
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Sound Power . . . . . . . . . . . . . . . . 108.47dBA
Sound Pressure . . . . . . . . . . . . . . . 97.47dBA
Vibration . . . . . . . . . . . . . . . . . . . . . . 6.56m/s²
Uncertainty . . . . . . . . . . . . . . . . . . . . 0.69m/s²
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .1.2kg
SA2003KIT Issue: 3(SP) - 16/12/13
