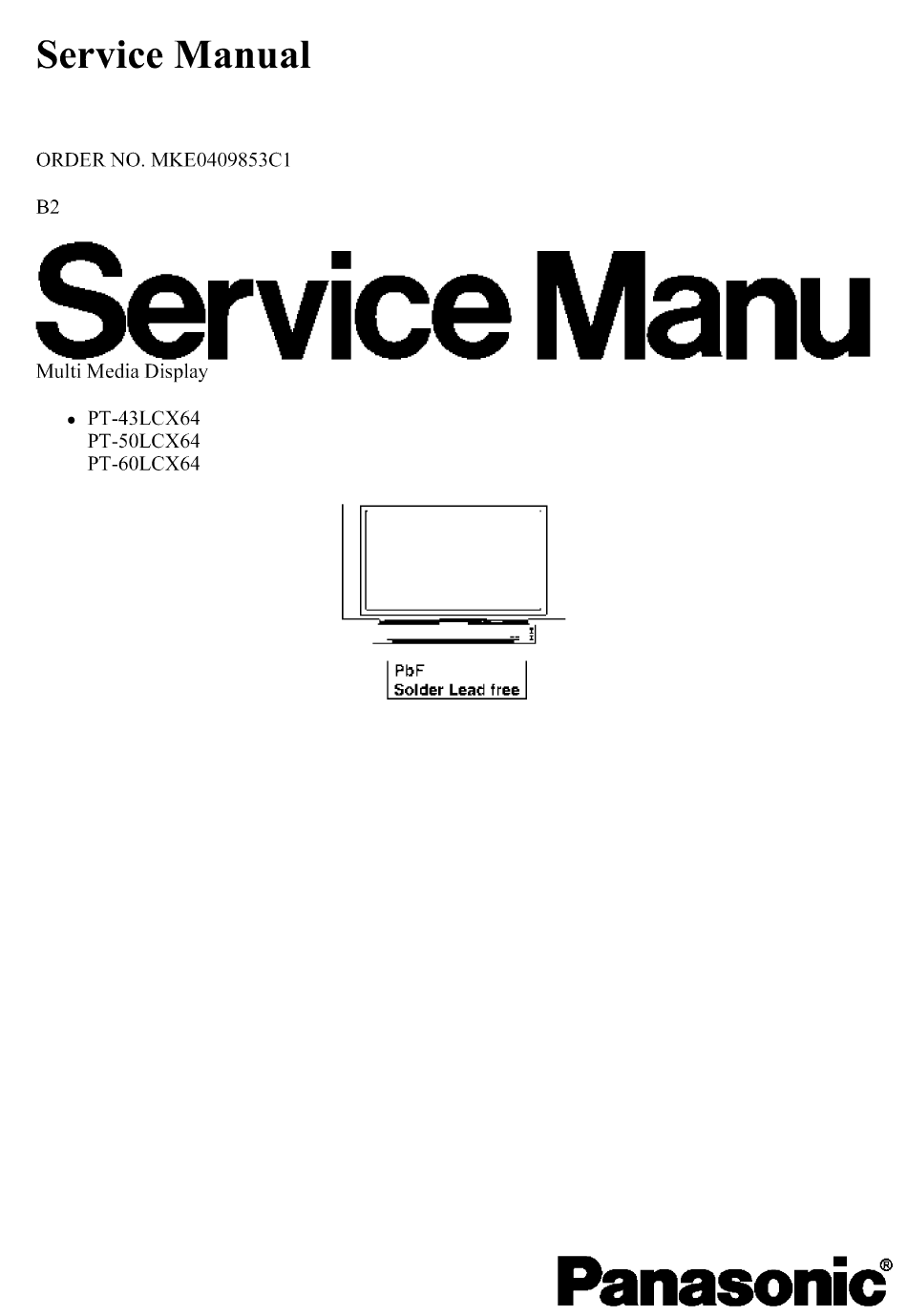

Panasonic PT-43LCX64 Service Manual

Panasonic PT-43LCX64 Service Manual

Hide thumbs Also See for PT-43LCX64:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Panasonic PT-43LCX64

Summary of Contents for Panasonic PT-43LCX64

  • Page 2 1.1 GENERAL GUIDELINES TOP PREVIOUS NEXT 1. For continued safety, no modification of any circuit should be attempted. 2. Disconnect AC Plug before disassembling this unit. 3. It is advisable to use an isolation transformer in the AC supply before servicing. 4.
  • Page 3 1.1 GENERAL GUIDELINES TOP PREVIOUS NEXT 1. For continued safety, no modification of any circuit should be attempted. 2. Disconnect AC Plug before disassembling this unit. 3. It is advisable to use an isolation transformer in the AC supply before servicing. 4.
  • Page 4 1.2 LEAKAGE CURRENT COLD CHECK TOP PREVIOUS NEXT 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. 2. For physically operated power switches, turn power on. Otherwise skip step 2. 3. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the receiver, such as screwheads, connectors, etc.
  • Page 5 1.3 LEAKAGE CURRENT HOT CHECK TOP PREVIOUS NEXT 1. Plug the AC cord directly into the AC outlet. Do not use a isolation transformer for this check. 2. Connect a 1.5 kΩ, 10 W resistor, in parallel with a 0.15 μF capacitor, between each exposed metallic part on the set and a good earth ground, as shown in Figure 1.
  • Page 6 1.4 UV-PRECAUTION TOP PREVIOUS NEXT 1. Be sure to disconnect the AC Plug when replacing the lamp. 2. Since the lamp reaches a very high temperature during its operation, wait until it has completely cooled off when replacing the Lamp Unit. 3.
  • Page 7 2 PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES TOP PREVIOUS NEXT Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistorsandsemiconductor"chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).
  • Page 8 3 ABOUT LEAD FREE SOLDER (PbF) TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
  • Page 9 4 SERVICE NOTES TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
  • Page 10 5 DISASSEMBLY/ ASSEMBLY PROCEDURES TOP PREVIOUS NEXT 5.1 CABINET SECTION TOP PREVIOUS NEXT...
  • Page 11 6 ADJUSTMENT PROCEDURES 1 TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
  • Page 12 7 TROUBLESHOOTING HINTS FOR BLOCK LEVEL REPAIR TOP PREVIOUS NEXT TOP PREVIOUS NEXT...
  • Page 13 PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT. R6706 R6702 R6707 Q6702 Q6701 R6703 P6701 SW6703 SW6704 SW6701 SW6702 SW6706 D6701 VOL. VOL. SW6705 INPUT DOWN DOWN POWER LSJB3149 FRONT JACK C.B.A. LSEP3094A (DUAL PATTERNS) OPERATION C.B.A. LSEP3149A NETWORK C.B.A. LSEP3097A PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 14 PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT. IC4503 C4528 C4516 J2911 LSJB3092 SW2911 LAMP COVER P2912 AUDIO AMP C.B.A. LSEP3092A LSJB3098 THERMISTOR 1 C.B.A. LSEP3136A THERMISTOR 2 C.B.A. LSEP3137A COVER SWITCH C.B.A. LSEP3098A PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 15 Ref. No. of the connection parts such as lead cable, flexible cable which is supplied as a replacement parts. The Number of pins of the Connector. POWER SUPPLY C.B.A. MAIN C.B.A. P1503 P3004 (10 Pins) Connector No. on Main C.B.A. SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 16 ANT-B P4551 (R-CH) TWEETER UHF/VHF SUB TUNER NETWORK C.B.A. (1 Pins) P7006 P3503 P4553 SPEAKER (2 Pins) P7006 (11 Pins) P4552 (L-CH) WOOFER (25 Pins) SPEAKER (2 Pins) P7008 P4551 (L-CH) TWEETER (3 Pins) INTERCONNECTION SCHEMATIC DIAGRAM FAN 5 PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 17 R3904 RGB2_R BLUE RETURN RGB2_G FL3901 PT[3216] RGB2_B I2C DATA HSYNC R3905 RGB2_H VSYNC I2C SCK RGB2_V FL3902 PT[2012] RGB2_L_AUDIO RGB2_R_AUDIO JK4802 K2HC103A0017 R4803 RGB AUDIO IN2 FL4803 PT[2012] R4804 D4803 D4804 LSJB3094 FL4804 FRONT JACK SCHEMATIC DIAGRAM PT[2012] PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 18 THERMISTOR 2 SCHEMATIC DIAGRAM TO LCD DRIVE C.B.A. P2304 P2821 SW2911 R2821 THERMO_2 K0L1BA000070 D4CE31330001 THERMO_1 LSJB3098 NETWORK SCHEMATIC DIAGRAM LAMP COVER SW THERMISTOR 1 SCHEMATIC DIAGRAM THERMISTOR 2 SCHEMATIC DIAGRAM LSJB3137 OPERATION SCHEMATIC DIAGRAM COVER SWITCH SCHEMATIC DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 19 RL4501 SW_IN_R 1200 K6B2AGA00038 SW_OUT_R J4505 P4503 SP_OUT_L TO NETWORK C.B.A.P4553 (FOR L-CH SPEAKER) AMP_GND SP_OUT_R TO NETWORK C.B.A.P4553 AMP_GND (FOR R-CH SPEAKER) R4526 Q4505 Q4504 2SD0601AHL 2SD0601AHL SWITCHING SWITCHING AUDIO MUTE-ON AUDIO MUTE-ON LSJB3092 AUDIO AMP SCHEMATIC DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 20 PT-43LCX64 / PT-50LCX64 / PT-60LCX64 9.2. INTERCONNECTION SCHEMATIC DIAGRAM INTERCONNECTION SCHEMATIC DIAGRAM IMPORTANT SAFETY NOTICE: THERMAL FUSE UNIT REPLACEMENT NOTE: COMPONENTS IDENTIFIED BY THE SIGN HAVE CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE NUMBER LSJA0464 (115 SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 21 P4501 P4503 P4553 (2 Pins) (4 Pins) P4552 (R-CH) WOOFER P3603 P4505 P4505 SPEAKER (6 Pins) (2 Pins) P4551 (R-CH) TWEETER NETWORK C.B.A. SPEAKER P4553 (2 Pins) P4552 (L-CH) WOOFER SPEAKER (2 Pins) P4551 (L-CH) TWEETER INTERCONNECTION SCHEMATIC DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 22 9.3. FRONT JACK SCHEMATIC DIAGRAM FRONT JACK SCHEMATIC DIAGRAM VIDEO SIGNAL(MAIN/SUB) SUB VIDEO SIGNAL AUDIO SIGNAL R3914 R3915 FL3911 SW_IN_L JK4801 PT[2012] K1U412A00008 SW_OUT_L R3916 H/P_IN_L AMP_GND TO REAR JACK C.B.A. P3502 P3902 H/P_IN_R S-VIDEO IN3 L3_CPS_NOSIG_L SW_IN_R FL3912 L3_S_IN_L SW_OUT_R PT[2012] LINE3_Y...
  • Page 23 PT-43LCX64 / PT-50LCX64 / PT-60LCX64 NOTE: NOTE: For placing a purchase order of the parts, FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 24 PT-43LCX64 / PT-50LCX64 / PT-60LCX64 9.4. NETWORK / THERMISTOR 1 / THERMISTOR 2 / OPERATION / COVER SWITC NETWORK SCHEMATIC DIAGRAM OPERA (FOR L-CH SPEAKER) AUDIO SIGNAL J4551 TO L-CH SPEAKER (TWEETER) P4551 C4551 R4551 SP_OUT_L_TW 3R3/63V AMP_GND TO L-CH SPEAKER TO AUDIO AMP C.B.A.
  • Page 25 POWER LSJB3149 COVER SWITCH SCHEMATIC DIAGRAM J2911 TO LCD DRIVE P2912 C.B.A. P2502 COVER SW SW2911 K0L1BA000070 NETWORK SCHEMATIC DIAGRAM LSJB3098 LAMP COVER SW THERMISTOR 1 SCHEMATIC DIAGRAM THERMISTOR 2 SCHEMATIC DIAGRAM OPERATION SCHEMATIC DIAGRAM COVER SWITCH SCHEMATIC DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 26 9.5. AUDIO AMP SCHEMATIC DIAGRAM AUDIO AMP SCHEMATIC DIAGRAM AUDIO AMP AUDIO SIGNAL C4534 C4535 100/6.3V 100/6.3V IC4503 C0CAAKE00013 (+12V REG.) +12V REG. TO POWER C.B.A. P4501 P1009 IC4501 C1AA00000660 (AUDIO AMP) P1010 P1011 C4512 C4513 C4501 C4511 C4510 1/50V[ 1000/35V C4502 1/50V[N]...
  • Page 27 PT-43LCX64 / PT-50LCX64 / PT-60LCX64 NOTE: NOTE: For placing a purchase order of the parts, FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 28 PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE PIN NO. VOLTAGE IC4501 Q6701 -19.2 -2.1 19.2 Q6702 15.0 -19.2 IC4503 19.2 12.0 Q4501 15.0 Q4504 12.0 Q4505 12.0 VOLTAGE CHART PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 29 LED INDICATIONS FOR ERROR CONDITION Each LED indication facilitates finding the cause of the error. When an error is detected, the Lamp comes off and the LED on the front will flash. POWER LED TV/VIDEO LAMP LED TEMP LED (Note 2) (Note 3) Error No.
  • Page 30 MAIN PARTS LOCATION <Front View> Network C.B.A. TEMP LED LAMP LED Lamp Cover Cover Switch C.B.A. Network C.B.A. Optical Cover POWER LED Front Cover Unit Operation C.B.A. <Rear View> Projection Unit Thermal Fuse Unit Thermistor 2 C.B.A. Fan 3 Thermistor 1 C.B.A. Air Filter Fan Case Unit (Fan 1)
  • Page 31 SERVICE MODE Service Mode Map In this mode, the following information can be confirmed on the screen: Enter : VOLUME DOWN button + TV/VIDEO key (on the front) (on the remote) Service Mode (1/3) (for more than 5 seconds in power off condition) •...
  • Page 32 BEFORE REMOVING THE MAIN C.B.A. OR WHEN REINSTALLING THE MAIN C.B.A. THE TV/TUNER UNIT FROM THE UNIT AT OR THE TV/TUNER UNIT INTO THE UNIT THE USER’S LOCATION AT THE USER’S LOCATION CAUTION: Note: 1. Set CURRENT LAMP value to original value as follows. The TV/Tuner Unit includes the Main C.B.A.
  • Page 33 REPLACEMENT OF LAMP Lamp Replacement Procedure: 1. Press the POWER button on the remote to turn off the power. Lamp Time Reset Procedure: 2. Wait for about 1 minute until the cooling fan stops. Be sure to reset the Lamp time to "0" after replacing the new Note: Lamp.
  • Page 34 CLEANING METHOD THE FILTER ON THE PROJECTION UNIT CAUTION: THE SCREEN UNIT AND THE MIRROR Operating with torn or damaged Air Filter may cause damage •THE SCREEN UNIT (Lenticular Screen, Fresnel Lens) to the Projection unit. It is strongly recommended that the Lenticular Screen surface Remove the Projection Unit from rear.
  • Page 35 And also, see the stamp on the Lamp Wall of the Projection TO DISTINGUISH THE PROJECTION Unit. (The stamp has been added on a running change basis.) LENS UNIT OR THE PROJECTION UNIT The only difference between the 43 inch model and the 50 inch model of the Projection Unit is the Projection Lens.
  • Page 36 Projection Unit. models included in this Service Manual. AIR FILTER CLEANING MARK MODEL IS RECOMMANDED AT THIS TIME. FIRST TURN THE PT-43LCX64 UNIT OFF. PT-50LCX64 PLEASE CALL FOR SERVICE. PT-60LCX64 NOT USED UNIT WILL BE TURNED OFF AFTER 1 MINUTE.
  • Page 37 WIRE AND LEAD POSITION DIAGRAM OF THE UNIT After servicing, make sure that all wires, leads, and clampers are placed in their original position. It is important for the best operation of the unit. Note: Use extreme care especially for the following. Clamper Fan 3 Clamper...
  • Page 38 After servicing, make sure that all wires, leads, and clampers are placed in their original position. It is important for the best operation of the unit. Note: Use extreme care especially for the following. P2303 (From Thermistor 1 C.B.A.) Thermistor 2 C.B.A.
  • Page 39 After servicing, make sure that all wires, leads, and clampers are placed in their original position. It is important for the best operation of the unit. Note: Use extreme care especially for the following. P7002 (From Digital P5501 Tuner Power (From Front C.B.A.) Jack C.B.A.)
  • Page 40 After servicing, make sure that all wires, leads, and clampers are placed in their original position. It is important for the best operation of the unit. Note: Use extreme care especially for the following. P1001 (To Ballast C.B.A.) P805 (To Ballast C.B.A.) P807/P808 (To Digital Tuner Power C.B.A.)
  • Page 41 CABINET SECTION DISASSEMBLY METHOD OF CABINET SECTION Cabinet section contains following removal procedures: REMOVAL OF THE BALLAST C.B.A. AND THE TV/TUNER UNIT FROM THE CABINET REMOVAL OF THE PROJECTION UNIT FROM THE CABINET REMOVAL OF THE TUNER C.B.A., THE DTV TUNER UNIT, THE MAIN C.B.A., THE DIGITAL TUNER POWER C.B.A., THE REAR JACK C.B.A., THE AUDIO AMP C.B.A., THE POWER C.B.A.
  • Page 42 REMOVAL OF THE BALLAST C.B.A. AND THE TV/TUNER UNIT FROM THE CABINET 1. (PT-43LCX64/PT-50LCX64) Remove the Rear Cover by removing the 18 Screws (401). Rear Cover Fig. D1-1-1 1. (PT-60LCX64) Remove the Rear Cover by removing the 20 Screws (401, 464).
  • Page 43 2. Remove the Rear Support Plate by removing the 4 Screws (401, 452). Rear Support Plate Fig. D1-2...
  • Page 44 3. 1) Remove the 5 Screws (402) and remove Clamper-1. 2) Remove the 2 Screws (451) on the Lamp Socket. 3) Disconnect the Lamp Connector. 4) Avoiding the Ballast C.B.A., disconnect Connector P1306 (Thermal Fuse Unit) inside of the Ballast C.B.A. 5) Remove the Clamper from the Ballast C.B.A.
  • Page 45 4. 1) Disconnect Connector P2901and release them from the clamper. 2) Disconnect Connector P2501 (20-pin Cable) and release it from the clamper. CAUTION: Take extreme care not to damage the 20-pin Cable when disconnecting. 5. 1) Disconnect Connectors P3502, P5501, P4503, P6305 and release them from the clampers. 2) Remove the Screw (452) on the GND Plate A.
  • Page 46 6. 1) Pull off the TV/Tuner Ass’y with the Ballast C.B.A. while taking care with the cables. 2) Remove the GND Plate A from the TV/Tuner Unit by removing the Screw (452). 3) Remove the SD Door Unit from the TV/Tuner Unit by releasing the 2 Locking Tabs. Ballast holes C.B.A.
  • Page 47 7. 1) Disconnect Connectors P6002, P805, P1001 and release them from the clampers. 2) Then, remove the Ballast C.B.A. P6002 Clamper Ballast C.B.A. P1001 Clamper P805 Fig. D1-8...
  • Page 48 REMOVAL OF THE PROJECTION UNIT FROM THE CABINET 1. Remove the Ballast C.B.A. and the TV/Tuner Unit. Refer to Steps 1~6 in "REMOVAL OF THE BALLAST C.B.A. AND THE TV/ TUNER UNIT FROM THE CABINET." 2. 1) Disconnect Connector P2502. Then, hook the P2502 cable to the pin. 2) Remove the 7 Screws (401) on the Projection Unit.
  • Page 49 CAUTION: Disconnect Connector P2502 and hook it as follows. P2502 Guide Tabs (X5) Cable Cover Switch Rear C.B.A. <Bottom View of Projection Unit> Projection Unit Slide holes Fig. D2-2 Reassembly Note: Before installing the Projection Unit, confirm that the P2502 cable is hooked to the pin. Then, install the Projection Unit to the cabinet.
  • Page 50 3. 1) Disconnect Connector P2904, and remove the Fan 3 Unit by removing the 2 Screw (402). 2) Remove the Top Duct 3 Unit by removing the 4 Screws (421). CAUTION: When removing the Screws (421) on the Top Duct 3 Unit, plastic dust may be produced. Therefore, confirm that there is no dust on the Top Duct 3 Unit.
  • Page 51 REMOVAL OF THE TUNER C.B.A., THE DTV TUNER UNIT, THE MAIN C.B.A., THE DIGITAL TUNER POWER C.B.A., THE REAR JACK C.B.A., THE AUDIO AMP C.B.A., THE POWER C.B.A. FROM THE TV/TUNER UNIT CAUTION: 1. Be sure to make a note of the CURRENT LAMP value (value A) in Service Mode (1/3): LAMP OPERATION TIME is stored in EEPROM on the Main C.B.A.
  • Page 52 4) Release the AC Cord from the slot of the Rear Jack Holder. 5) Remove the Rear Jack Holder by removing the 4 Screws (402). 6) Pull off the DTV Tuner Unit by removing the 2 Screws (402). DTV Tuner Unit Slide Slot AC Cord...
  • Page 53 3. 1) Disconnect Connector P3401 and release from the clamper. 2) Remove the Tuner P.C.B. Frame by removing the 6 Screws (402). Tuner P.C.B. Frame Clamper P3401 Fig. D3-2...
  • Page 54 4. Remove the Main C.B.A. by removing the 6 Screws (402) and disconnecting Connector P3403 and P3404. Note: Be careful not to bend the plates of the Main C.B.A. Main C.B.A. P3404 P3403 Fig. D3-3...
  • Page 55 5. 1) Disconnect Connector P1201, and remove the Digital Tuner Power C.B.A. by removing the 4 Screws (402). 2) Disconnect Connector P3603 and release from the clamper. 3) Remove the Rear Jack C.B.A. and the GND Plate C from the slots by removing the 2 Screws (402). P1201 Digital Tuner Power C.B.A.
  • Page 56 6. 1) Disconnect Connector P4501 and release from the clamper. 2) Remove the Audio Amp C.B.A. by removing the 4 Screws (402). Note: The Audio Amp C.B.A. can be removed from the TV/Tuner Unit at any time. Audio Amp C.B.A. Clamper P4501 Fig.
  • Page 57 7. 1) Disconnect Connector P1006 and release from the clamper. 2) Remove the Main P.C.B. Frame by removing the 6 Screws (402), and remove the Fan 4 by removing the 2 Screws (435). 3) Remove the Power C.B.A. by removing the 5 Screws (411). 4) Disconnect Connector P804 (AC Cord) and release from the clamper.
  • Page 58 Optical Cover Front Cover Unit Fig. D4-1 2. (PT-43LCX64/PT-50LCX64) Remove the Rear Cover by removing the 18 Screws (401), refer to Fig. D1-1-1. (PT-60LCX64) Remove the Rear Cover by removing the 20 Screws (401, 464), refer to Fig. D1-1-2.
  • Page 59 3. 1) Disconnect Connector P4503 (speaker cables) and release it from the clamper. 2) Remove the 2 Screws (401) from rear side, and remove the Display. Display P4503 Clamper Fig. D4-3...
  • Page 60 4. 1) Remove the Speaker-L and the Speaker-R by removing the 6 Screws (477, 478) and disconnect the connectors P4553. 2) (PT-43LCX64/PT-50LCX64) Remove the Screen Unit by removing the 16 Screws (401). Screen Unit Speaker L P4553 Speaker R P4553...
  • Page 61 2) (PT-60LCX64) Remove the Screen Unit by removing the 26 Screws (401). Screen Unit Speaker L P4553 Speaker R P4553 Fig. D4-4-2...
  • Page 62 5. (PT-43LCX64) Remove the 2 Screen Plate H and 2 Screen Plate V by removing 26 Screws (401), and remove the Fresnel Lens and the Lenticular Screen. (PT-50LCX64) Remove the 2 Screen Plate H and 2 Screen Plate V by removing 30 Screws (401), and remove the Fresnel Lens and the Lenticular Screen.
  • Page 63 (PT-50LCX64) Reassembly Note for 4 Spacers: Wind the string for screen spacer on the Fresnel Lens a shown. Fresnel Lens string for screen spacer Serial No. Label string for screen spacer string for screen spacer hook hook knot hook hook...
  • Page 64 (PT-60LCX64) Remove the 2 Screen Plate H and 2 Screen Plate V by removing 40 Screws (465), and remove the Fresnel Lens and the Lenticular Screen. Screen Unit Lenticular Screen Fresnel Screen Spacer Plate H Lens Escutcheon Screen Plate V Spacer Spacer Serial No.
  • Page 65 (PT-60LCX64) Reassembly Note for 4 Spacers: Place the 4 Spacers on the Lenticular Screen as shown. Approx. 1330.5 mm ~ 1332.0 mm 11.0 mm ~ 12.5 mm 11.0 mm ~ 12.5 mm 18.5 mm ± 2.0 mm 18.5 mm ± 2.0 mm Spacer Spacer Lenticular...
  • Page 66 REMOVAL OF THE MIRROR FROM THE BACK COVER (PT-43LCX64/PT-50LCX64) 1. Remove the Screen Unit. Refer to Steps 1~4 in "REMOVAL OF THE SCREEN UNIT AND THE SPEAKER FROM THE DISPLAY." 2. 1) Remove the 2 Mirror Holder H and the 2 Mirror Holder V Unit by removing the 12 Screws (401).
  • Page 67 REMOVAL OF THE MIRROR FROM THE BACK COVER (PT-60LCX64) 1. Remove the Screen Unit. Refer to Steps 1~4 in "REMOVAL OF THE SCREEN UNIT AND THE SPEAKER FROM THE DISPLAY." 2. 1) Remove the 3 Mirror Holder H and the 2 Mirror Holder V Unit by removing the 15 Screws (401). 2) Remove the Mirror from the top by releasing the Back Cover slots.
  • Page 68 REMOVAL OF THE FRONT JACK C.B.A. AND THE OPERATION C.B.A. FROM THE CABINET 1. 1) Remove the Rear Cover by removing the 18 Screws or 20 Screws (PT-60LC14). 2) Disconnect Connector P6305 and release it from the clamper. 2. 1) Remove the Front Cover Unit from the 8 latches. 2) Remove the Screw (454).
  • Page 69 REMOVAL OF THE COVER SWITCH C.B.A. FROM THE CABINET 1. Remove the Projection Unit. Refer to Steps 1~2 in "REMOVAL OF THE PROJECTION UNIT FROM THE CABINET." 2. 1) Remove the Front Cover Unit from the 8 latches. 2) Remove the Optical Cover by removing the 2 Screws (454). 3) Remove the Screw (401) from the front side.
  • Page 70 REMOVAL OF THE BALLAST HOLD PLATE, THE BALLAST SHIELD CASE TOP, THE BALLAST SHIELD CASE BOTTOM 1. Remove the Ballast C.B.A. Refer to Steps 1~7 in "REMOVAL OF THE BALLAST C.B.A. AND THE TV/TUNER UNIT FROM THE CABINET." 2. Remove the Ballast Hold Plate by removing the 2 Screws (452). 3.
  • Page 71 WHEN REINSTALLING THE PROJECTION 4. 1) Then, press and hold the VOLUME DOWN button on the unit and the SWAP key on the remote for more than UNIT INTO THE UNIT AT THE USER’S 1 second. The unit will go into the Factory Adjust Mode. LOCATION: (FACTORY ADJUST menu will appear.) The following ADJUSTMENT of the Projection Unit must be...
  • Page 72 a. Mechanical Picture Position Adjustment (Tilt) b. Focus Adjustment 1) Loosen the 4 Screws on the Projection Unit. 1) Confirm that each of the pixels in the nine portions is clearly visible. Projection Lens Screw Screw O P T H P O S I O P T V P O S I Screw...
  • Page 73 c. Electrical Picture Position Adjustment 1) Adjust OPT HPOSI so that "C" is symmetrical to "D." by pressing the VOLUME UP/DOWN key on the remote to change the value. 2) Press the CH UP/DOWN key on the remote to return to the OTHER menu.
  • Page 74 MAIN PARTS LOCATION <Front View> Network C.B.A. TEMP LED LAMP LED Lamp Cover Cover Switch C.B.A. Network C.B.A. Optical Cover POWER LED Front Cover Unit Operation C.B.A. <Rear View> Projection Unit Thermal Fuse Unit Thermistor 2 C.B.A. Fan 3 Thermistor 1 C.B.A. Air Filter Fan Case Unit (Fan 1)
  • Page 75 ERROR INDICATION INFORMATION Each LED indication facilitates finding the cause of the error. When an error is detected, the Lamp comes off and the LED on the front will flash. POWER LED TV/VIDEO LAMP LED TEMP LED (Note 2) (Note 3) Error No.
  • Page 76 How to solve the problem indicated by the Error Indication of LED (All symptom is that Lamp turns off or Lamp does not light up) Note: Before performing the troubleshooting, confirm that all connector cables in the unit are connected to connectors correctly. Error No.
  • Page 77 No picture or abnormal picture ABNORMAL PICTURE: No Color Picture (Black and White picture) Abnormal Color Picture No Synchronization Picture Dark Picture Check that there is no picture or abnormal picture on the screen from all input terminals. (All input are NG.) Does the OSD appear on the Replace the Projection Unit.
  • Page 78 No sound from built-in both L-CH and R-CH Speakers (All input are NG.) Check that there is an audio signal to the Audio Out Replace the Rear Jack C.B.A. Terminal from all input terminals. (Only Audio1, 2, Component 1, 2, OR 3 input is NG.) Replace the Rear Jack C.B.A.
  • Page 79 HDMI DATA DIGITAL TUNER POWER C.B.A. V-SYNC INTERFACE POWER P6701 P6305 H-SYNC DRIVE P807, I2C SERIAL DATA/CLOCK P1201 P1203 P808 HDMI IN TMDS DATA/CLOCK POWER SUPPLY IC5805 HDMI AUDIO(L/R) OPERATION BUTTON REMOTE CIRCUIT (KEY MATRIX) SENSOR OVERALL BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 80 <FROM IC2304 (26)> TP1011 D803-806 CONTROL LCD ON (H) TP803 TP810 FULL-WAVE <FROM IC2304 (51)> RETIFIER IC2902 (FAN1 DRIVE) (7.0V) PT-43LCX64, PT-50LCX64 TP2907 TP2911 FAN 1 (7.75V) PT-60LCX64 REG. P2902-1 P2902-2 IC2905 DIGITAL TUNER POWER C.B.A. P2902-3 (OP AMP) T1201...
  • Page 81 SUB VIDEO JK3501 LOGIC S-VIDEO IN1 VIDEO IN1 S-VIDEO IN2 FROM I2C SERIAL DATA LOGIC SYSTEM CONTROL I2C SERIAL CLOCK BLOCK DIAGRAM VIDEO IN2 JK3502 Q3501 Q3502 S-VIDEO Q3503 SW +9V VIDEO OUT VIDEO SIGNAL PATH I BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 82 B DATA(8BIT) 12-19 CONVERTER TP5503 A/D H-SYNC A/D CLOCK H-SYNC JK5501 V-SYNC TP5504 TP5505 IC5502 (SYNC SEPARATION) RGB-IN 1 H-SYNC V-SYNC Q5510 SYNC SEPARATION IC5301 (LEVEL SHIFTER) 5V --> 3.3V RGB1(H)RGB2(L) <FROM IC6003(22)> VIDEO SIGNAL PATH II BLOCK DIAGRAM (1/2) PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 83 IC5304 +3.3V 17,42,61,83,86,108, 156,174,207 +2.5V A/D H-SYNC +3.3V REG. A/D CLOCK V-SYNC IC5607 (INVERTER) IC5303 (64M MEMORY) P5601-1 OSD-YS P5601-3 OSD-YM 3-8,11-15,18-22,25-30, 32-35,37,39-41,43,44 MEMORY P5601-11 OSD-H P5601-13 OSD-V 1,3,9,15,29,35,41, 43,49,55,75,81 +3.3V +3.3V VIDEO SIGNAL PATH II BLOCK DIAGRAM (2/2) PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 84 VIDEO SIGNAL PATH III BLOCK DIAGRAM (Models: PT-43LCX64 / PT-50LCX65) VIDEO SIGNAL(MAIN/SUB) LCD DRIVE C.B.A. LCD(R) IC2503 (LVDS RECEIVER) IC2505 (SIGNAL PROCESS FOR LCD PANEL) +15.5V P2001-1 P2001-2 P2001-3 TP2001 P2001-4 IC2001 (SAMPLING HOLD) (IC2001 PIN52 LINE) TP2004 P2001-5 P2001-6...
  • Page 85 VIDEO SIGNAL PATH III BLOCK DIAGRAM (Model: PT-60LCX64) VIDEO SIGNAL(MAIN/SUB) LCD DRIVE C.B.A. LCD(R) +15.5V IC2503 (LVDS RECEIVER) IC2505 (SIGNAL PROCESS FOR LCD PANEL) P2001-36 P2001-35 P2001-34 TP2001 P2001-33 IC2001 (SAMPLING HOLD) (IC2001 PIN52 LINE) TP2004 P2001-32 TP2007 P2001-31 R DATA (8BIT) R DATA (10BIT) INVERTER ON/OFF...
  • Page 86 CARD RESET(L) <FROM IC6003(43)> LCS2(L) CARD SERIAL DATA 0 CARD SERIAL DATA 1 CARD SERIAL DATA 1 TO/FROM CARD SERIAL CLOCK CARD SERIAL CLOCK SYSTEM CONTROL CARD CS(L) CARD CS(L) BLOCK DIAGRAM CARD READY(L) CARD READY(L) SD/PC CARD SIGNAL PROCESS BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 87 AUDIO IN2 (L) IC3502 (OP AMP) JK3603 JK3502 COMPONENT AUDIO OUT (R) AUDIO IN3 (R) COMPONENT AUDIO OUT (L) AUDIO IN3 (L) Q3505 Q3506 -VEE MUTE-ON MUTE-ON DRIVE Q3504 LINE OUT MUTE(H) <FROM IC6003(9)> AUDIO SIGNAL PATH BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 88 P6305-4 SCAN 1 SENSOR P6701-5 P6305-5 SCAN 2 KEY MATRIX P6701-1 P6305-1 KEY DATA 0 TEMPERATURE DATA 1 P2304-2 P2821-2 P6701-2 P6305-2 KEY DATA 1 TEMPERATURE DATA 2 (OPERATION BUTTON) P2304-1 P2821-1 (NEAR THE LAMP) SYSTEM CONTROL BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 89 LIGHT IN UV CUT FILTER POLARIZER RELAY LENS 2 ND FILTER GREEN UNIT FIELD LENS GREEN FULL MIRROR DICHROIC BLUE DICHROIC (PT-60LCX64) RELAY LENS 1 MIRROR MIRROR GREEN LAMP INTEGRATOR P/S CONVERTER (PT-43/50LCX64) RELAY LENS 1 OPTICAL BLOCK DIAGRAM PT-43LCX64/PT-50LCX64/PT-60LCX64...
  • Page 90 11 EXPLODED VIEWS TOP PREVIOUS NEXT 11.1 MAIN PARTS SECTION 11.2 FRONT AND BASE SECTION 11.3 DISPLAY SECTION 11.4 SCREEN SECTION 11.5 PROJECTION SECTION 11.6 TV AND TUNER SECTION 11.7 PACKING PARTS AND ACCESSORIES SECTION TOP PREVIOUS NEXT...
  • Page 98 12.1.1 General Notes TOP PREVIOUS NEXT 1. Use only original replacement parts: To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list. IMPORTANT SAFETY NOTICE Components identified by the sign have special characteristics important for safety.
  • Page 99 12.1.2 Main Parts Replacement Notes TOP PREVIOUS NEXT 1. Section No. of parts shown in Exploded Views are indicated in the Remarks column. 2. Abbreviation RTL: Retention Time Limited This indicates that the retention time is limited for this item. After the discontinuation of this item in production, it will no longer be available.
  • Page 100 12.1.3 Optional Accessory Replacement Notes TOP PREVIOUS NEXT 1. When servicing TV Stand (TY-43LC14C/TY-50LC14C/TY-60LC14C), refer to the Service Manual for Model No. PT-43LC14/PT-50LC14/PT-60LC14, Order No. MKE0406850C1. TOP PREVIOUS NEXT...
  • Page 101 12.1.4 Electrical Replacement Notes TOP PREVIOUS NEXT 1. Unless otherwise specified; All resistors are in Ω, K = 1,000 Ω, M = 1,000 kΩ. 2. Abbreviation RTL: ¡ Retention Time Limited This indicates that the retention time is limited for this item. After the discontinuation of this item in production, it will no longer be available.
  • Page 102 not try to adjust them. The replacement parts for them are available as a complete assembly unit only. TOP PREVIOUS NEXT...
  • Page 103 12.2 MECHANICAL REPLACEMENT PARTS LIST TOP PREVIOUS NEXT Definition of Parts supplier: Parts with mark "MKE" in the Remarks column are supplied from MKE. Parts without mark in the Remarks column are supplied from MKA. MECHANICAL REPLACEMENT PARTS Ref. No. Part No.
  • Page 104 SCREEN PLATE V UNIT,STEEL ( A ) LSXA0549 SCREEN PLATE V UNIT,STEEL ( B ) LSXA0542 SCREEN PLATE V UNIT,STEEL ( C ) TBM2AA0071-1 PANASONIC BADGE LSGV0085 BACK COVER ( A ) LSGV0056 BACK COVER ( B ) LSGV0091 BACK COVER ( C )
  • Page 105 LSJA0474 CONENCTOR CABLE W/PLUG ( B ) LSJA0475 CONNECTOR CABLE W/PLUG ( C ) LSMF0291 SPACER LSMF0292 SPACER TMM77409 PURSE LOCK CLAMPER LSMA0755 TNR PCB FRAME LSJA0456-FE AC CORD W/PLUG LSJH0068 REAR JACK HOLDER LSSC0672 EARTH PLATE C LSMP0440 PCB FRAME LSMA0693 PCB FRAME PLATE LEFT,STEEL LSMA0694...
  • Page 106 LSPN0430 FRONT CUSHION ( B ) LSJA0464 THERMAL FUSE UNIT LSMP0420 SENSOR HOLDER 5 MKE L6FAKCDH0007 FAN LSMF0269 TOP DUCT 3 SPONGE 1 LSMF0270 TOP DUCT 3 SPONGE 2 LSMF0271 TOP DUCT 3 SPONGE 3 LSMF0272 TOP DUCT 3 SPONGE 4 XTV4+16A TAPPING SCREW,STEEL 1,2,3...
  • Page 107 Ref. No.2 Part No. Part Name & Description Remarks TY-LA1000 LAMP UNIT NOTE NOTE: The Lamp Unit (TY-LA1000) is not supplied as a replacement part. It is sold separately. To purchase a replacement, call the Panasonic accessory department. TOP PREVIOUS NEXT...
  • Page 108 12.4 ELECTRICAL REPLACEMENT PARTS LIST TOP PREVIOUS NEXT Definition of Parts supplier: Parts with mark "MKE" in the Remarks column are supplied from MKE. Parts without mark in the Remarks column are supplied from MKA. PRINTED CIRCUIT BOARD ASSEMBLY Ref. No. Part No.
  • Page 109 12.4.1 FRONT JACK C.B.A. TOP PREVIOUS NEXT DIODES Ref. No. Part No. Part Name & Description Remarks D3901 B0BD6R200002 DIODE ZENER 6.2V RESISTORS Ref. No. Part No. Part Name & Description Remarks R3901 ERJ6ENF75R0V MGF CHIP 1/10W 75 R3902 ERJ6ENF75R0V MGF CHIP 1/10W 75 R3903 ERJ6ENF75R0V MGF CHIP 1/10W 75 R3904...
  • Page 110 TOP PREVIOUS NEXT...
  • Page 111 12.4.2 AUDIO AMP C.B.A. TOP PREVIOUS NEXT INTEGRATED CIRCUITS Ref. No. Part No. Part Name & Description Remarks IC4501 C1AA00000660 IC, LINEAR IC4503 C0CAAKE00013 IC, LINEAR TRANSISTORS Ref. No. Part No. Part Name & Description Remarks Q4501 2SD0601AHL TRANSISTOR SI NPN CHIP Q4501 B1ABCF000011 TRANSISTOR SI NPN CHIP Q4501...
  • Page 112 R4544 ERJ6GEY0R00V MGF CHIP 1/10W 0 R4545 ERJ6GEY0R00V MGF CHIP 1/10W 0 R4546 ERJ6GEY0R00V MGF CHIP 1/10W 0 CAPACITORS Ref. No. Part No. Part Name & Description Remarks C4501 ECA1VM102B ELECTROLYTIC 35V 1000UF C4502 ECA1VM102B ELECTROLYTIC 35V 1000UF C4503 ECEA1CKA100 ELECTROLYTIC 16V 10UF C4504 ECQB1H104KF...
  • Page 113 12.4.4 NETWORK C.B.A. TOP PREVIOUS NEXT CAPACITORS Ref. No. Part No. Part Name & Description Remarks C4551 F2J1J3R3A003 ELECTROLYTIC 63V 3.3UF PIN HEADERS Ref. No. Part No. Part Name & Description Remarks P4551 K1KA02A00229 CONNECTOR 2P P4552 K1KA02A00188 CONNECTOR 2P P4553 K1KA02A00008 CONNECTOR 2P TOP PREVIOUS NEXT...
  • Page 114 12.4.3 OPERATION C.B.A. TOP PREVIOUS NEXT TRANSISTORS Ref. No. Part No. Part Name & Description Remarks Q6701 2SB1218A0L TRANSISTOR SI PNP CHIP Q6701 B1ADCF000063 TRANSISTOR SI PNP CHIP Q6701 B1ADCF000075 TRANSISTOR SI PNP CHIP Q6702 2SB1218A0L TRANSISTOR SI PNP CHIP Q6702 B1ADCF000063 TRANSISTOR SI PNP CHIP Q6702...
  • Page 115 12.4.5 COVER SWITCH C.B.A. TOP PREVIOUS NEXT PIN HEADERS Ref. No. Part No. Part Name & Description Remarks P2912 LSJA0476 CONNECTOR CABLE W/PLUG, SWITCHES Ref. No. Part No. Part Name & Description Remarks SW2911 K0L1BA000070 SWITCH PUSH TOP PREVIOUS NEXT...
  • Page 116 12.4.6 THERMISTOR 1 C.B.A. TOP PREVIOUS NEXT RESISTORS Ref. No. Part No. Part Name & Description Remarks R2811 D4CA35030002 THERMISTER PIN HEADERS Ref. No. Part No. Part Name & Description Remarks P2811 K1KA02A00229 CONNECTOR 2P TOP PREVIOUS NEXT...
  • Page 117 12.4.7 THERMISTOR 2 C.B.A. TOP PREVIOUS NEXT RESISTORS Ref. No. Part No. Part Name & Description Remarks R2821 D4CE31330001 THERMISTOR PIN HEADERS Ref. No. Part No. Part Name & Description Remarks P2821 K1KA02A00100 CONNECTOR 2P MISCELLANEOUS Ref. No. Part No. Part Name &...

This manual is also suitable for:

Pt-50lcx64Pt-60lcx64
