iCN 600
series
Smart
2005
TM
with

User Manual

iCN 630
iCN 635
iCN 650
English - United States / Canada

Advertisement

Table of Contents
loading

Related Manuals for Navman iCN630

Summary of Contents for Navman iCN630

  • Page 1: User Manual

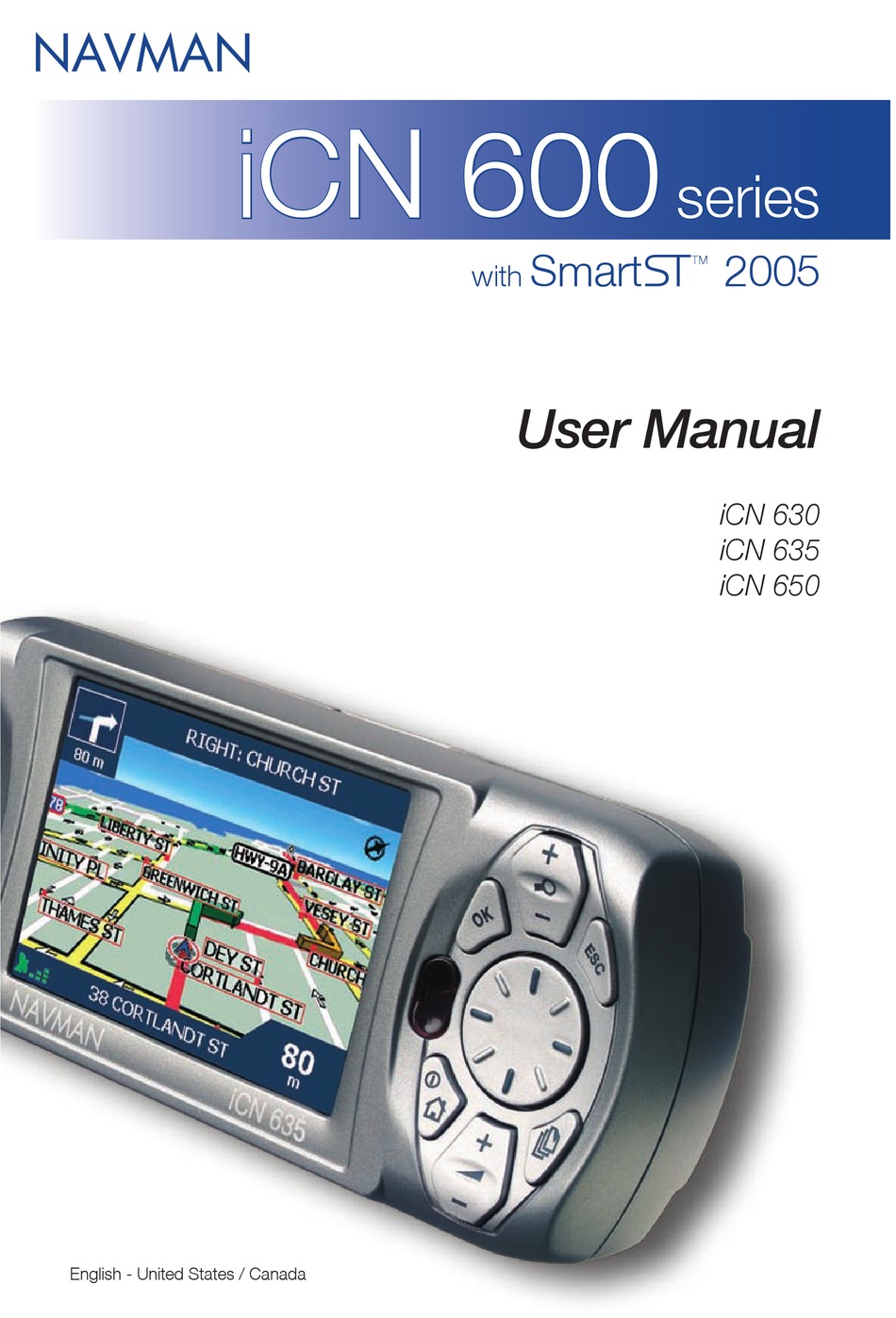

    iCN 600 series Smart 2005 with User Manual iCN 630 iCN 635 iCN 650 English - United States / Canada...

  • Page 3: Table Of Contents

    3. Positioning the iCN in a Vehicle ... 10 4. Getting Started..13 5. Map Storage ... 15 6. GPS Status ... 16 7. Setting your Destination ... 17 Case Study - By Address ... 19 Case Study - By POI ... 23 8.
  • Page 4 iCN 600 series | User Manual...

  • Page 5: Box Contents

    Thank you for purchasing this Navman iCN. We hope you enjoy your new GPS transferable navigation system. This User Manual will help you Drive-Away™ with your iCN, straight out of the box. Navman welcomes your feedback. To contact us or visit our website, see Support Information on page 79.
  • Page 6 iCN 600 series | User Manual...

  • Page 7: Introduction

    Satellites orbit the earth at around 12,000 miles. While a GPS receiver can detect signals from up to 12 satellites at any time, only three signals are needed to provide a position or “GPS fix” (latitude and longitude) for vehicle navigation systems.

  • Page 8: Icn Features

    iCN 600 series | User Manual 2. iCN Features We recommend that you familiarize yourself with the iCN’s basic operations, such as using the 8-way toggle and Volume button. Some buttons have two functions, and specific features vary between iCN models. Front Components Component Screen...

  • Page 9: Back Components

    Memory card may be inserted into slot with label facing the front of the iCN Receives signals from GPS satellites when lifted out to the horizontal position Connection socket for GPS MCX External Anntenna (not included) Connection socket for AC Power-Pack or In-Vehicle Power Adaptor...
  • Page 12 Then push the iCN into the clip. 2. Open the GPS antenna outwards, so it has a clear view of the sky. 3. Plug the power-cable into the socket on the left side of the iCN and the other end into...

  • Page 13: Getting Started

    1. Plug the power adapter into the socket on the left of the iCN and the other end into the 12 V vehicle power-socket. 2. Gently pull the bottom of the GPS receiver away from the iCN. The receiver will lift out to a horizontal position to allow it to obtain a GPS fix. 3. Press for one second.

  • Page 14: Main Menu Screen

    • The Route Information option is only available when a route has been calculated. See page 37 for more information. To Turn iCN Off 1. Gently push the GPS receiver back towards the iCN. The receiver will click into place. 2. Complete one of the following: • iCN 650: Press select Yes, then press OK.

  • Page 15: Map Storage

    To navigate in an area outside of the pre-activated map, you must first purchase a Map Product Key from your Navman supplier. Install Smart Desktop, then use it to activate your Map Product Key and install the required map. For more information on installing maps, see page 61.

  • Page 16: Gps Status

    6. GPS Status Signals are transmitted by Global Positioning System (GPS) satellites orbiting the Earth. You can view your GPS status at any time from the 2D Map, 3D Map, Next Turn and Next 4 Turns screens. The GPS Strength Indicator will display green when there is a valid fix (2D or 3D), and between...

  • Page 17: Setting Your Destination

    7. Setting Your Destination For your safety, enter destination information before you start a journey. Do not operate the iCN while driving. Select a destination using the Destination, Keyboard and Preview screens, which used together form a destination wizard. This section describes how to use each of these screens and provides two case studies to help guide you through setting your destination.

  • Page 18: Preview Screen

    iCN 600 series | User Manual Figure 3. Number/Symbol Keyboard As you select each character, the first two results will display. Press • Use the 8-way toggle to move around the Keyboard screen. • To select a character or a search result, press OK. •...

  • Page 19: Case Study - By Address

    Case Study: Setting Your Destination by Address This case study will show you how to set your destination by selecting your country, then state, then town or city, then street, then house number. Step One: Open the Destination screen a. From the Main Menu, select Go To, then press OK. b.
  • Page 20 iCN 600 series | User Manual Step Three: Select the State of Destination If you only have the map of one state installed and selected, that state is selected for your destination by default and cannot be changed. Go to Step Four: Find the Town or City of Destination.
  • Page 21 Step Five: Find the Street of Destination a. From the Destination screen, select Find street, then press OK. The Keyboard screen will display. b. Use the Keyboard screen to find the street of your destination. For information on using the Keyboard screen, see pages 17-18. The Destination screen will display.
  • Page 22 iCN 600 series | User Manual b. Use the Keyboard screen to find the house number of your destination. For information on using the Keyboard screen, see pages 17-18. The Preview screen will display. c. Complete one of the following: •...

  • Page 23: Case Study - By Poi

    Case Study: Setting Your Destination by POI This case study will show you how to set your destination by selecting a Point of Interest (POI). A POI is a named site, feature, landmark or public venue which can be displayed as an icon on the map.
  • Page 24 iCN 600 series | User Manual Step Three: Select the State of Destination If you only have the map of one state installed and selected, that state is selected for your destination by default and cannot be changed. Go to Step Four: Select the Type of POI. a.
  • Page 25 c. Use the Keyboard screen to find the POI. For information on using the Keyboard screen, see pages 17-18. The Preview screen will display. d. Complete one of the following: • To calculate the route and open the 3D Map screen, select Go, then press OK. The 3D Map screen will display.

  • Page 26: Using The 2D Map Screen To Plan A Route

    iCN 600 series | User Manual 8. Using the 2D Map screen to Plan a Route You can plan a route directly from the 2D Map screen using the Pop-up menu. 1. From the Main Menu, select Map, then press OK. The 2D Map screen will display.

  • Page 27: Multi-Stop Trips

    9. Multi-stop Trips You can use the Multi-stop Trip screen to set multiple destination points for your trip. Your route will be calculated to go via each of these points in the specified order. Destination points can be added via the Multi-stop Trip screen or by selecting Show Details from the pop-up menu on the 2D Map screen, then Add to Trip.
  • Page 28 iCN 600 series | User Manual c. Select Address or POI, then press OK. The Destination screen will open. Note: You can also add destination points using Favorites, recent destinations and nearest Point of Interest. Step Two: Select the Country of Your Destination Point If you only have the map of one country installed and selected, that country is selected for your destination point by default and cannot be changed.
  • Page 29 Step Three: Select the State of Your Destination Point If you only have the map of one state installed and selected, that state is selected for your destination by default and cannot be changed. Go to Step Four: Find the Town or City of Destination.
  • Page 30 iCN 600 series | User Manual Step Five: Find the Street of Your Destination Point a. From the Destination screen, select Find street, then press OK. The Keyboard screen will display. b. Use the Keyboard screen to find the street of your destination point. For information on using the Keyboard screen, see pages 17-18.
  • Page 31 Step Six: Find the House Number of Your Destination Point a. From the Destination screen, select Enter house number, then press OK. The Keyboard screen will display. Note: If the Enter house number option is not displayed, house numbers are not available for your selected street.
  • Page 32 iCN 600 series | User Manual d. Complete one of the following: Note: Destination points added, updated or deleted after a multi-stop trip has commenced will not affect the current route. If you want to ... add another destination point Note: Destination points added after a multi-stop trip has commenced will not be included in the current route.

  • Page 33: Skipping A Destination Point

    Skipping a Destination Point You can modify a multi-stop trip at any time from the Multi-stop Trip screen; however, if you have already commenced a trip, changes will not affect the current route: Main Menu  Multi-stop Trip To skip a destination point during a multi-stop trip, complete the following: 1.

  • Page 34: Viewing Your Route

    Once a route has been calculated, you can view it in several ways. Press 2D Map Screen The 2D Map screen is always oriented North and shows your current position (if a GPS fix is active) and surrounding street names. If a route has been calculated, the route and turns are highlighted.

  • Page 35: D Map Screen

    • To display a larger area in less detail, press • To display the Go To Pop-up summary, press OK. Direction of the next turn GPS strength indicator Your current location iCN 600 series | User Manual to cycle through the screens.

  • Page 36: Next Turn Screen

    The next instruction Direction of the next turn Distance to the next turn GPS strength indicator. Next 4 Turns Screen The Next 4 Turns screen displays the next four turns of your route, the turn direction, the street name and the distance to the turn. A route must have been calculated for this screen to be able to display.

  • Page 37: Route Information Screen

    Route Information Screen The Route Information screen provides information about your current route and lets you skip a trip destination point or cancel a route. The screen is only available from the Main Menu when you are navigating a route: Main Menu ...

  • Page 38: Cancel Route

    iCN 600 series | User Manual Summary Select Summary, then press OK to display the Route Summary screen containing your From and To addresses, Estimated Time to arrival and the Distance remaining to your destination. If you are navigating a multiple destination trip, the information displayed will relate to your next destination point.

  • Page 39: The 2D Map Screen Pop-Up Menu

    11. The 2D Map Screen Pop-up Menu The Pop-up menu allows you to access navigational functions from the 2D Map screen. To display the Pop-up menu complete the following: 1. From the Main Menu, select Map, then press OK. The 2D Map screen will display. 2.

  • Page 40: Avoiding An Area

    iCN 600 series | User Manual 12. Avoiding an Area You can calculate a route that avoids a specified area on the map. Up to ten Avoid Areas can be added. Avoid Areas are displayed as shaded areas. If no alternative route around an Avoid Area exists, you will be routed through an Avoid Area.

  • Page 41: Route Demonstrator

    The Main Menu screen will display. Step Two: Select Departure Point If you have a GPS fix, you do not need to select a departure point unless you want the demonstrated route to start elsewhere. 1. From the Main Menu screen, select Map.
  • Page 42 iCN 600 series | User Manual To Disable Route Demonstrator 1. Press to display the Main Menu screen. 2. From the Main Menu screen, select Preferences, then press OK. 3. From the Preferences screen, select Routing, then press OK. The Routing screen will display. 4.

  • Page 43: Favorites And My Home

    14. Favorites and My Home You can save up to 200 destinations as Favorites, one of which can be saved as My Home. My Home can be any designated Favorite, but we recommend that it is your home or other common destination. You can save a Favorite from the Preview screen after searching for an address, or from the Pop-up Menu on the 2D Map screen.
  • Page 44 iCN 600 series | User Manual 4. Complete one of the following: • To save as a favorite, select Save as favorite, then press OK. The Favorite is saved. The Go To screen will display. • To save as My Home, select Save as My Home, then press OK. The Favorite is saved as My Home.
  • Page 45 6. To change the name of the Favorite, select the Name box, then press OK. The Enter text screen will display. • Use the 8-way toggle to move around the Enter text screen. • To select a character, press OK. •...

  • Page 46: Deleting A Favorite

    iCN 600 series | User Manual 4. Select the Name box, then press OK. The Enter text screen will display. • Use the 8-way toggle to move around the Enter text screen. • To select a character, press OK. • To delete a character, press ESC; hold ESC to delete the line. •...

  • Page 47: Navigating To A Favorite

    4. Select Delete, then press OK. A Warning dialogue box will display asking for confirmation to delete the Favorite. 5. Select Yes, then press OK. The Favorite is deleted. The Favorite screen will display. Navigating to a Favorite 1. From the Main Menu, select Go To, then press OK. 2.

  • Page 48: Preferences

    iCN 600 series | User Manual 15. Preferences You can modify the following preferences to suit your needs. Screen Brightness 1. Press and hold the Zoom/Brightness button 2. To increase screen brightness, press + . To decrease screen brightness, press -. The Brightness scale comprises ten rectangular boxes in a row.
  • Page 49 Ferries check box to display a warning message at the start of your trip, if your route includes ferries. select the Demonstrate Route check box. This allows you to plan and view a route without a GPS fix. See page 40 for more information.
  • Page 50 Route Demonstrator to play repeatedly enable Smart Demonstration to be played enable Track Recording (only to be used if required by Navman Customer Support) 4. Select Save, then press OK. The Main Menu screen will display. Language Preferences 1.
  • Page 51 Map Preferences — Display Settings 1. From the Main Menu, select Preferences, then press OK. 2. From the Preferences screen, select Maps, then press OK. 3. From the Maps screen, select the Display option. The Display screen will display. 4. Complete the following: If you want to...
  • Page 52 iCN 600 series | User Manual Map Preferences — Internal Memory 1. From the Main Menu, select Preferences, then press OK. 2. From the Preferences screen, select Maps, then press OK. 3. From the Maps screen, select Internal memory. The Maps - Internal memory screen will display. 4.
  • Page 53 Map Preferences — Points of Interest (POIs) Points of Interest in a region are grouped into types. This function allows you to select the types you need. For example, you may be only interested in entertainment venues and want to disable other POI types such as schools.
  • Page 54 iCN 600 series | User Manual Alerts Preferences — Active POIs The Active POI settings allow you to set warning chimes and visual warnings for custom POIs that will activate within a chosen distance-radius of your location. For example, a warning chime will sound or a visual warning will display when an active POI is within 150 ft (46 m), but not necessarily on your route.
  • Page 55 8-way toggle. Select Save, then press OK. The Safety alerts screen will display. Note: The GPS signal alert will be active when a Speed alert is selected. select the Warn driver when operating check box, then press OK.
  • Page 56 iCN 600 series | User Manual My Data Preferences - My Points of Interest (My POI) Custom Points of Interest (POIs) are installed from the Smart Desktop POI Editor (see pages 66-68), and listed on the My POIs screen. 1. From the Main Menu, select Preferences. Press OK. 2.
  • Page 57 GPS Status Signals are transmitted by Global Positioning System (GPS) satellites orbiting the Earth. The Satellite Signal Strengths screen provides a visual representation of the information being received. Latitude and longitude are displayed, along with a north-pointing compass, the heading in degrees and ground speed.
  • Page 58 iCN 600 series | User Manual 4. Complete the following: If you want to... change the Position Format change the local time offset choose distance 5. Use the 8-way toggle to select Save, then press OK. The Main Menu screen will display. * Only available when UK English or US English language is selected.

  • Page 59: Smart Desktop

    Smart Desktop will open. You are now ready to install maps on your iCN. To Open Smart Desktop Once Smart Desktop has been installed, you can access it from the Start menu: Start  Programs  Navman  Smart Desktop 2005 for iCN600 series Map Display screen Map information...

  • Page 60: Updating Your Icn

    Uninstall: Smart Desktop 2005 for iCN600 Series. 17. Updating your iCN Updating your Version of Smart Update your iCN software to the most recent version of Smart by accessing the Navman website through Smart Desktop. To update your iCN, complete the following: 1.

  • Page 61: Installing Maps Using Smart Desktop

    • Enter your Map Product Key from the back of the CD box when prompted. • Your computer will connect to the Internet to activate your Map Product Key. • You will be prompted to enter or update your contact details, so that Navman can advise you when updates are released.
  • Page 62 Remove Maps from your iCN 1. Open Smart Desktop: Start  Programs  Navman  Smart Desktop 2005 for iCN600 series 2. Open the Maps on iCN section: iCN tab  Maps on iCN. 3. Click the map to be removed and select Remove from iCN from the pop-up menu.

  • Page 63: Continuous Continental Navigation

    The iCN 650 does not require a Basemap, as all detailed maps of United States and Canada are pre-installed. Install Basemap 1. Open Smart Desktop if it is not already open: Start  Programs  Navman  Smart Desktop 2005 for iCN600 series. 2. On the Map menu, click Basemaps. The Navman Basemap Installer window will open.
  • Page 64 The Main Menu screen will display. Remove Basemap 1. Open Smart Desktop if it is not already open: Start  Programs  Navman  Smart Desktop 2005 for iCN600 series. 2. On the Map menu, click Basemaps. The Navman Basemap Installer window will open.

  • Page 65: Smart Desktop Advanced Features

    20. Smart Desktop Advanced Features This section details advanced features of Smart Desktop. If you have not installed Smart Desktop, see page 59. To Find a City or Town 1. From the Map menu, click Find City. The Find City window will open. 2.
  • Page 66 iCN 600 series | User Manual Map Layers To conserve space on your iCN and memory card, you can choose map layers to install. The layers you can choose from are: • Points of Interest (POIs) • Bodies of water and parks •...
  • Page 67 2. Add a POI to the POI File. • On the POI Editor window Edit menu, click New. The POI Details window will open. • Type a description for the POI in the Description box. • On the Degrees, Minutes, Seconds tab, type or select the degree, minute and second of the POI latitude in the Latitude boxes.
  • Page 68 iCN 600 series | User Manual 3. Modify the POI settings as required: If you want to... activate the POI enable a visual warning when the POI is in close proximity enable a warning chime when the POI is in close proximity change the units used to measure distance for this POI select the distance from the POI...
  • Page 69 Backups You can save backups of all iCN Preferences and Favorites to your computer. To Back up your Preferences, Favorites and My Home 1. On the Smart Desktop File menu, click Backup. The Backup window will display. 2. Click New Backup. The New Backup window will display.

  • Page 70: Accessories

    The following accessories are also available for your iCN: MCX External Antenna Required for vehicles with heated windscreens or to boost GPS performance in weak signal areas and in areas with poor or limited visibility of the open sky. 12V/24V Installer Power Cable Powers your iCN through a permanently wired, concealed cable.

  • Page 71: Appendix: Street Types

    Appendix: Street Types Country Canada Street Type ABBEY ACRES ALLEE ALLEY AUTOROUTE AVENUE (English) AVENUE (French) BEACH BEND BOULEVARD (English) BOULEVARD (French) BY-PASS BYWAY CAMPUS CAPE CARRÉ CARREFOUR CENTER (English) CENTER (French) CERCLE CHASE CHEMIN CIRCLE CIRCUIT CLOSE COMMON CONCESSION CORNERS COTE COUR...
  • Page 72 iCN 600 series | User Manual Country Canada (continued) Street Type EXPRESSWAY EXTENSION FARM FIELD FOREST FREEWAY FRONT GARDENS GATE GLADE GLEN GREEN GROUNDS GROVE HARBOUR HEIGHTS HIGHLANDS HIGHWAY HILL HOLLOW ÎLE IMPASSE ISLAND KNOLL LANDING LANE LIMITS LINE LINK LOOKOUT LOOP MALL...
  • Page 73 Country Canada (continued) Street Type PARK PARKWAY PASSAGE PATH PATHWAY PINES PLACE (English) PLACE (French) PLATEAU PLAZA POINT PORT PRIVATE PROMENADE QUAY RANG RANGE RIDGE RISE ROAD ROND POINT ROUTE RUELLE SENTIER SQUARE STREET SUBDIVISION TERRACE TERASSE THICKET TOWERS TOWNLINE TRAIL TURNABOUT VALE...
  • Page 74 iCN 600 series | User Manual Country United States of America Street Type ALLEY ANNEX ARCADE AVENUE BAYOO BEACH BEND BLUFF BLUFFS BOTTOM BOULEVARD BRANCH BRIDGE BROOK BROOKS BURG BURGS BYPASS CAMP CANYON CAPE CAUSEWAY CENTER CENTERS CIRCLE CIRCLES CLIFF CLIFFS CLUB COMMON...
  • Page 75 Country United States of America (continued) Street Type ESTATE ESTATES EXPRESSWAY EXTENSION EXTENSIONS FALLS FERRY FIELD FIELDS FLATS FORD FORDS FOREST FORGE FORGES FORK FORKS FORT FREEWAY GARDEN GARDENS GATEWAY GLEN GLENS GREEN GREENS GROVE GROVES HARBOR HARBORS HAVEN HEIGHTS HIGHWAY HILL HILLS...
  • Page 76 iCN 600 series | User Manual Country United States of America (continued) Street Type LAKE LAKES LANDING LANE LIGHT LIGHTS LOAF LOCK LOCKS LODGE LOOP MANOR MANORS MARKET MEADOW MEADOWS MILL MILLS MISSION MOTORWAY MOUNT MOUNTAIN MOUNTAINS NECK ORCHARD OVAL OVERPASS PARK PARKS...
  • Page 77 Country United States of America (continued) Street Type RANCH RAPID RAPIDS REST RIDGE RIDGES RIVER ROAD ROADS ROUTE SHOAL SHOALS SHORE SHORES SKYWAY SPRING SPRINGS SPUR SPURS SQUARE SQUARES STATION STRAVENUE STREAM STREET STREETS SUMMIT TERRACE THROUGHWAY TRACE TRACK TRAFFICWAY TRAIL TUNNEL TURNPIKE...
  • Page 78 iCN 600 series | User Manual Country United States of America (continued) Street Type VILLE VISTA WALK WALKS WALL WAYS WELL WELLS Abbreviation WALK WALK WALL WAYS...

  • Page 79: Support Information

    New Zealand pcnsupport.nz@navman.com www.navman.com NAVMAN DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR VIOLATE THE LAW. Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 80 iCN 600 series | User Manual Notes...
  • Page 81 iCN 600 series | User Manual Notes...
  • Page 82 iCN 600 series | User Manual Notes...
  • Page 84 MN000329A...

This manual is also suitable for:

Icn600Icn635Icn650
