12. Hold the SBus card by the edges near the connector and firmly but gently press
the card down until the connector is fully seated.
To align the connector and socket, push the card toward the I/O+ board front panel.
Caution – Do not rock the card onto the socket; the plastic connector housing may
break.
13. Press each corner of the SBus card to ensure that it rests on the collar of the
standoff.
14. Press down on the tip insert of each standoff to lock the card in place.
15. Replace and tighten the back panel screws to secure the SBus card to the I/O+
board front panel.
16. Replace the I/O+ board using the procedures described in Section 4.6.3 "Installing
a Board."
4.6.5 Graphics (UPA) Cards
The Graphics+ I/O board contains a single connector that accommodates graphics
(UPA) cards (
FIGURE 4-15
4-18 Sun Enterprise 3500 System Reference Manual • August 2001
).

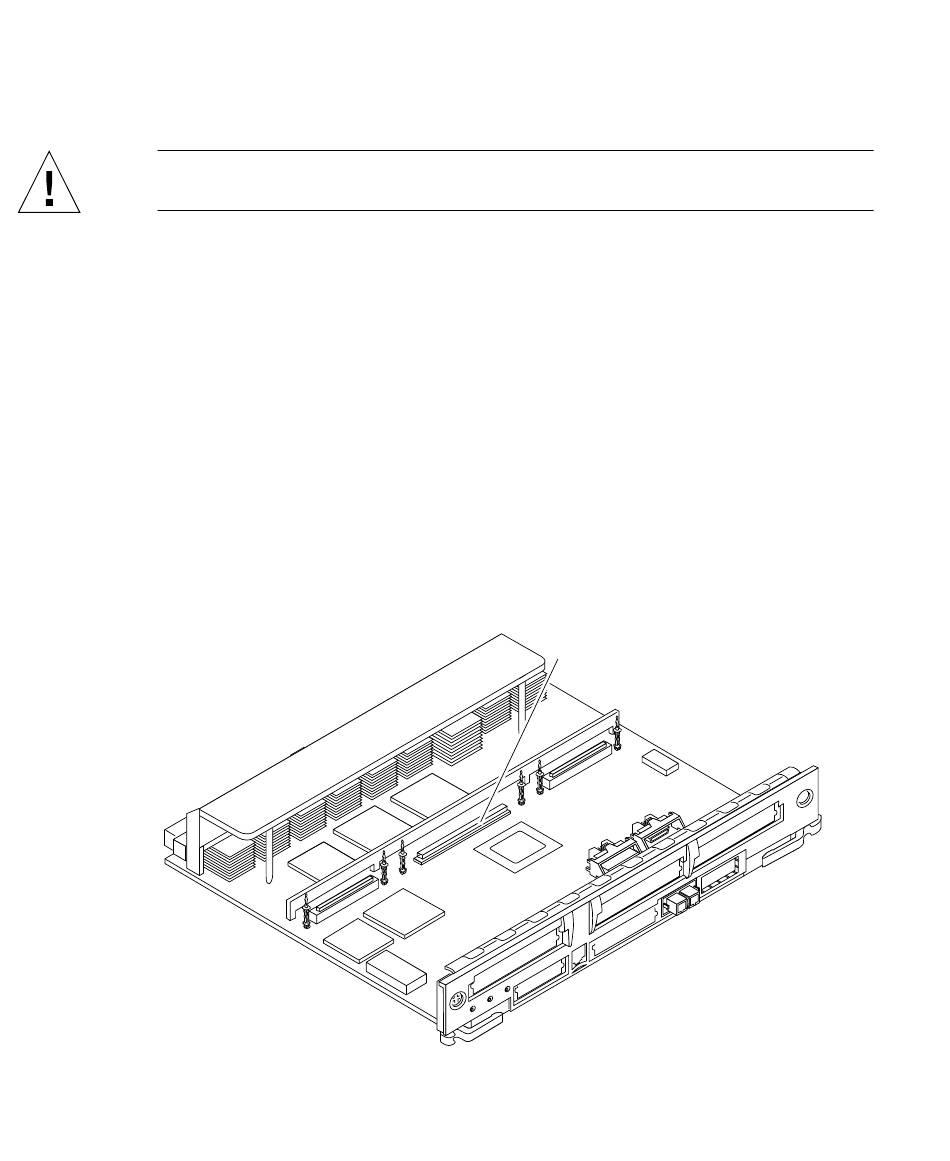

FIGURE 4-15
Graphics (UPA) Card Connector Location
UPA connector
