- Page 1 802.3bt PoE++ Injector POE-171A-60/POE-171A-95/POE-176-95 User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Product Features .................. 4 3. Product Specifications ................5 4. Product Outlook ................... 8 5. Hardware Installation ................12 5.1 Before Installation ................ 12 5.2 POE-171A series/POE-176-95 Installation ........12 6. Customer Support ................14... -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET POE-171A and POE-176-95 single-port multi-Gigabit 802.3bt PoE++ Injector series and their brief product descriptions are shown in the table below: Model LAN Port Speed PoE Standard PoE Budget POE-171A-60 10M/100M/1G/2.5G/5Gbps IEEE 802.3af/at/bt 60 watts POE-171A-95 10M/100M/1G/2.5G/5Gbps... -
Page 4: Product Features
2 RJ45 interfaces 1-port Data + Power output 1-port Data input 1 DC 52~56V input power socket (POE-171A-60/POE-171A-95) 1 PoE mode (Standard/Legacy) DIP switch (POE-171A-60/POE-171A-95) 1 DC 52~54V input power socket (POE-176-95) 1 PoE mode (802.3bt/Legacy) DIP switch (POE-176-95) ... -
Page 5: Product Specifications
3. Product Specifications Product POE-171A-60 POE-171A-95 POE-176-95 Hardware Specifications Input 1 x RJ45 STP Port Data In Output 1 x RJ45 STP Interface Port PoE (Data + Power) Out 1 x 52~54V DC 1 x 52~56V DC input socket Socket input socket Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. - Page 6 Power Pin Pair 1 End-span: 1/2 (-), 3/6 (+) Assignment Pair 2 Mid-span: 4/5 (+), 7/8 (-) POE-171A-60/POE-171A-95/POE-176-95: Standard: To provide power to the PD devices that follow the IEEE 802.3af/at/bt standard. Legacy: To provide power to the PD devices that do not fully follow the IEEE 802.3af/at/bt standard.
- Page 7 IEEE 802.3ab IEEE 802.3ab IEEE 802.3ab 1000BASE-T 1000BASE-T 1000BASE-T Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet IEEE 802.3bz IEEE 802.3bz IEEE 802.3bz 2.5G/5GBASE-T 2.5G/5GBASE-T 2.5G/5GBASE-T IEEE 802.3af IEEE 802.3af IEEE 802.3af Power over Power over Power over Standards Ethernet Ethernet Ethernet Compliance IEEE 802.3at IEEE 802.3at...
-
Page 8: Product Outlook

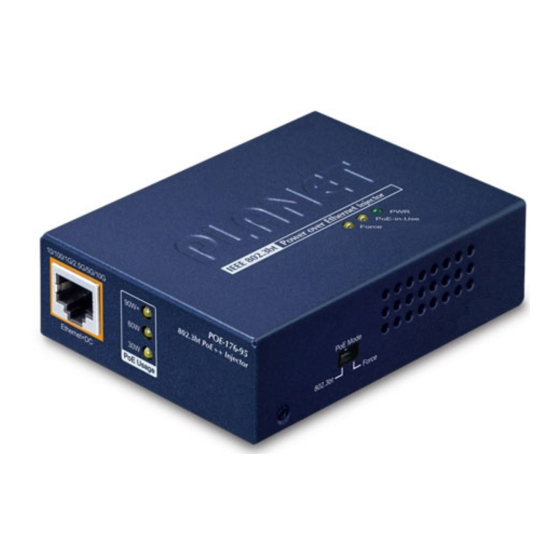

4. Product Outlook IEEE 802.3bt Power over Ethernet Injector PoE Mode Standard Legacy Figure 1: POE-171A-60 Outlook IEEE 802.3bt Power over Ethernet Injector PoE Mode Standard Legacy Figure 2: POE-171A-95 Outlook... - Page 9 IEEE 802.3bt Power over Ethernet Injector PoE Mode 802.3bt Legacy Figure 3: POE-176-95 Outlook LED Indicators: Color Function Lights to indicate the 802.3bt PoE++ injector has Green power. PoE-in-Use Amber Lights to indicate the device is providing PoE power. Lights to indicate the device is working in Legacy Legacy Amber mode.
- Page 10 Monitoring of power usage of POE-171A-60: Description 1. Off to indicate the PoE usage is less than 9W. 2. Blinks to indicate that the PoE usage is around 10W to 19W. 3. Lights to indicate the PoE usage is more than 20W. 1. Blinks to indicate that the PoE usage is around 30W to 39W.
- Page 11 The POE-171A series and POE-176-95 in the Force Mode will also provide a maximum power to the PD. TO PREVENT THE DEVICES FROM DAMAGE, please make sure the remote devices supports either the Legacy or Force Mode before turning the DIP switch to the Legacy Mode. 1.
-
Page 12: Hardware Installation
5. Hardware Installation The following section describes the hardware installation of the POE-171A series and POE-176-95. Before connecting any network device to it, please read this chapter carefully. 5.1 Before Installation Before your installation, recommended check your network environment. If there is any IEEE 802.3bt device that needs to be powered on and works normally, the POE-171A series/POE-176-95 provides you with a way out to supply power to this Ethernet device conveniently and easily. - Page 13 4. The POE-171A series/POE-176-95, adopting the IEEE 802.3af/at/bt tech- nology, can directly connect with any IEEE 802.3af/at/bt end-nodes, such as PTZ (pan, tilt & zoom) network cameras, PTZ speed dome cameras, color touch screen, Voice over IP (VoIP) telephones and multi-channel wireless LAN access points as the screen in Figure 3 is shown below.
-
