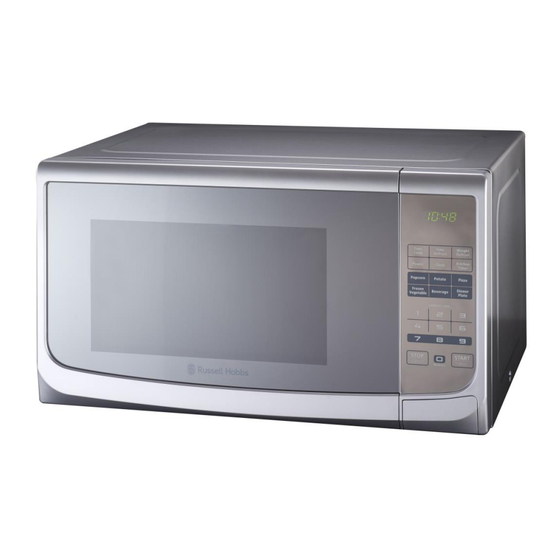

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHEM30LN RUSSELL HOBBS 30L ELECTRONIC MICROWAVE OVEN...
-
Page 2: Important Safeguards
Congratulations on purchasing our Russell Hobbs 30L Electronic Microwave Oven. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS 30L ELECTRONIC MICROWAVE OVEN •... - Page 3 Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid an electrical hazard. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent Do not operate the oven when empty.
- Page 4 (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
-
Page 5: Specifications
SPECIFICATIONS Model: RHEM30LN Rated Voltage: 230V~ 50Hz Rated Input Power (Microwave): 1400W Rated Output Power (Microwave): 900W Oven Capacity: Turntable Diameter: 288mm External Dimensions: 495 x 396 x 290mm Net Weight: Approx. 13 kg PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY •... -
Page 6: Radio Interference
This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials. -
Page 7: Utensils Guide
UTENSILS GUIDE • The ideal material for a microwave utensil is material which is transparent. This allows energy to pass through the container and heat the food. • A microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used. -
Page 8: Parts Diagram
PARTS DIAGRAM Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:... -
Page 9: Turntable Installation
TURNTABLE INSTALLATION Never place the glass tray upside down. The glass tray should not be restricted. Both glass tray and turntable ring should always be used during cooking. All food and containers of food should always be placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service centre. -
Page 10: Power Level
OPERATING INSTRUCTIONS POWER LEVEL 11 power levels are available. Level 10% 0% Power 100% 90% 50% 40% Display PL10 CLOCK SETTING Press "CLOCK ", "00:00" will display. Press the number keys and enter the current time. For example, time is 12:10 now, press "1, 2, 1, 0" in that order. -
Page 11: Speedy Cooking
b. Press "1", "5", "0", "0" in that order. c. Press "POWER" once, then press "5" to select 50% microwave power. d. Press "START/+30SEC." to start cooking. Note: 1) In the process of cooking, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically. -
Page 12: Dinner Plate
display in order. For example, press "POPCORN" once, "50" appears. Press "START/+30 SEC." to cook the popcorn, buzzer sounds once. When cooking has finished, buzzer will sound five times and then turn back to the waiting state.Important Information about Microwave Popcorn Feature: •... -
Page 13: Multi-Stage Cooking
Press "START/+30 SEC." to cook, buzzer sounds once. When cooking has finished, buzzer sounds five times and then turns back to waiting state. PROGRAMMABLE MEMORY FUNCTION Press "0/MEMORY" to choose memory 1-3 procedure. The LED will display 1, 2, 3. If the procedure has been set, press "START/ +30 SEC."... -
Page 14: Other Specifications
CHILD LOCK SAFETY FEATURE Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting entering into the child-lock state; meanwhile, LED will display Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting that child-lock is released. -
Page 15: Troubleshooting
TROUBLE SHOOTING It is forbidden to run the unit without any food inside. It is very dangerous. According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time you need to dispose of this product, please do NOT dispose of this product with household waste. -
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE • This appliance is for household use only and is not user serviceable. • Do not open or change any parts by yourself. Please refer to a qualified electrical service department or return to the supplier if servicing is necessary. •... -
Page 17: Servicing The Appliance
• Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure that all parts are dry before storing. • Store the appliance in its box or in a clean, dry place. • Never store the appliance while it is still wet or dirty. •... -
Page 19: W A R R A N T Y And Extended Warranty
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. 2 YEAR WARRANTY 1-year retail ⵏ 1-year extended warranty upon registration* visit www.russellhobbs.co.za W A R R A N T Y AND EXTENDED WARRANTY Home of Living Brands (Pty) Limited ("Home of Living Brands") warrants to the original purchaser of this product ("the customer") that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of... - Page 20 EXCLUSIONS TO W A R R A N T Y AND EXTENDED WARRANTY Any accessories supplied with the product, including but not limited to, bowls, jugs, mills or carafes made either of glass or plastic and supplied with this appliance (hereinafter referred to as “the accessory or accessories”), is warranted to be free from material and workmanship defects for the duration of the appliance warranty.
