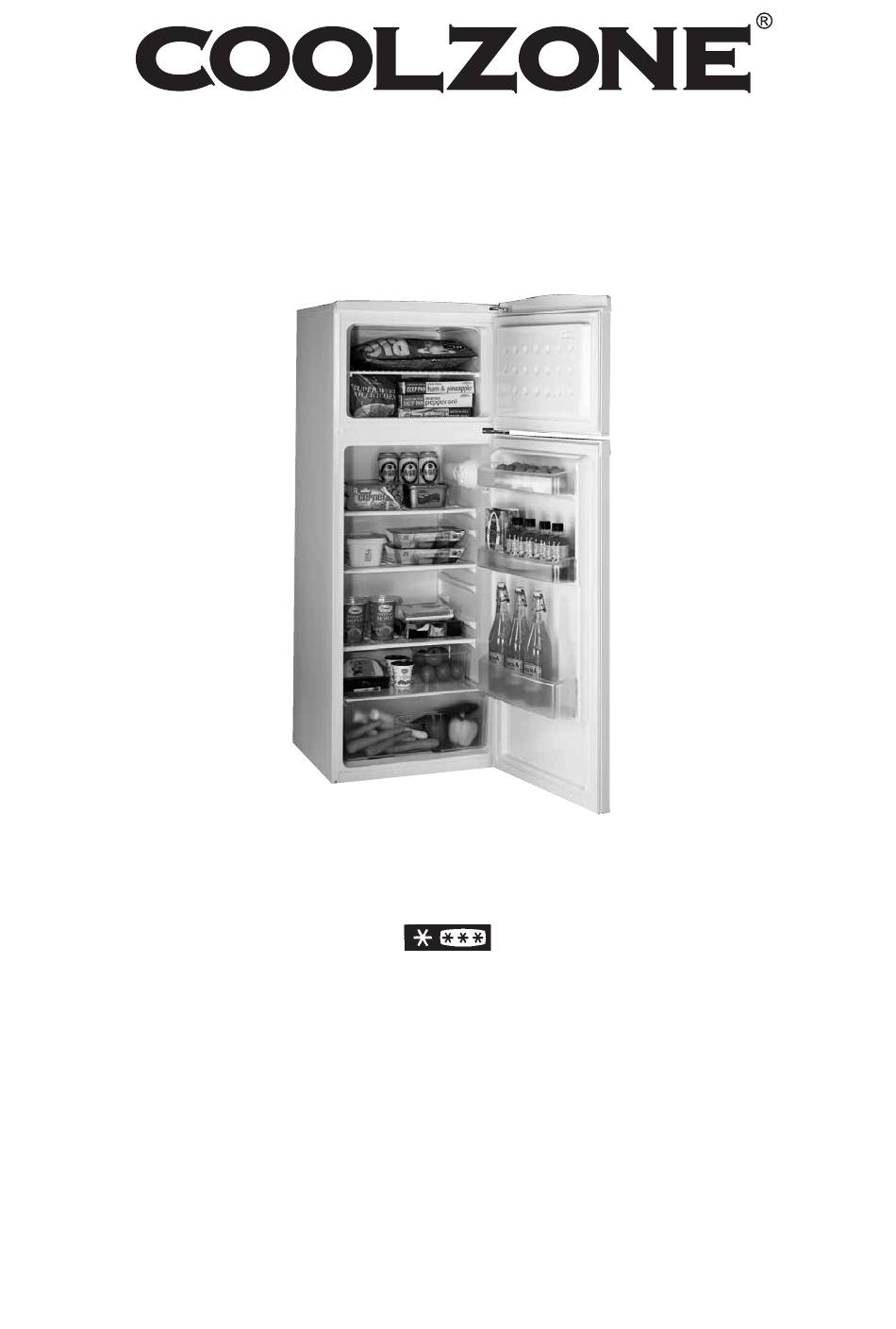

- Page 1 CZ240B Fridge freezer U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ............... . .2 Do and Don’t . -
Page 3: Parts Identification
Parts identification FIGURE 1 The parts are listed and numbered below to help identification. 1. Freezer shelf 2. Thermostat and lamp housing 3. Wire shelf 4. Salad/vegetable crisper 5. Bottle rack 6. Balcony shelf 7. Balcony shelf Door reversal FIGURE 2 FREEZER DOOR Reversing the door may make installation more convenient. -
Page 4: Installation And Controls
Door reversal (cont) FIGURE 4 Gently lever the trim plates out of their recesses in the appliance housing (Figure 4). TRIM PLATES Unscrew the hinge pivot pin (Figure 5). Unscrew the hinge from the housing (Figure 6), turn it round and using two screws removed earlier, refix it to the opposite corner of the appliance. - Page 5 Installation and controls (cont) Temperature control – fridge The freezer requires space around the casing for efficient cooling and operation. The minimum clearances are shown in Figure 9. The temperature of the fridge is best maintained around 0°C to + 5°C. Avoid setting the thermostat The freezer must be installed on a firm flat and too high otherwise this may reduce the temperature level surface for it to work quietly and efficiently.
-
Page 6: Using The Freezer
Using the freezer Precautions The freezer is capable of producing very cold the bottles may break when frozen. Drinks in temperatures which may cause injury if safety PEP plastic bottles must not be frozen. precautions are not observed: O O The freezer must only be used for the storing of edible foodstuffs. - Page 7 Maintenance and cleaning (cont) Drainage channel and drip tray Freezer - defrosting Water collects in the drainage channel on the back It is recommended to clean and wipe out the wall. It then passes to a drip tray positioned above freezer after any spillage inside or outside the the compressor from which it evaporates.
-
Page 8: Troubleshooting
Troubleshooting Problem Possible cause Remedy The lamp does not light The lamp has blown Replace the lamp with same type: 15W, SES, E14 There is water at the bottom Drainage hole and/or pipe blocked Clean/unblock hole and of the fridge pipe The motor is on for long Door opened too often... -
Page 9: Specification
Specification Total gross volume (litres) Dimensions: HxWxD mm 1450x540x600 Freezer net volume (litres) Refrigerator net volume (litres) Freezing capacity (kg/24h) Power supply 230V, 50Hz Nominal daily consumption (kWh) 1.08 Energy efficiency class Refrigerant R134a Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be... - Page 10 We continuously try to improve our products for the benefit of our customers. CZ26108/050308 For this reason we reserve the right to make changes to any product at any time, without notice.
