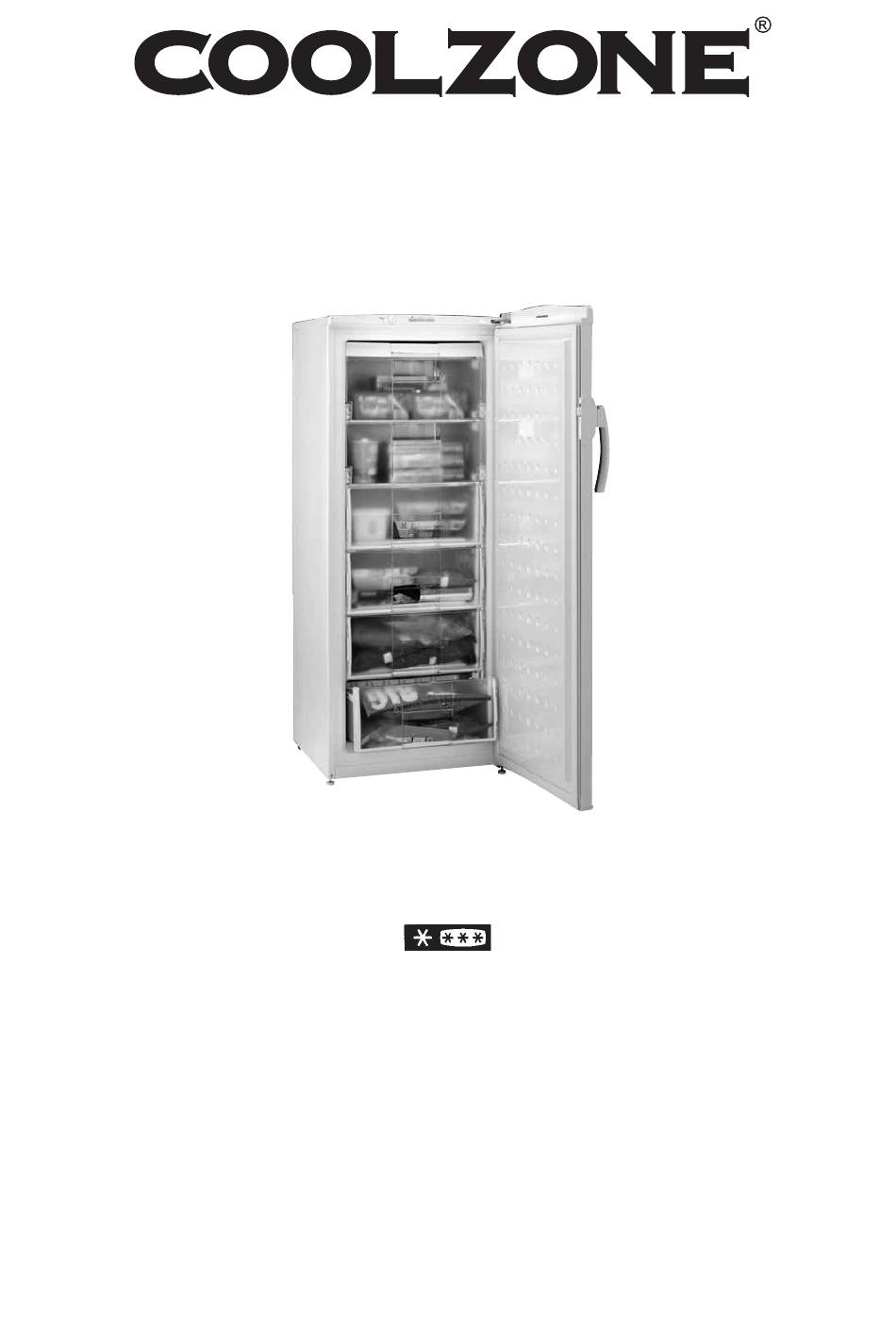

- Page 1 CZ210 Freezer U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ..........2 Do and Don’t . -
Page 3: Parts Identification
Parts identification FIGURE 1 The parts are listed and numbered below to help identification. 1. Thermostat and control panel 2. Ice cube tray and ice bank 3. Fast freeze compartments 4. Storage drawers Installation and controls Important Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your home. - Page 4 Installation and controls (cont) Switching on When fast freeze is switched ON, the yellow light will be illuminated. Plug the appliance into a nearby power socket and To cancel fast freeze, press the button and release switch on. The freezer control panel (Figure 4) is positioned inside the door.
-
Page 5: Using The Freezer
Using the freezer Precautions The freezer is capable of producing very cold temperatures which may cause injury if safety precautions are not observed: Caution: to avoid ice burns, do not touch ice with bare skin. O O Do not attempt to freeze carbonated drinks such as fizzy pop, mineral water, champagne, etc. as the bottles may break when frozen. -
Page 6: Maintenance And Cleaning
Maintenance and cleaning Important The freezer must be turned off at the mains before maintenance or cleaning. General cleaning It is recommended to clean and wipe out the freezer regularly or after any spillage inside or outside the appliance. Use a teaspoonful of bicarbonate of soda diluted in a pint of warm water. Wipe the internal surfaces and leave to dry before reloading food. -
Page 7: Fuse And Mains Plug Replacement
Fuse and mains plug replacement This product is supplied with a moulded plug FIGURE 5 which contains a 13A fuse. If you are simply FUSE COVER replacing the fuse, you must use a 13A fuse which has been approved by ASTA to BS1362 (Figure 5). If the plug does not fit the socket or becomes damaged, a new plug must be fitted. -
Page 8: Specification
Specification Total gross volume (litres) Dimensions: HxWxD mm 1360x540x600 Total net volume (litres) Power supply 220/240V, 50Hz Power consumption (Watts) Nominal daily consumption (kWh) 0.92 Freezing capacity (kg/24h) Energy efficiency class Refrigerant R600a Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be...
