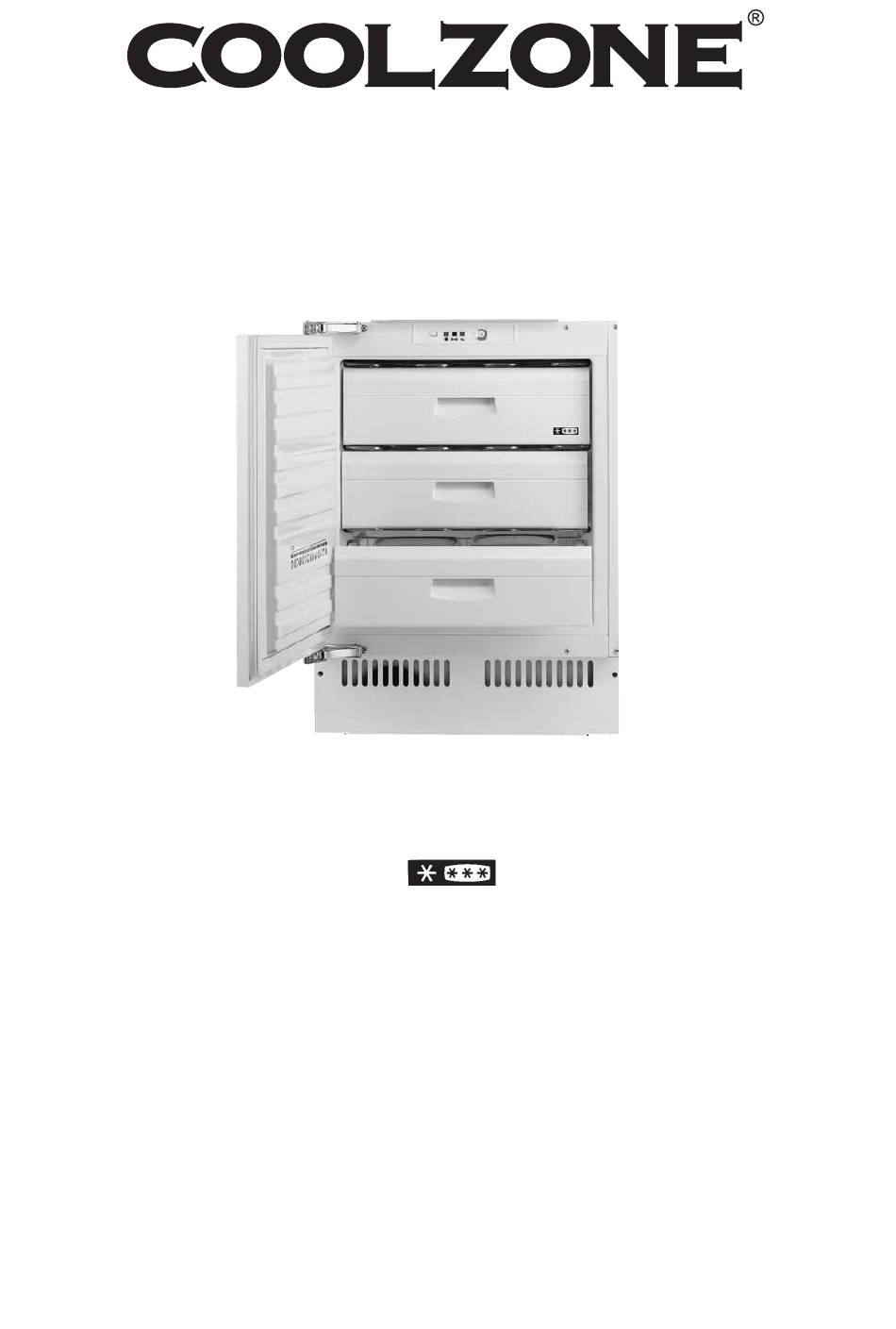

- Page 1 CZ51038IFZ Integrated Freezer U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product...
-
Page 2: Table Of Contents
Page contents Before use ............... . .2 Do and don’t . -
Page 3: Check The Contents
Check the contents Check the following contents are included with the product and and inspect the casing for any damage. If there is any need, contact your retailer from whom you purchased the product. Installation kit Freezer 1x unit complete with fitted door and hinges 3 x baskets 1x pair of white cabinet brackets Ice scraper... -
Page 4: Door Reversal
Door reversal If you are planning to install the freezer side-by-side with the fridge (CZ51037IFR) one of the doors must be changed so both doors open towards the middle (Figure 2). Changing the door opening might also be more convenient to fit in with the design of the kitchen. 1. -
Page 5: Fitting The Door Facia Panel
Fitting the door facia panel 1. Fit the door facia clips (with the door height adjuster screw at the top) into the holes provided in the door (Figure 6). 2. Fit the plain door clips to the bottom of the door with two screws (Figure 7). 3. -
Page 6: Installing Appliance Between Kitchen Units
Installing appliance between kitchen units 1. Plug the appliance(s) into the mains supply and slide them in the space between the kitchen units (Figure 10). 2. Adjust the feet so the top bracket of the appliance touches the underside of the worktop, is level and aligns with the adjacent cupboards (inset Figure 10). -
Page 7: Controls
ONLY APPLICABLE WHEN PARTNERING FRIDGE WITH FREEZER FIGURE 15 If the freezer is installed with the matching fridge, use the link bracket to join the two appliances together (Figure 15). LINK BRACKET Controls A Super Freeze Switch D Power ON indicator light B Super Freeze indicator light (yellow) E Temperature control C Temperature warning indicator light... -
Page 8: Using The Freezer
Using the freezer Precautions Before use, allow the appliance to stand for a few The freezer is capable of producing very cold hours to allow the cooling gases to stabilise after temperatures which may cause injury if safety installation. precautions are not observed: O Do not attempt to freeze carbonated drinks such The internal temperature can be adjusted by means of the thermostat control. -
Page 9: Maintenance And Cleaning
Maintenance and cleaning Important The freezer must be turned off at the mains before maintaining or cleaning. Defrosting the freezer When all traces of ice have been removed from the interior of the freezer, use a teaspoonful of It is recommended to clean and wipe out the bicarbonate of soda diluted in a pint of warm water freezer after any spillage inside or outside the to wipe the internal surfaces and shelving. -
Page 10: Troubleshooting
Troubleshooting Problem Possible cause Remedy No operation of unit Faulty plug, fuse or wiring Check fuse, plug or wiring Abnormal noise and vibration Appliance not level Adjust feet to level the unit Temperature in freezer not No power Check fuse in plug cold enough Door is open for too long Do not open door... -
Page 11: Fuse And Mains Plug Replacement
Fuse and mains plug replacement This product is supplied with a moulded plug which FIGURE 16 contains a 13A fuse. If you are simply replacing the FUSE COVER fuse, you must use a 13A fuse which has been approved by ASTA to BS1362 (Figure 16). NOTE: Never use without fuse cover fitted. -
Page 12: Safety Measures
Specification Total gross capacity (litres) Net capacity (litres) Dimensions: HxWxD mm 816–868 x 596 x 550 Power supply 220/240V, 50Hz Nominal yearly consumption (kWh/year) Energy efficiency class Product specification may vary without prior notice. Safety measures Never try to repair the appliance or the electrical Disposal of old fridge or freezer parts yourself.
