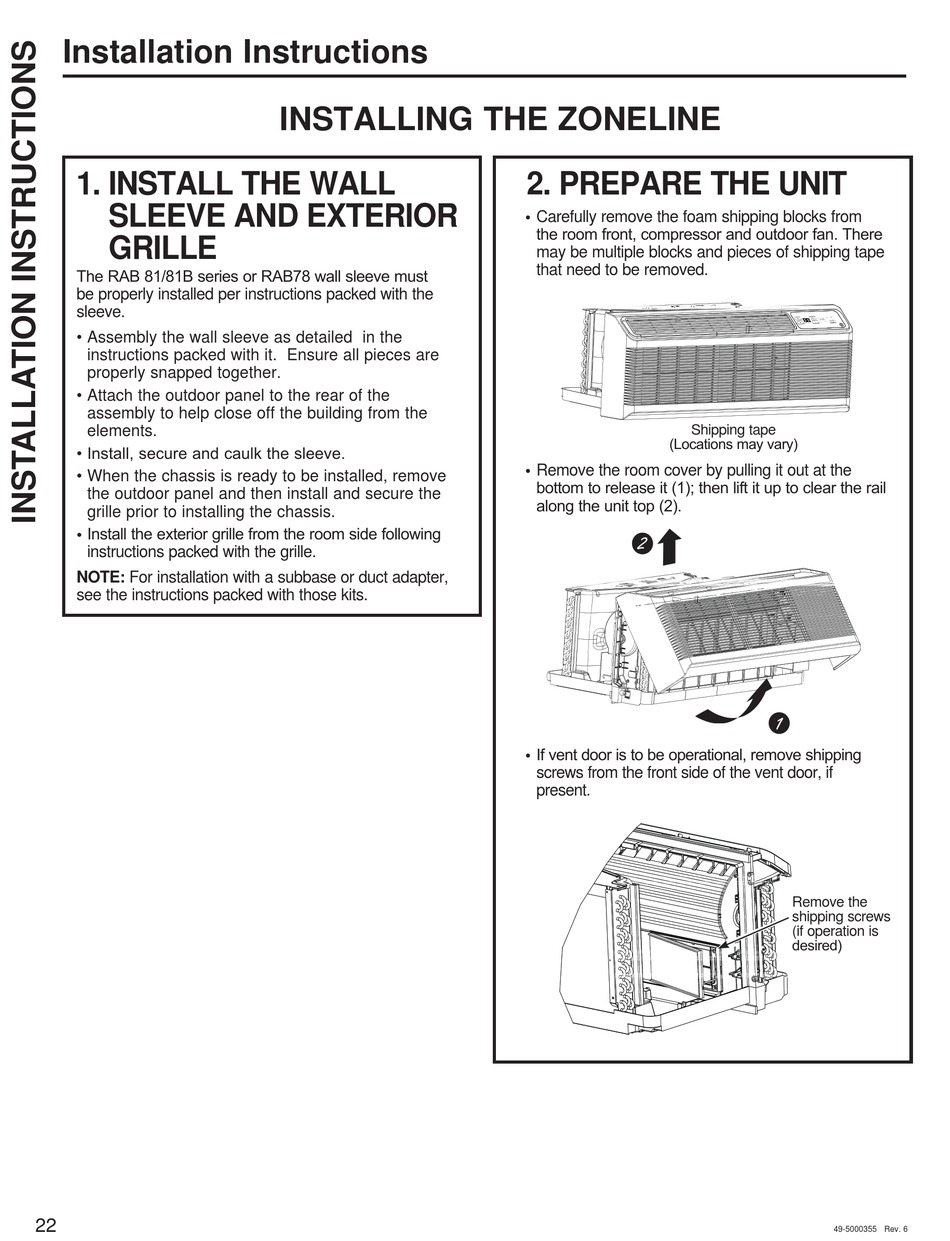

Installation Instructions
1. INSTALL THE WALL
SLEEVE AND EXTERIOR
GRILLE
be properly installed per instructions packed with the
sleeve.
• Assembly the wall sleeve as detailed in the
instructions packed with it. Ensure all pieces are
properly snapped together.
• Attach the outdoor panel to the rear of the
assembly to help close off the building from the
elements.
• When the chassis is ready to be installed, remove
the outdoor panel and then install and secure the
grille prior to installing the chassis.
•
instructions packed with the grille.
NOTE: For installation with a subbase or duct adapter,
see the instructions packed with those kits.
22

INSTALLING THE ZONELINE

2. PREPARE THE UNIT
• Carefully remove the foam shipping blocks from
may be multiple blocks and pieces of shipping tape
that need to be removed.
Shipping tape
• Remove the room cover by pulling it out at the
•
screws from the front side of the vent door, if
present.
Remove the
shipping screws
(if operation is
